1, 2 and 3 Digit Codes: 59

CODE NAME
Code No. 59 Occurrence of abnormal vibration

DESCRIPTION
When periodical rotating speed variation of more than 50 RPM's is generated in pulse generator A output continuously, it is assumed as occurrence of abnormal vibration, and diagnostic trouble code No. 59 is output.

PROBABLE CAUSE OF TROUBLE
- Noise generated
- Deteriorated automatic transmission fluid
- Occurrence of abnormal vibration

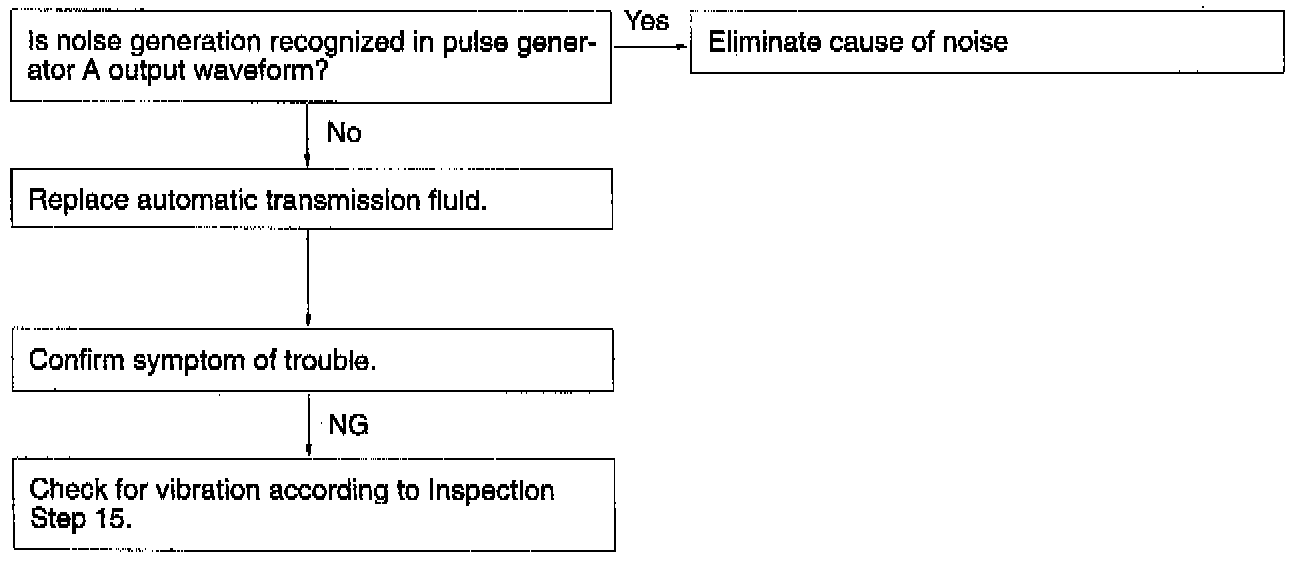

DIAGNOSTIC CHART
