Engine Roll Stopper

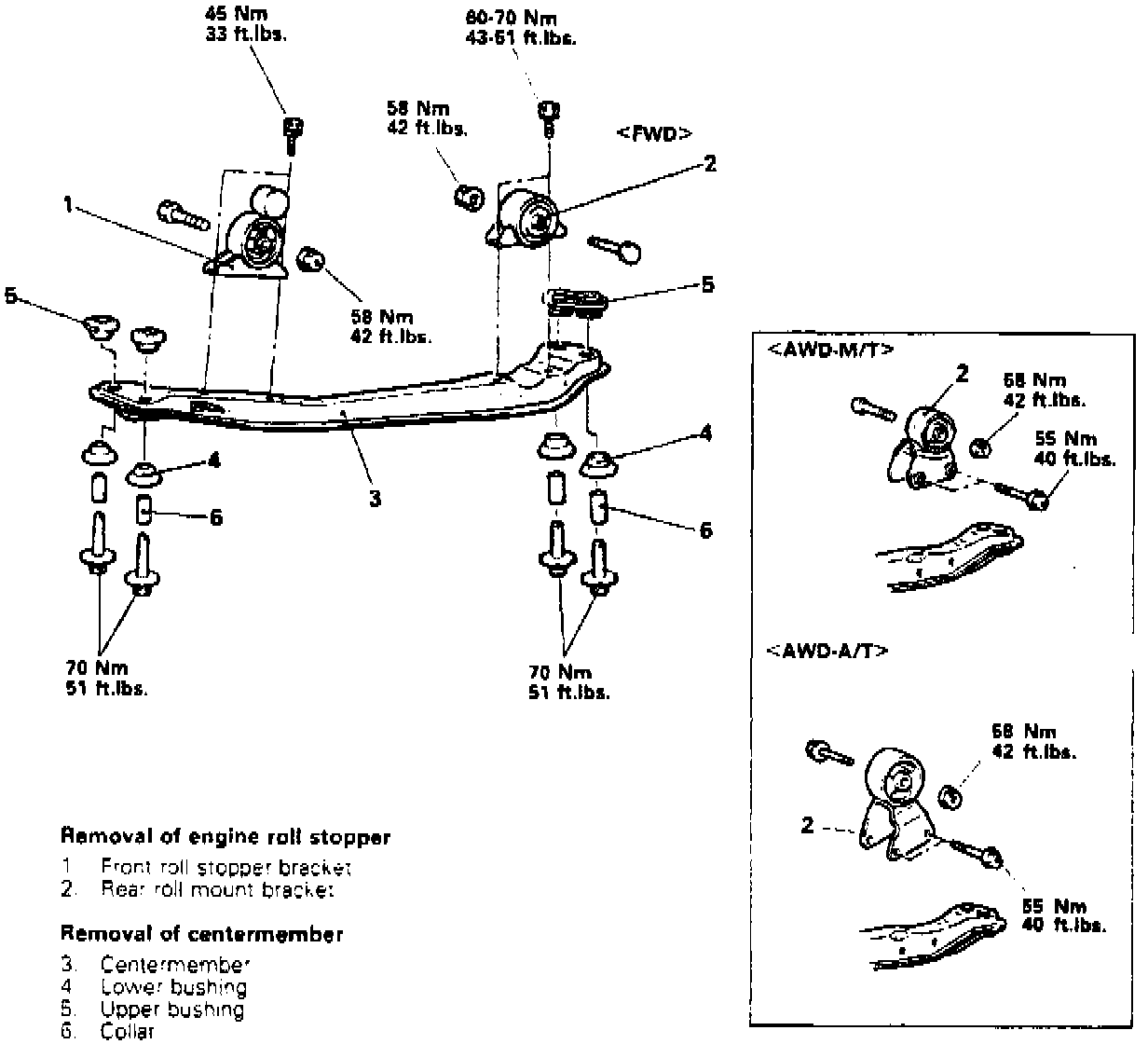

Fig. 4 Engine Roll Stopper & Center Member:

ENGINE ROLL STOPPER REPLACE
Replace engine roll stoppers in numbered sequence shown in Fig. 4, noting following:
1. Check insulators and brackets for damage.
2. Install front roll stopper assembly so that end fitted with round hole faces front of vehicle.
