18 A/C Load Signal System

PROBLEM
Air conditioning load signal system

DESCRIPTION
When the air conditioning load signal system malfunctions, a defective air conditioning system is suspected.

PROBABLE CAUSE OF TROUBLE
- Defective closed throttle position switch
- Defective connector
- Defective transaxle control module

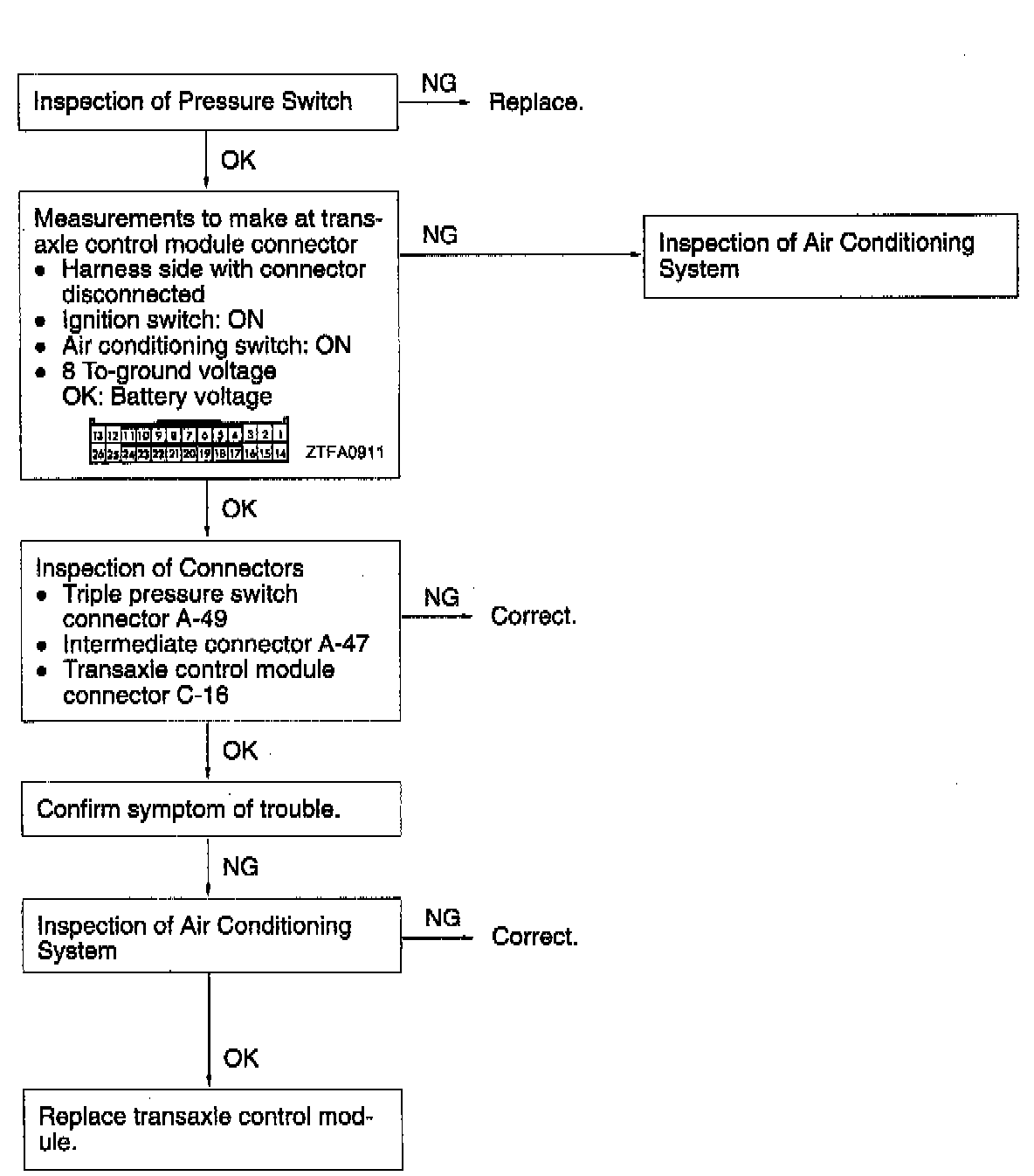

DIAGNOSTIC CHART
