19 Vehicle Speed Sensor System

PROBLEM
Vehicle speed reed switch system

DESCRIPTION
When the vehicle speed reed switch malfunctions, a defective vehicle speed reed switch circuit is suspected

PROBABLE CAUSE OF TROUBLE
- Defective vehicle speed reed switch
- Defective connector
- Defective transaxle control module

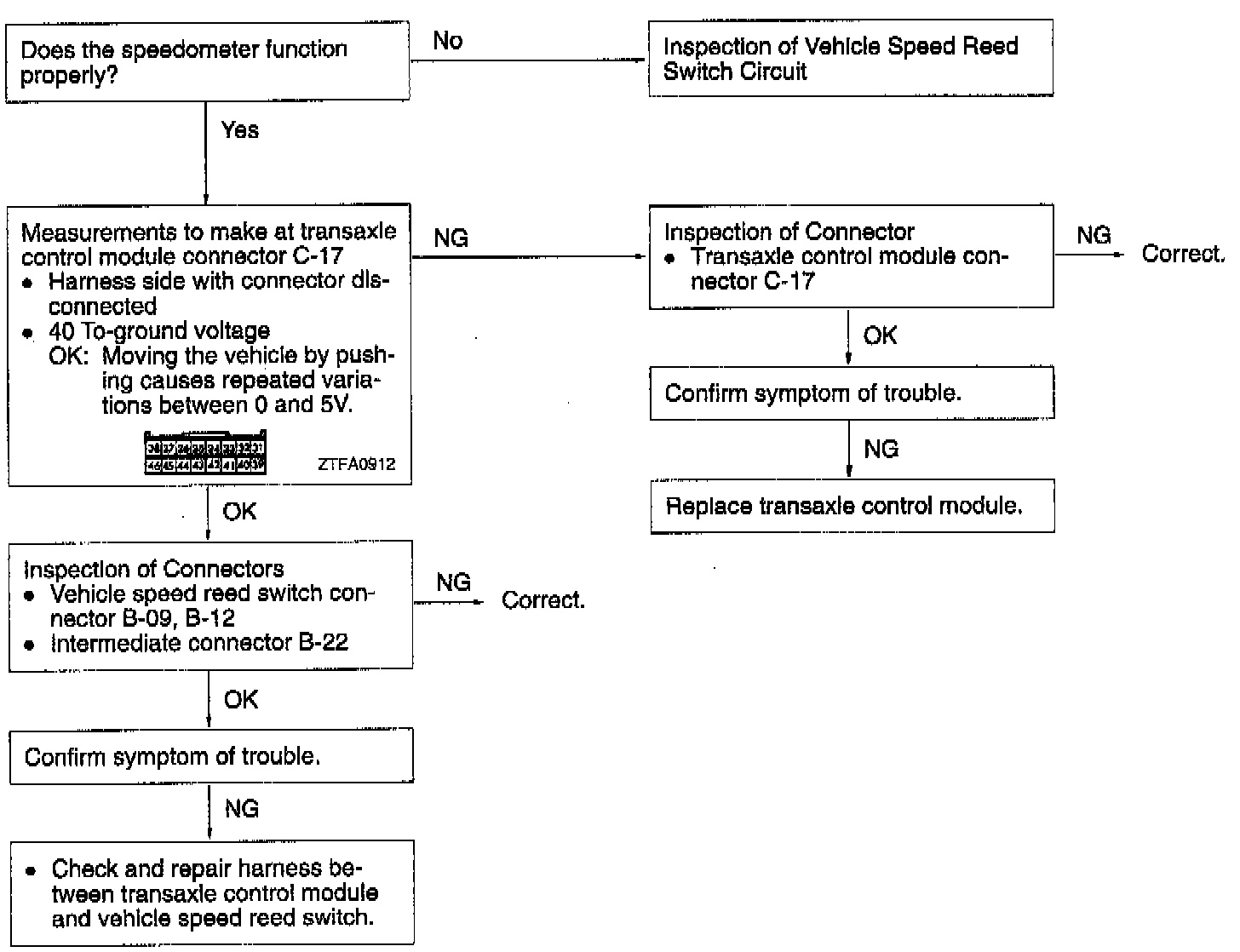

DIAGNOSTIC CHART
