1, 2 and 3 Digit Codes: 15

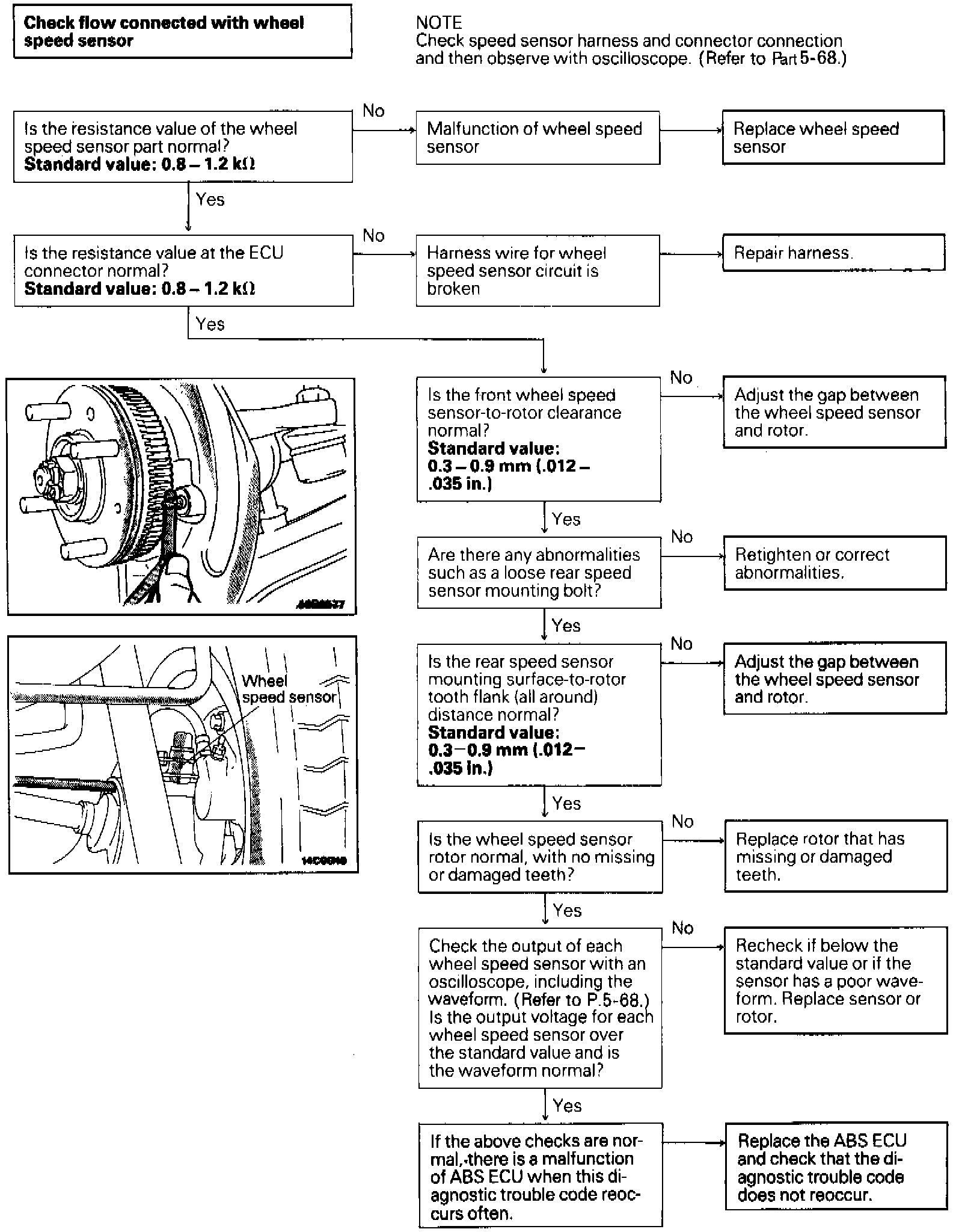

Fig 36 Code 15: ABS Chart E2, Output Abnormality Of Wheel Speed Sensor(Part 1 Of 2):

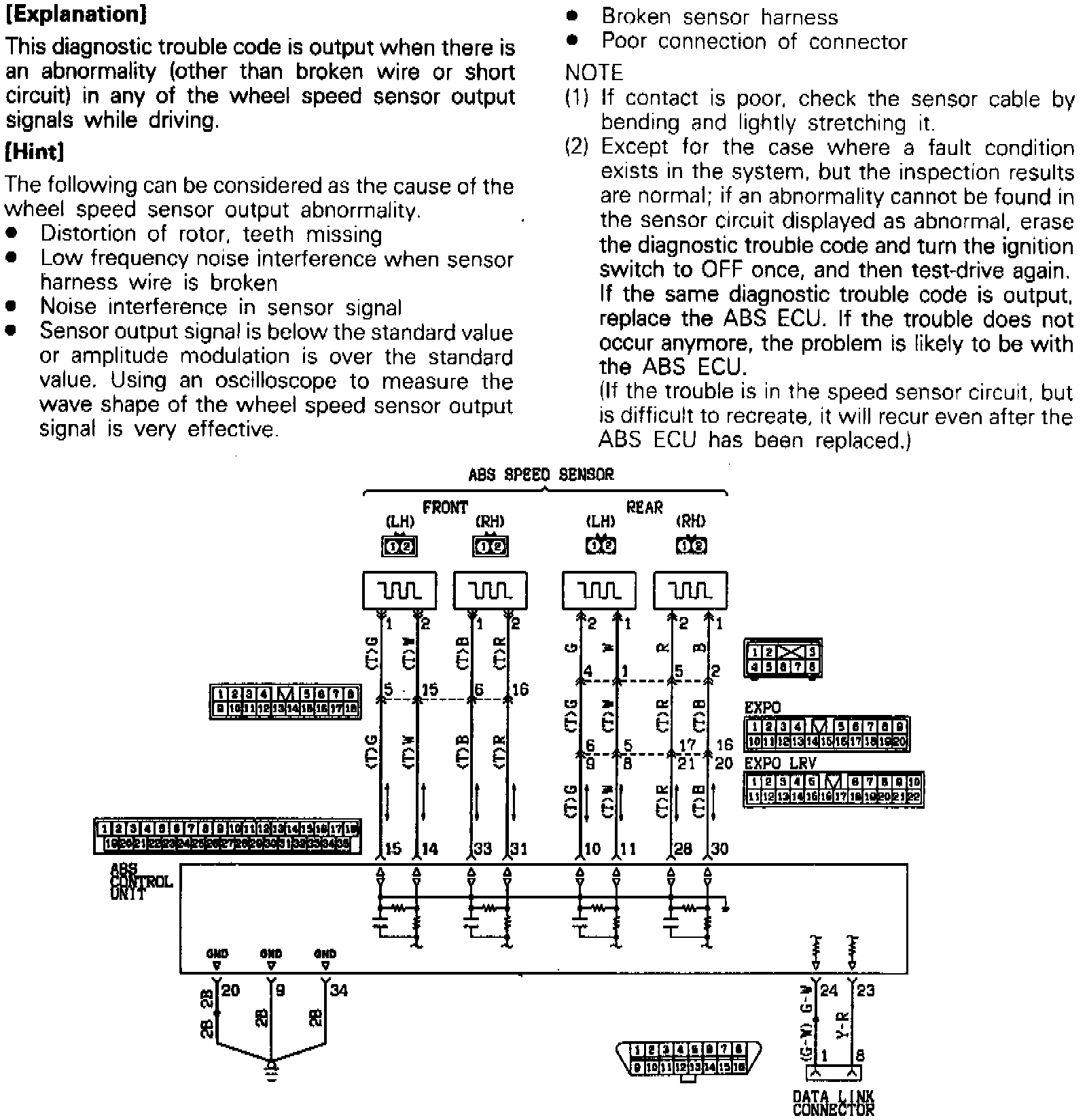

Fig 36 Code 15: ABS Chart E2, Output Abnormality Of Wheel Speed Sensor (Part 2 Of 2):
