Home >> Eagle >> 1996 >> Summit Wagon AWD L4-2350cc 2.4L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> 1, 2 and 3 Digit Codes >> 51

1, 2 and 3 Digit Codes: 51

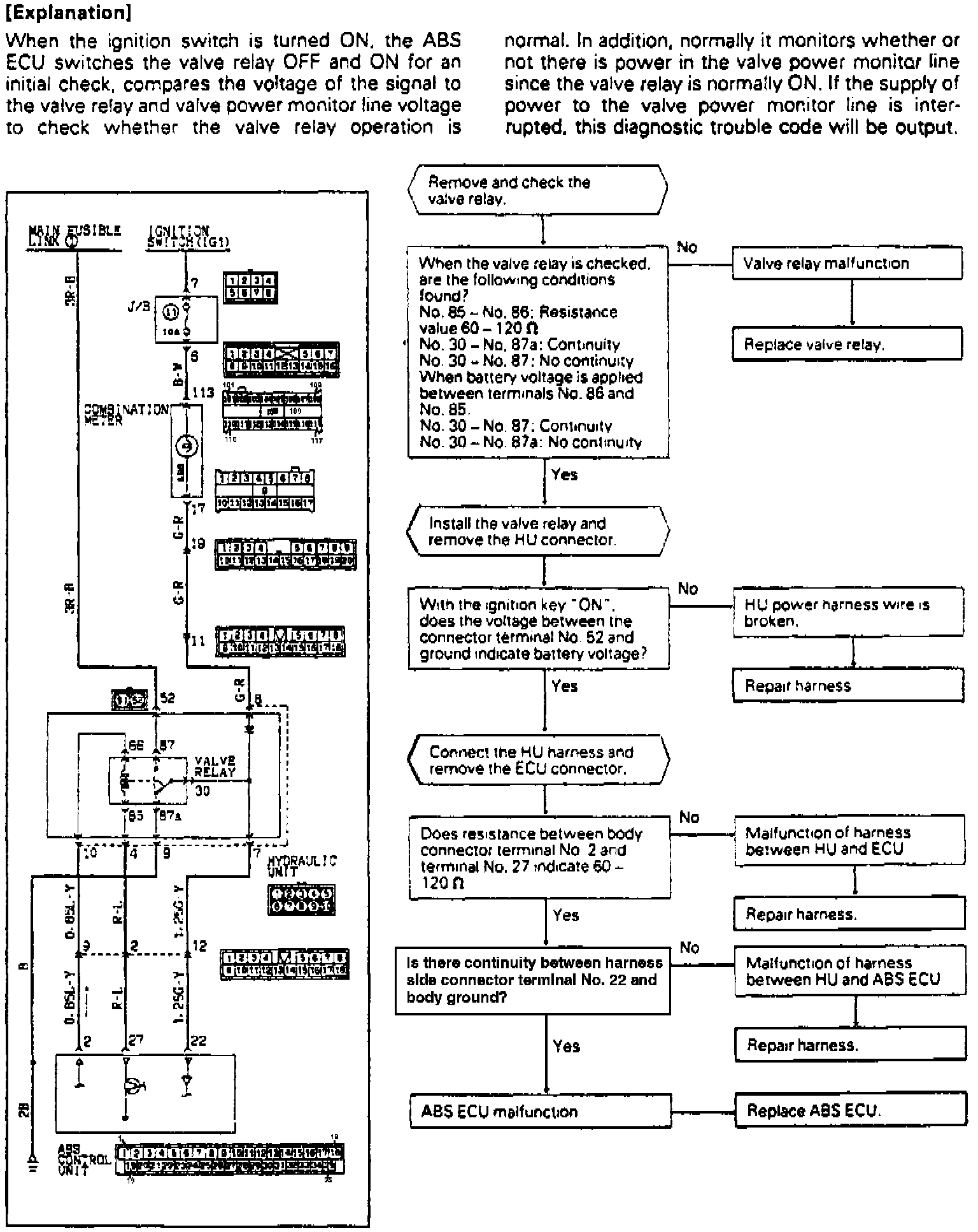

Fig 40 Code 51: ABS Chart E6, Abnormality Of Valve Relay Drive Circuit.:
