1, 2 and 3 Digit Codes: 55

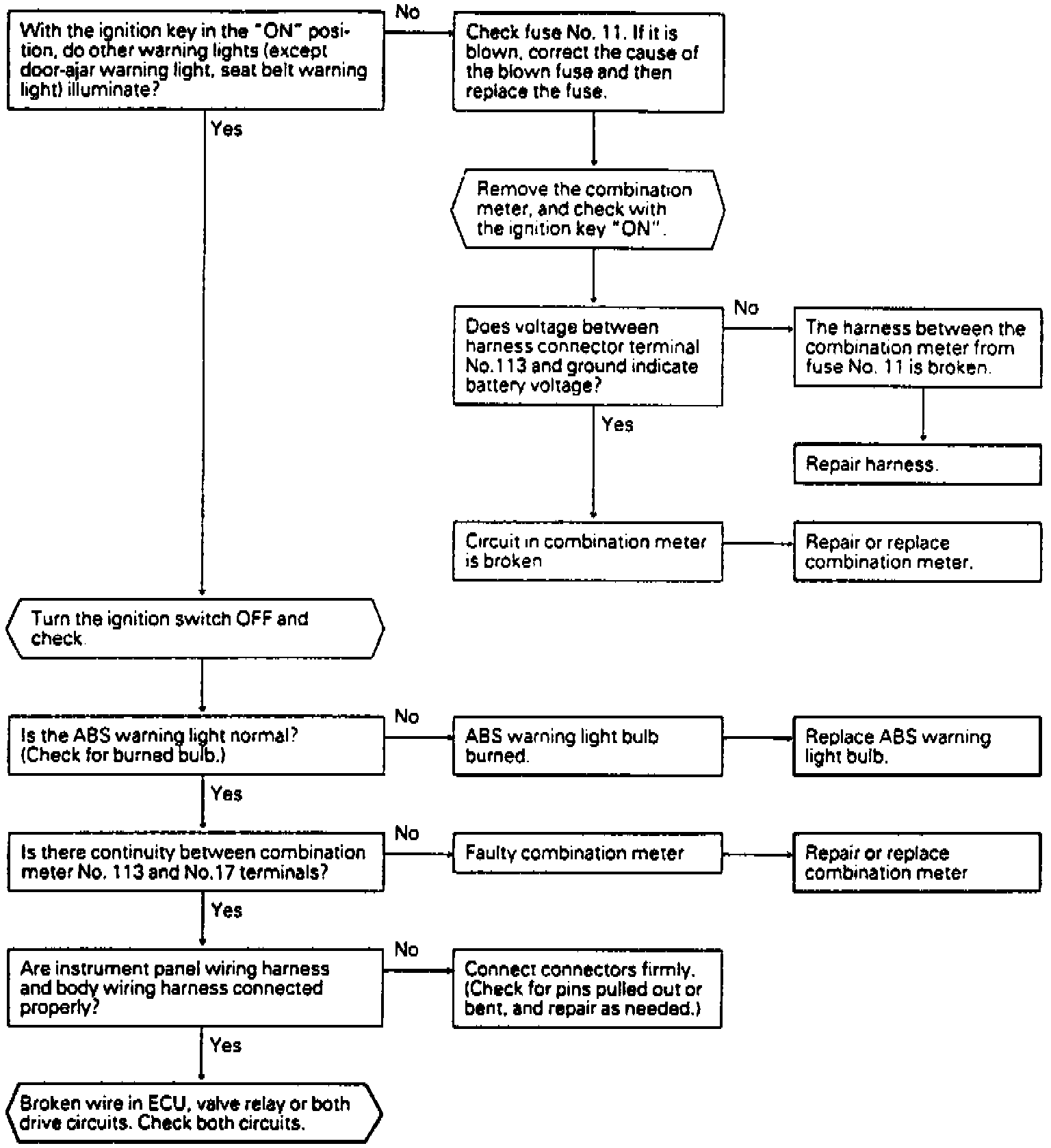

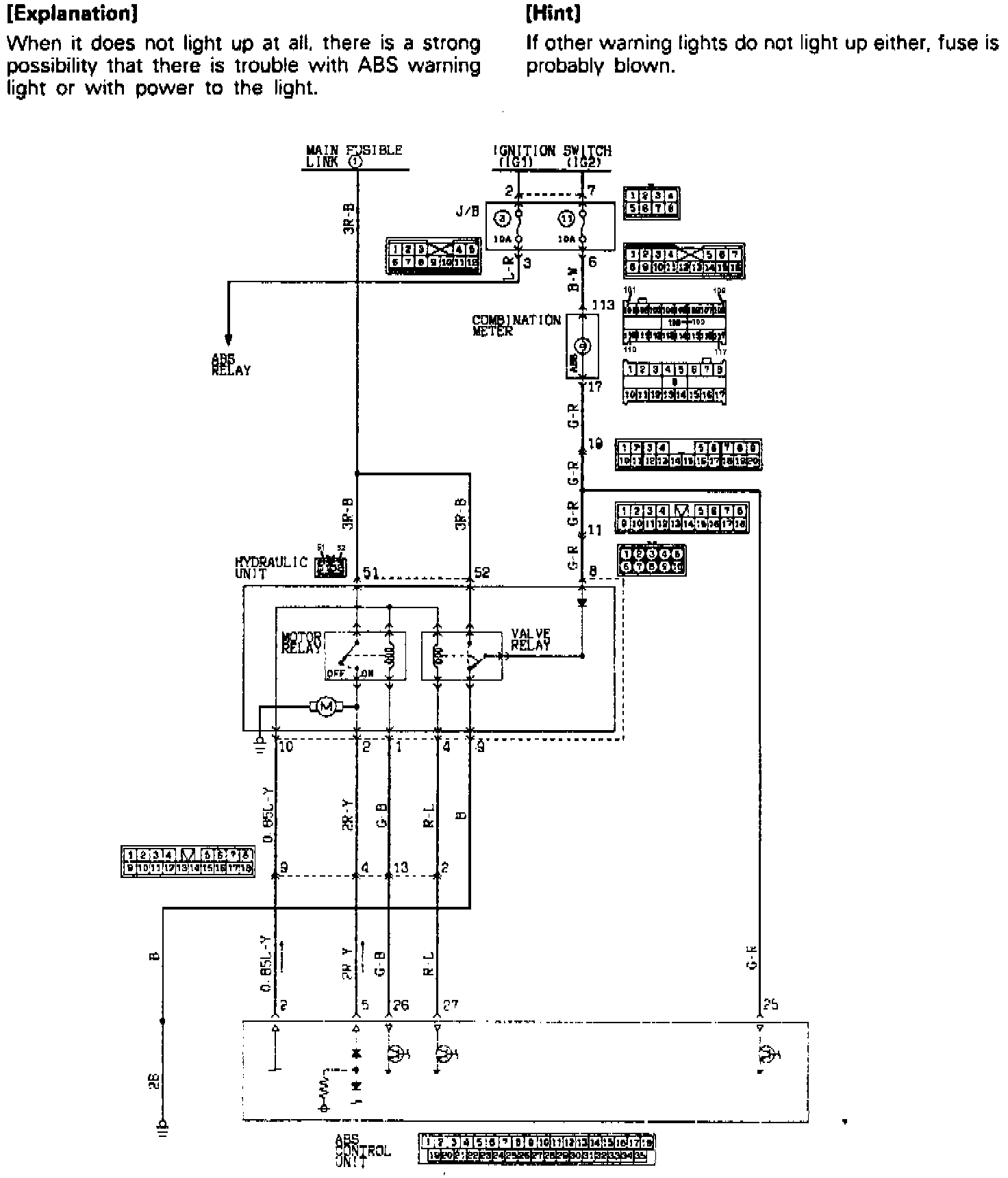

Fig 42 Code 55: ABS Chart A, ABS Warning Light Dose Not Light At All (Part 1 Of 3):

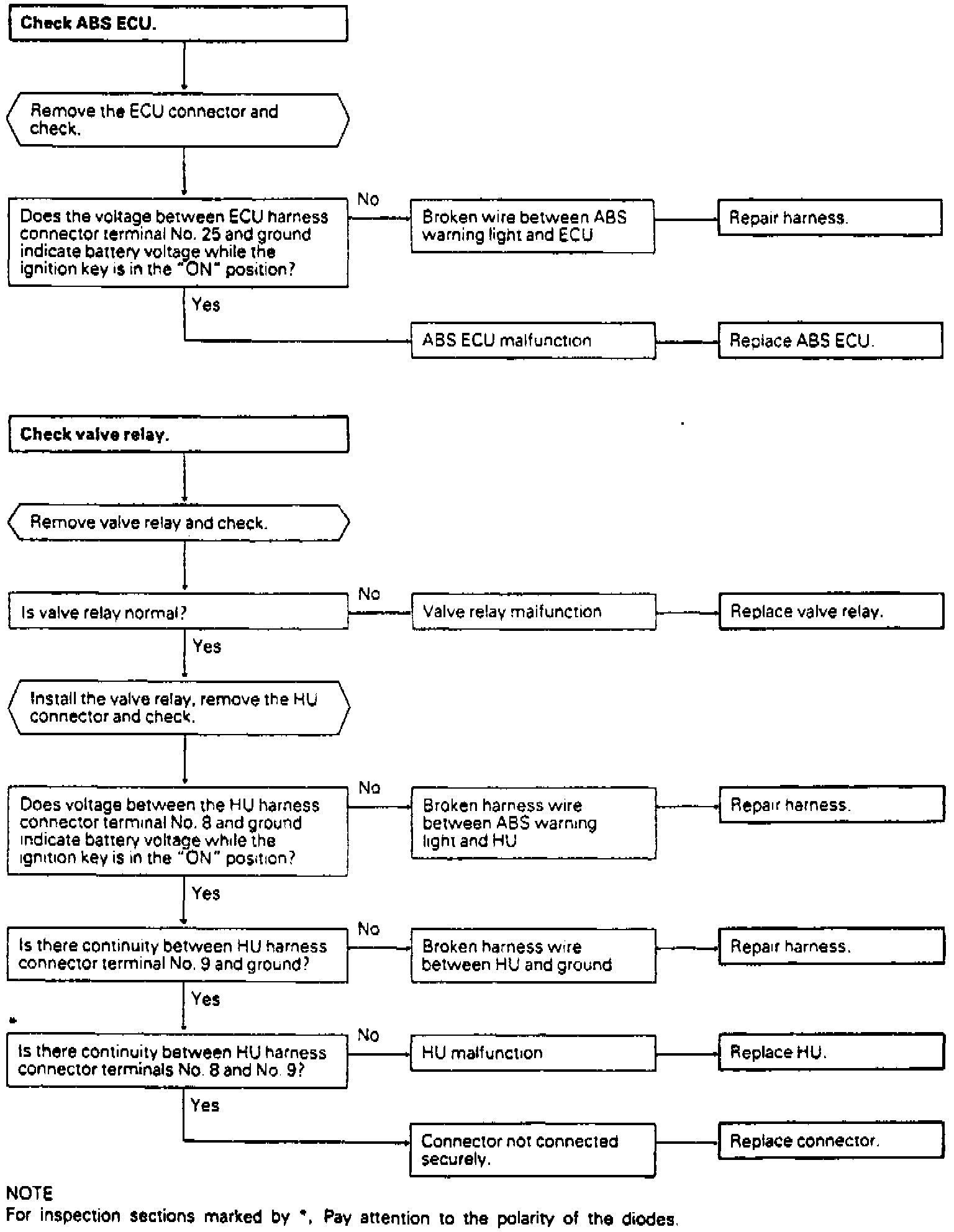

Fig 42 Code 55: ABS Chart A, ABS Warning Light Dose Not Light At All (Part 2 Of 3):

Fig 42 Code 55: ABS Chart A, ABS Warning Light Does Not Light At All (Part 3 Of 3):

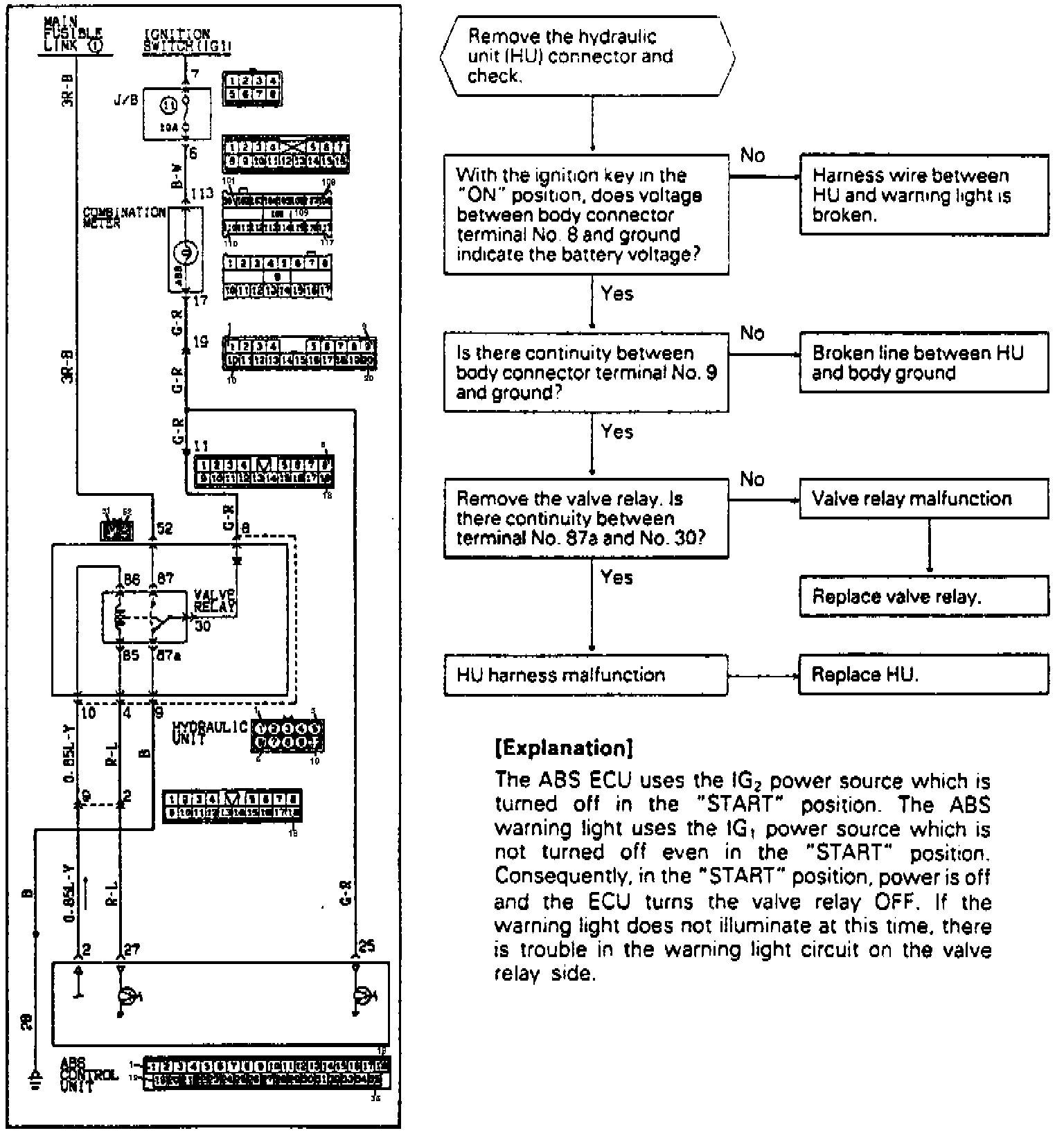

Fig 45 Code 55: ABS Chart C, ABS Warning Light Does Not Illuminate When Ignition Key Is In Start Position:

Fig 46 Code 55: ABS Chart D, ABS Warning Light Blinks Once After Ignition Key Is Turned To On Position Illuminates In Start Position And Blinks Once Again When Turned To On Position:

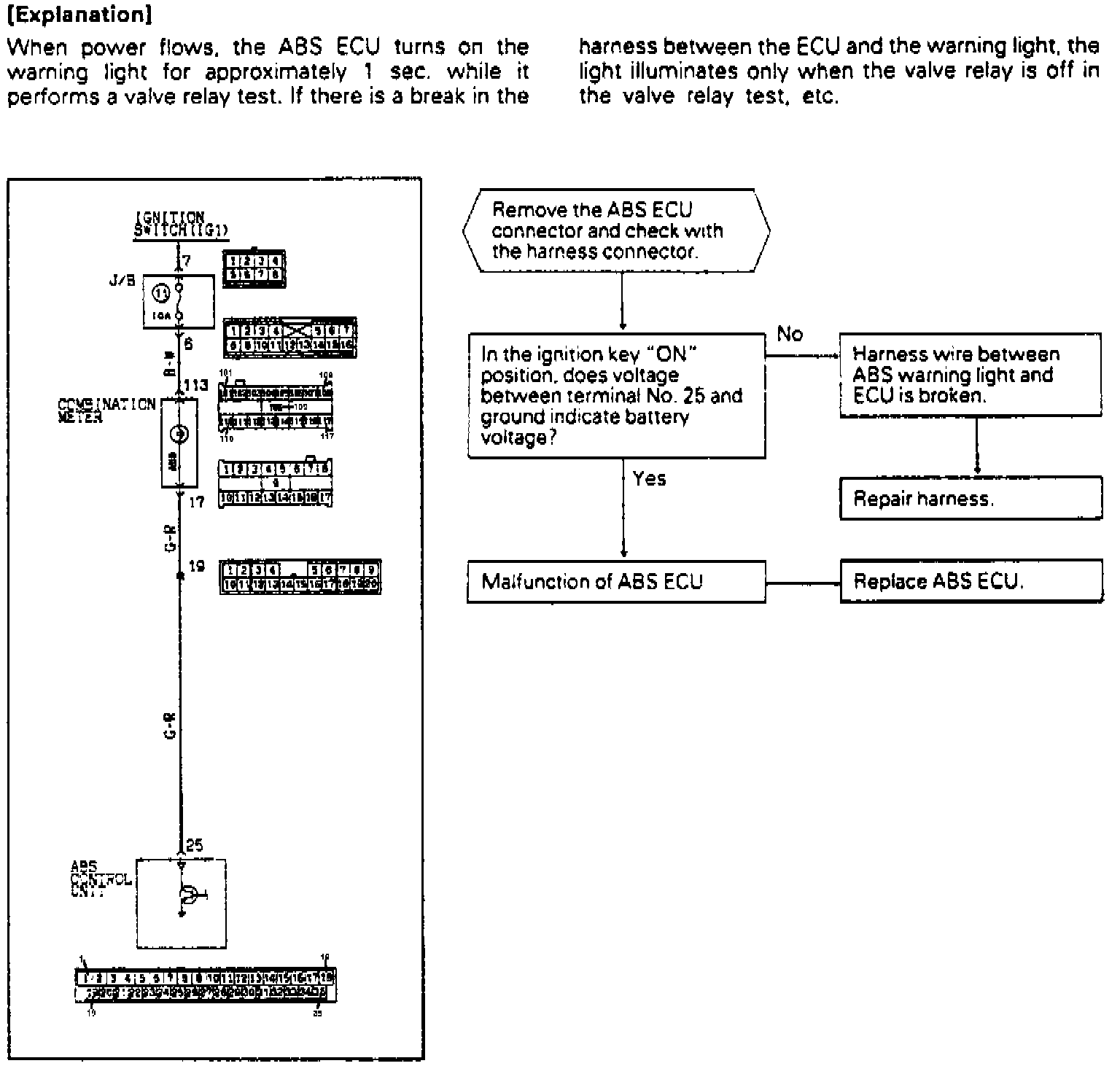

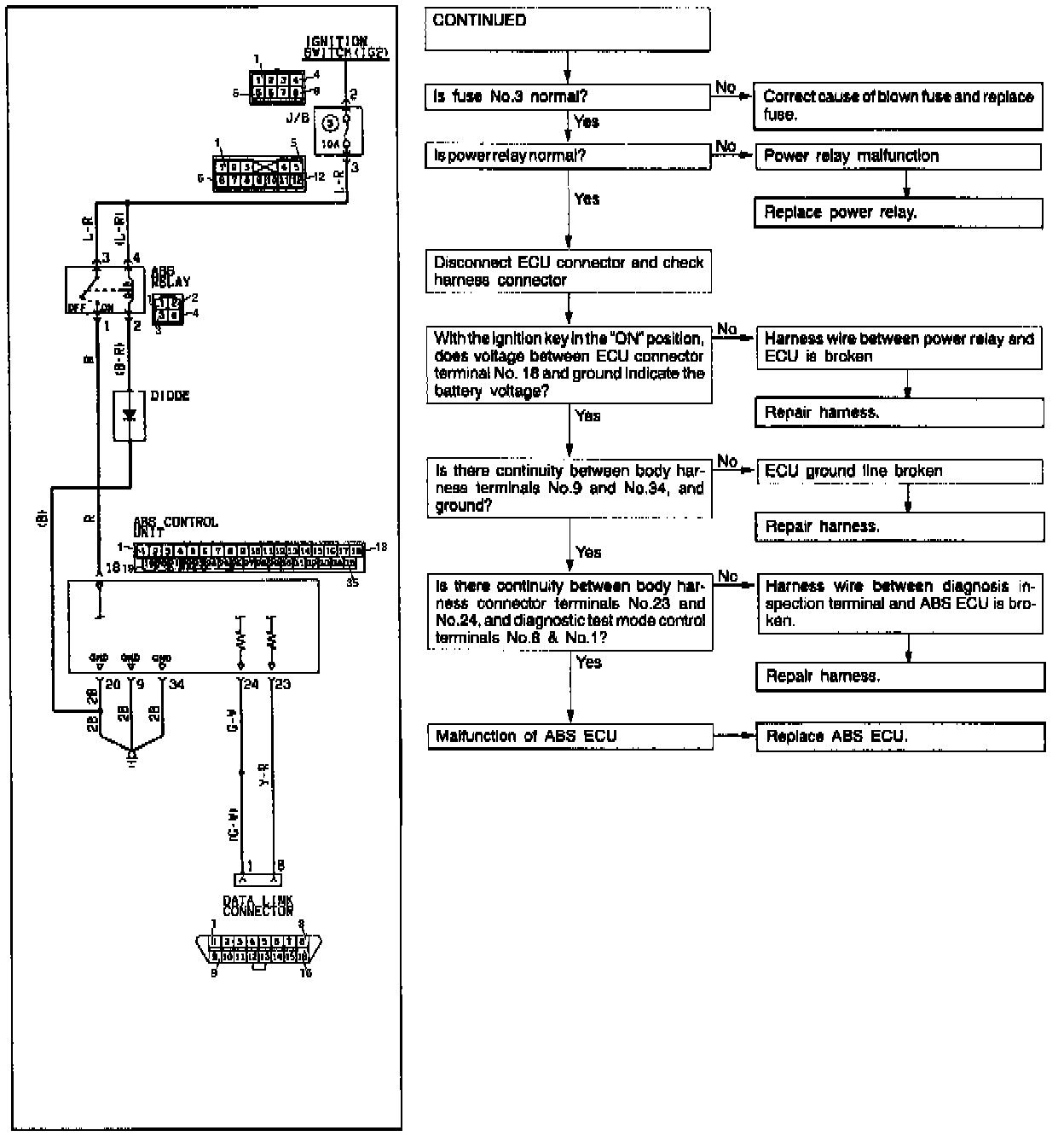

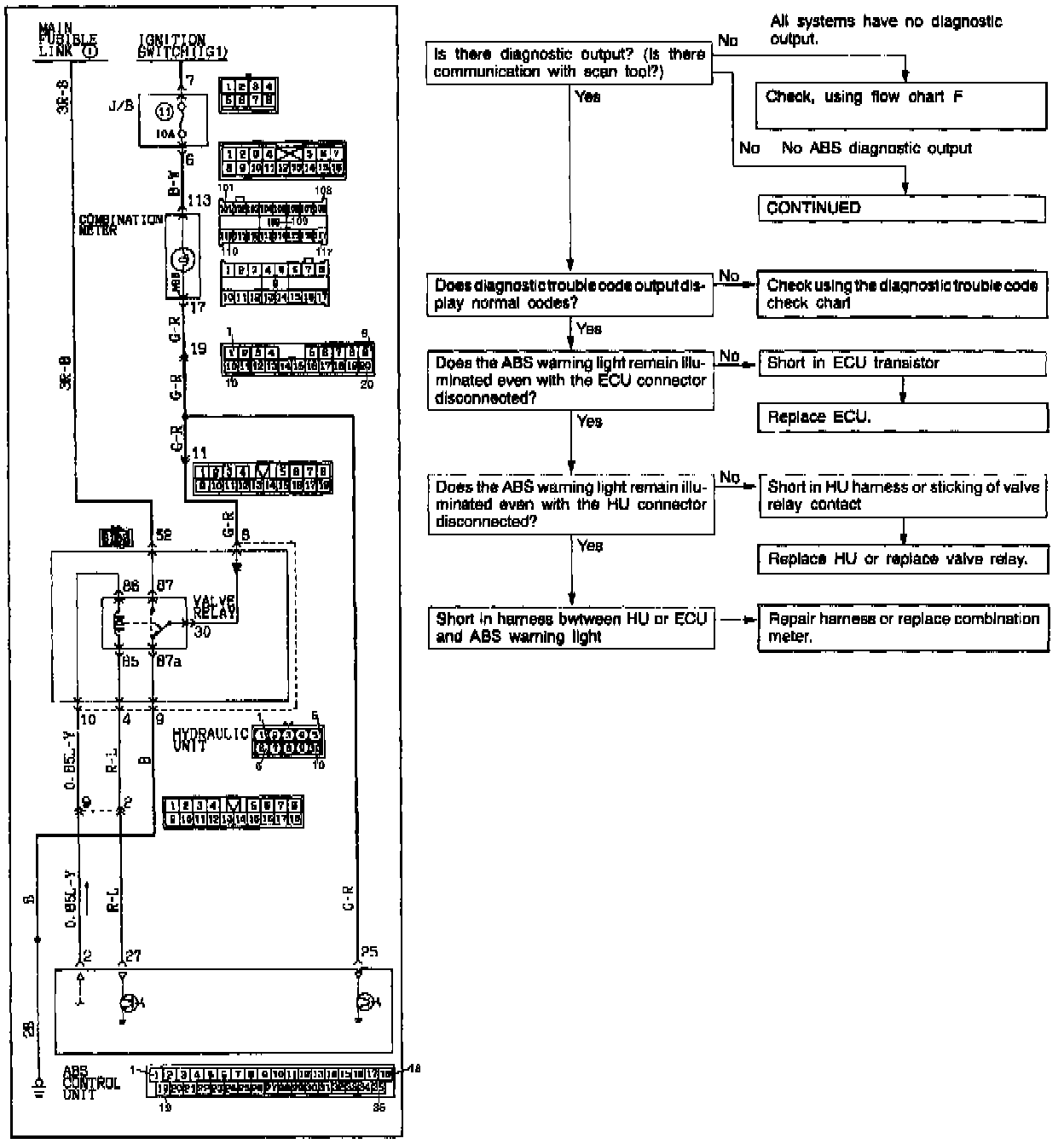

Fig 44 Code 55: ABS Chart B, ABS Warning Light Stays On When Ignition Key Is In On Position (Part 1 Of 3):

Fig 44 Code 55: ABS Chart B, ABS Warning Light Stays On When Ignition Key Is In On Position (Part 2 Of 3):

Fig 44 Code 55: ABS Chart B, ABS Warning Light Stays On When Ignition Key Is In On Position (Part 3 Of 3):

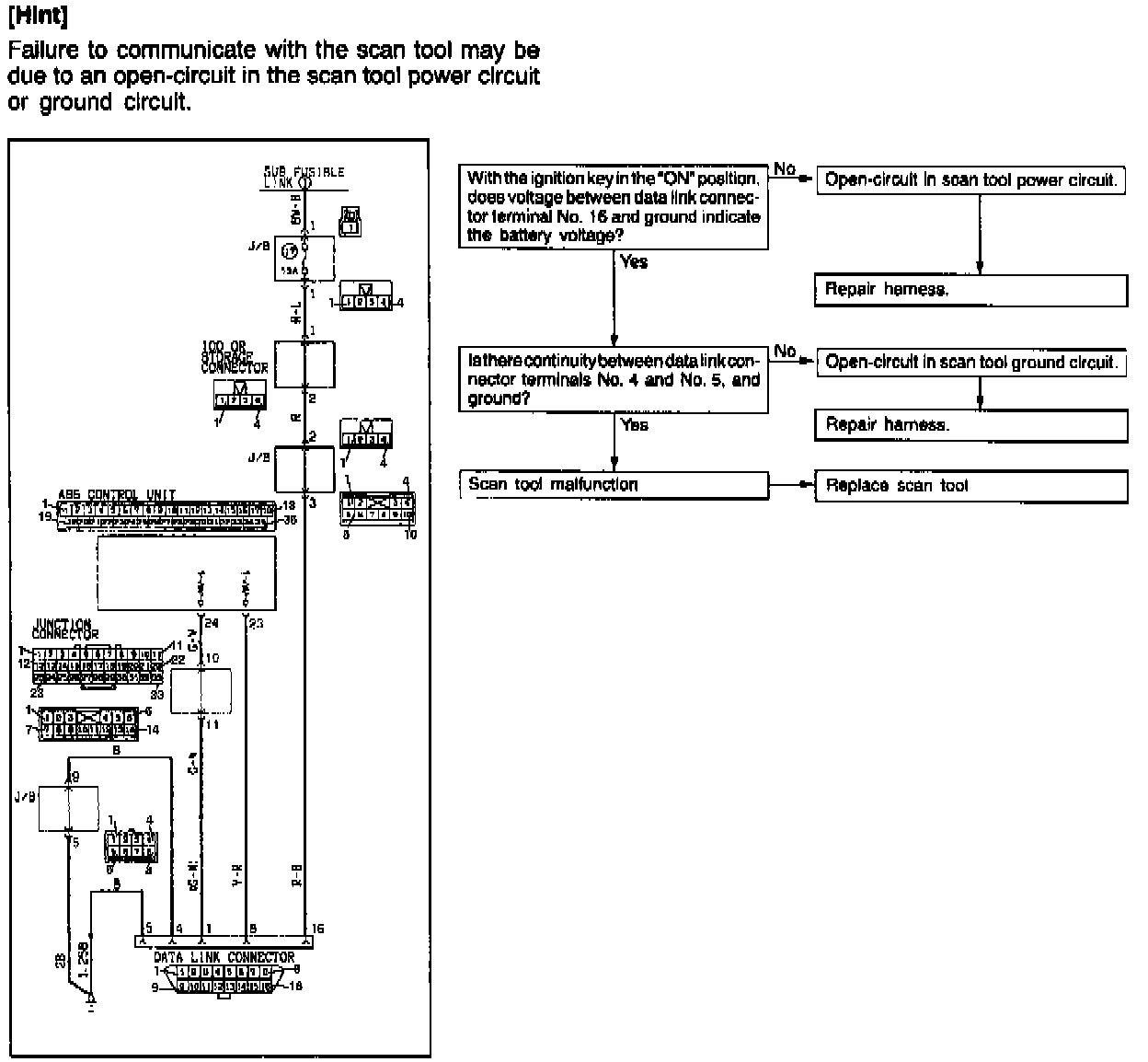

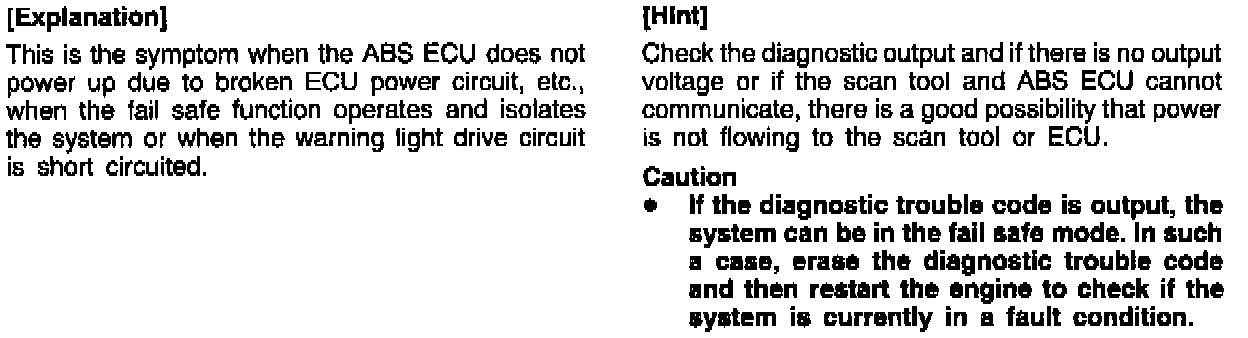

Fig 47 Code 55: ABS Chart F, No Diagnostic Output:
