5 the SRS Light on System Indicates Normal

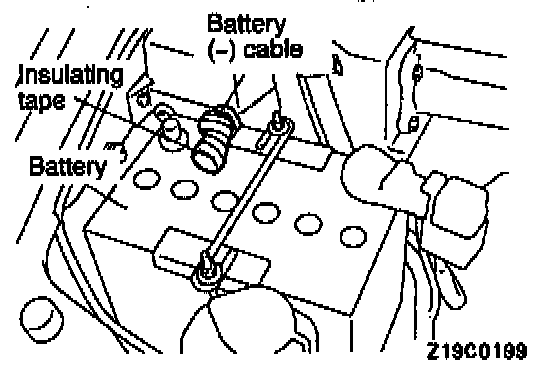

. Turn the ignition key to the "LOCK" position, disconnect the negative battery cable and tape the terminal.

Caution

Wait at least 60 seconds after disconnecting the battery cable before doing any further work.

2. Remove the floor console assembly,

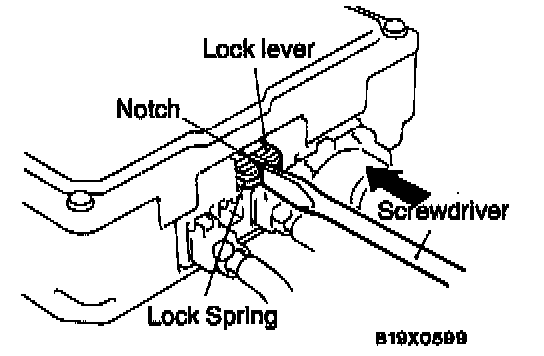

3. Place a flat-tipped screwdriver against the lock spring at the lock lever notch and push the spring toward the unit.

Caution

Do not use excessive force to raise the lock lever.

4. Disconnect the red 14-pin connector from the SRS-ECU.





5. Reconnect negative terminal of battery, and turn the ignition key to the "ON" position.

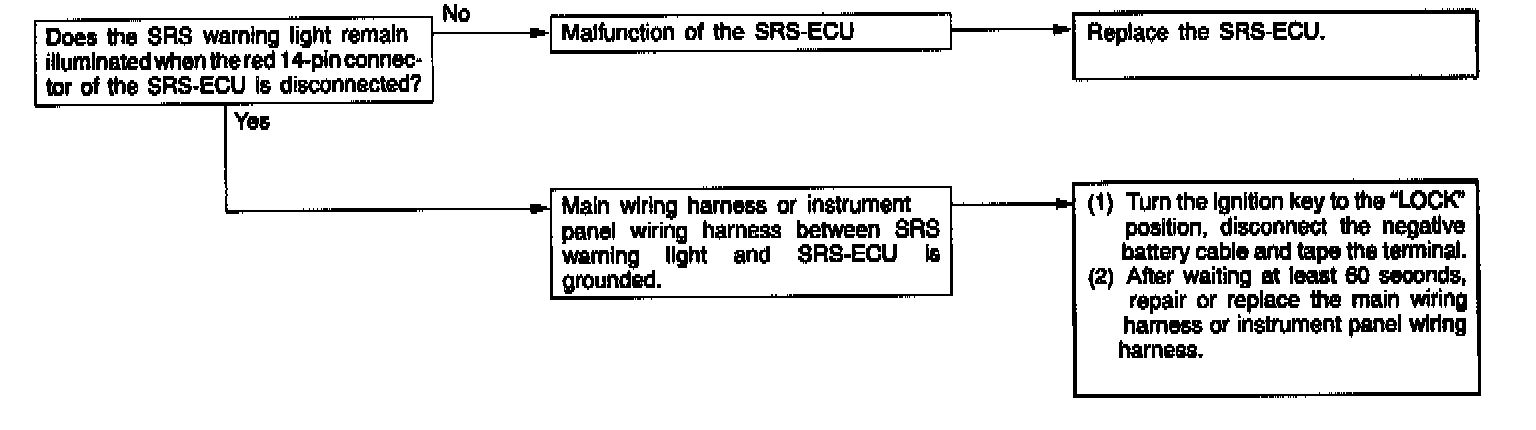

6. Check according to the flow chart below.

NOTE-IMPORTANT

1. After repairing the SRS, reconnect the battery cable and check the SRS waring light operation to verify the system functions properly. (Refer to TEST 2.)

2. SRS-ECU = SRS Air Bag Control Unit
