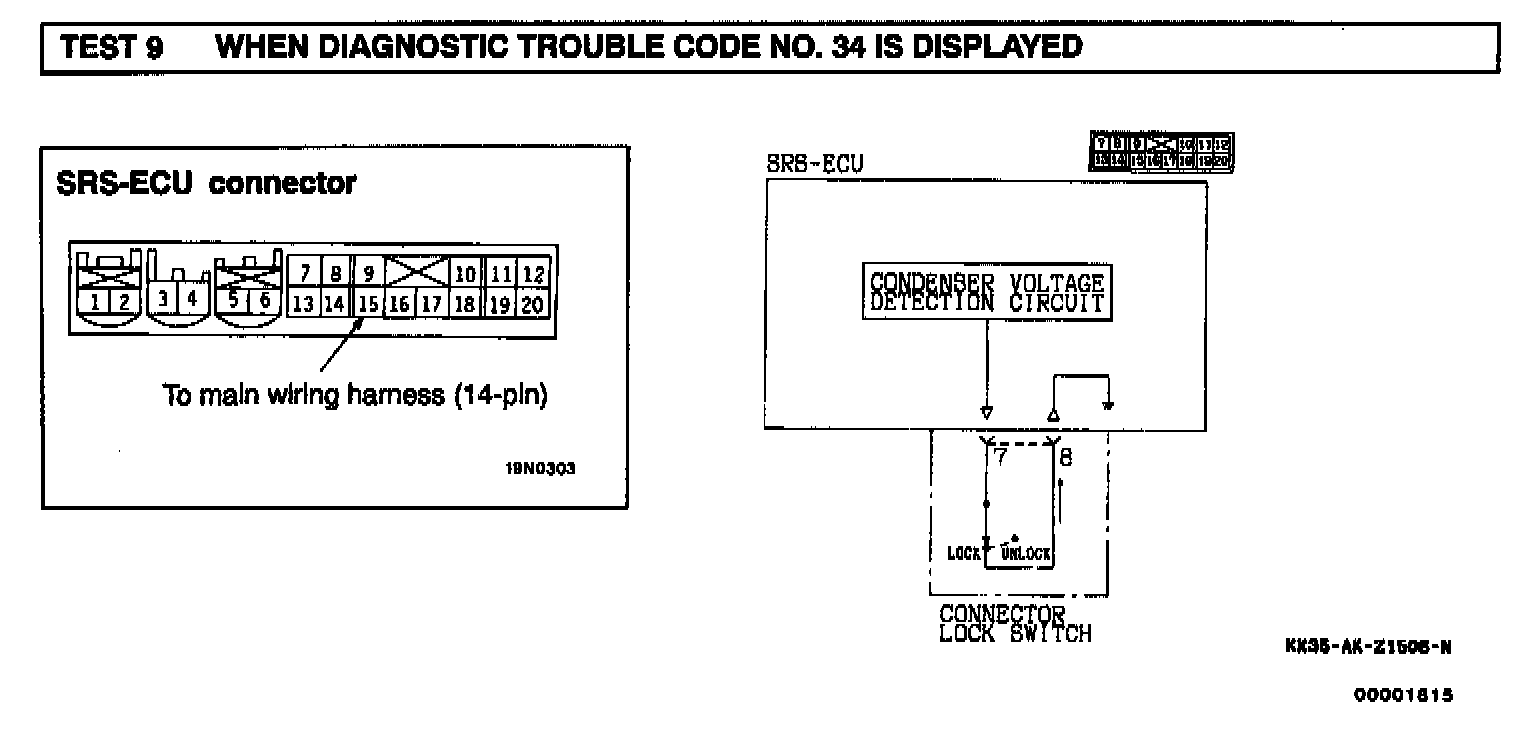

9 DTC 34 Is Retrieved

Caution

Never attempt to measure circuit resistance of the passenger's side air bag module (squib) even if you are using the specified tester. if the circuit resistance is measured with a tester, accidental air bag deployment will result in serious personal injury.

NOTE-IMPORTANT

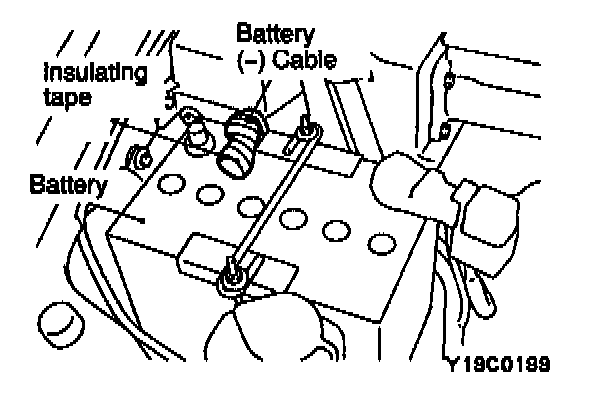

1. After repairing the SRS, reconnect the battery cable, erase the diagnostic trouble code memory from the Scan Tool and check the SRS warning light operation to verity the system functions properly.

2. SRS-ECU = SRS Air Bag Control Unit
