: Automotive Repair
Home
>>
Eagle
>>
1996
>>
Summit Wagon AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
Service and Repair
>>
Removal and Installation Steps
>>
Door Speaker
Door Speaker

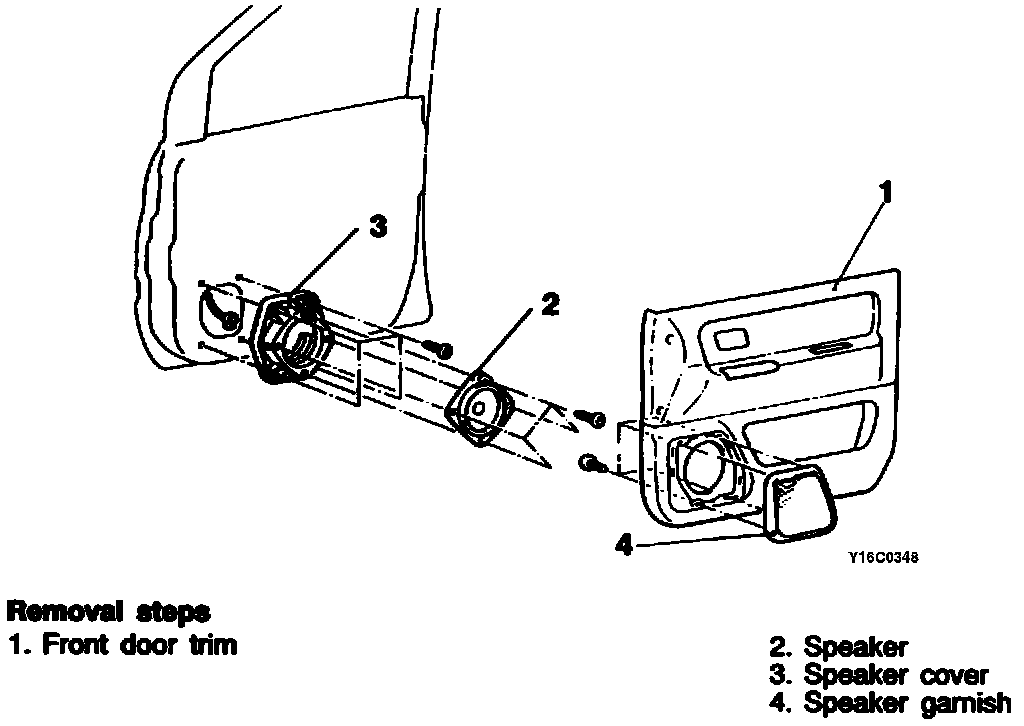

Door Speaker - Removal And Installation:
REMOVE
1.
Front door trim
2.
Speaker
3.
Speaker cover
4.
Speaker garnish
INSTALL
1.
Speaker garnish
2.
Speaker cover
3.
Speaker
4.
Front door trim
