Summit Wagon AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures
Fig 2 Anti-Lock Brake Toubleshooting (Part 1 Of 3). AWD Models:

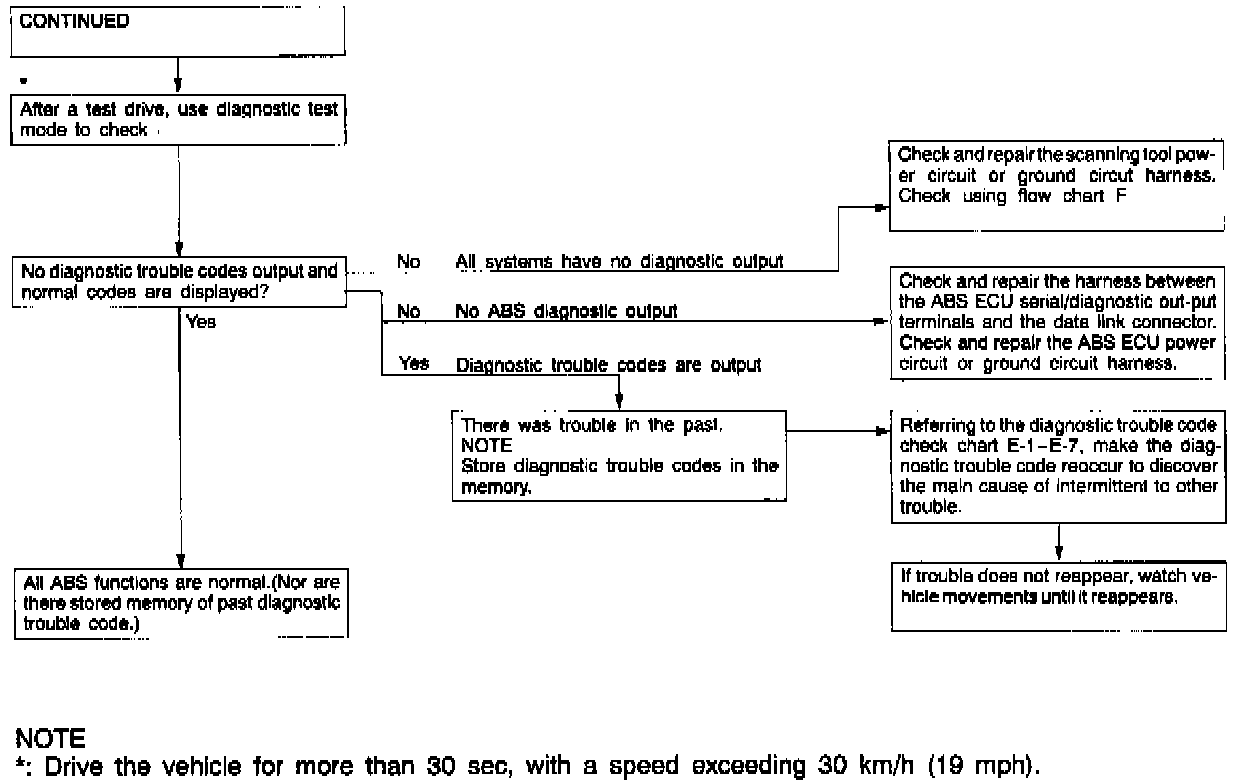

Fig 2 Anti-Lock Brake System Troubleshooting (Part 2 Of 3):
