Eagle
>>
1996
>>
Summit Wagon AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Tape Player
Tape Player

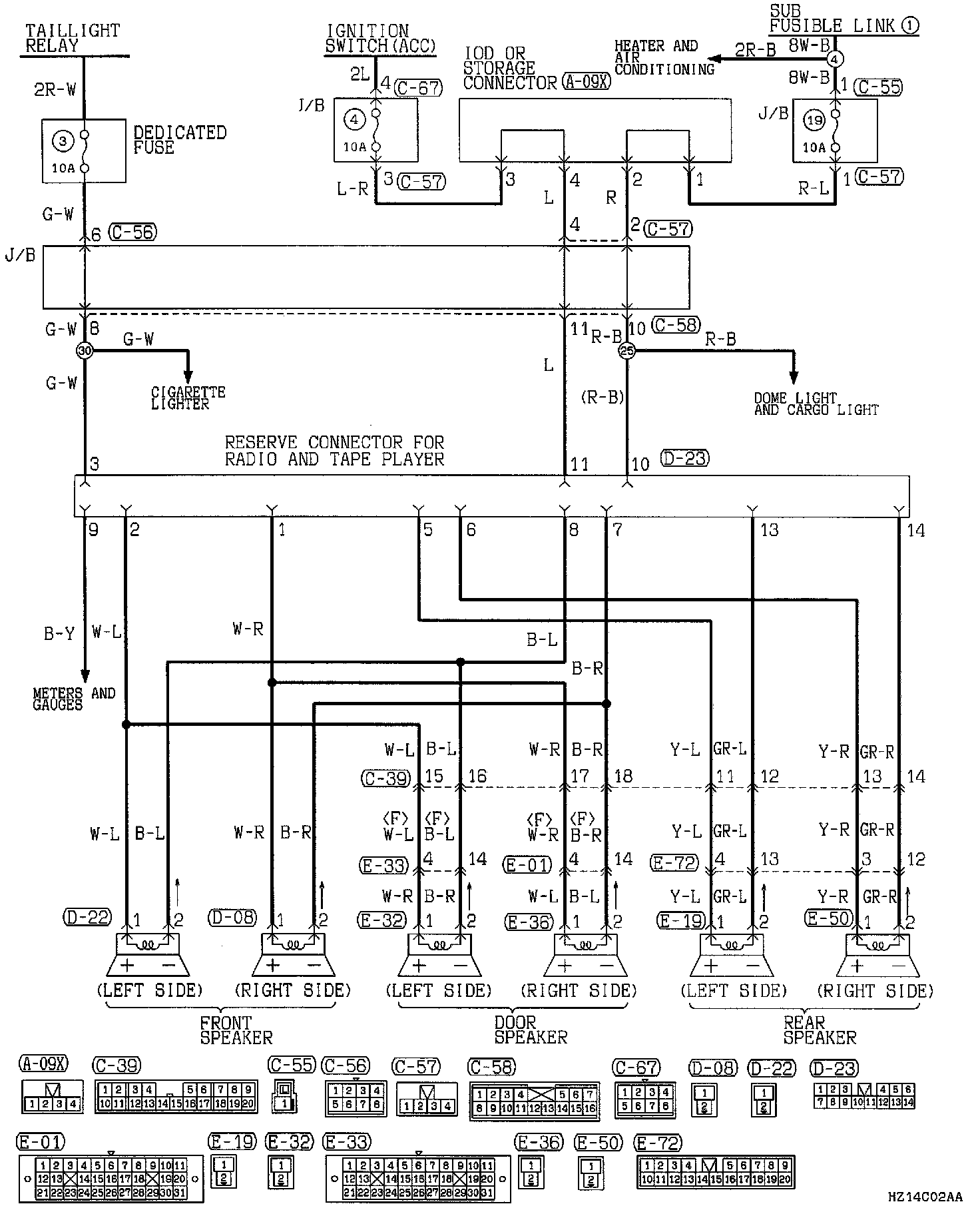

Radio And Tape Player:
