Summit Wagon AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Fuel Gauge
>>
Testing and Inspection
>>

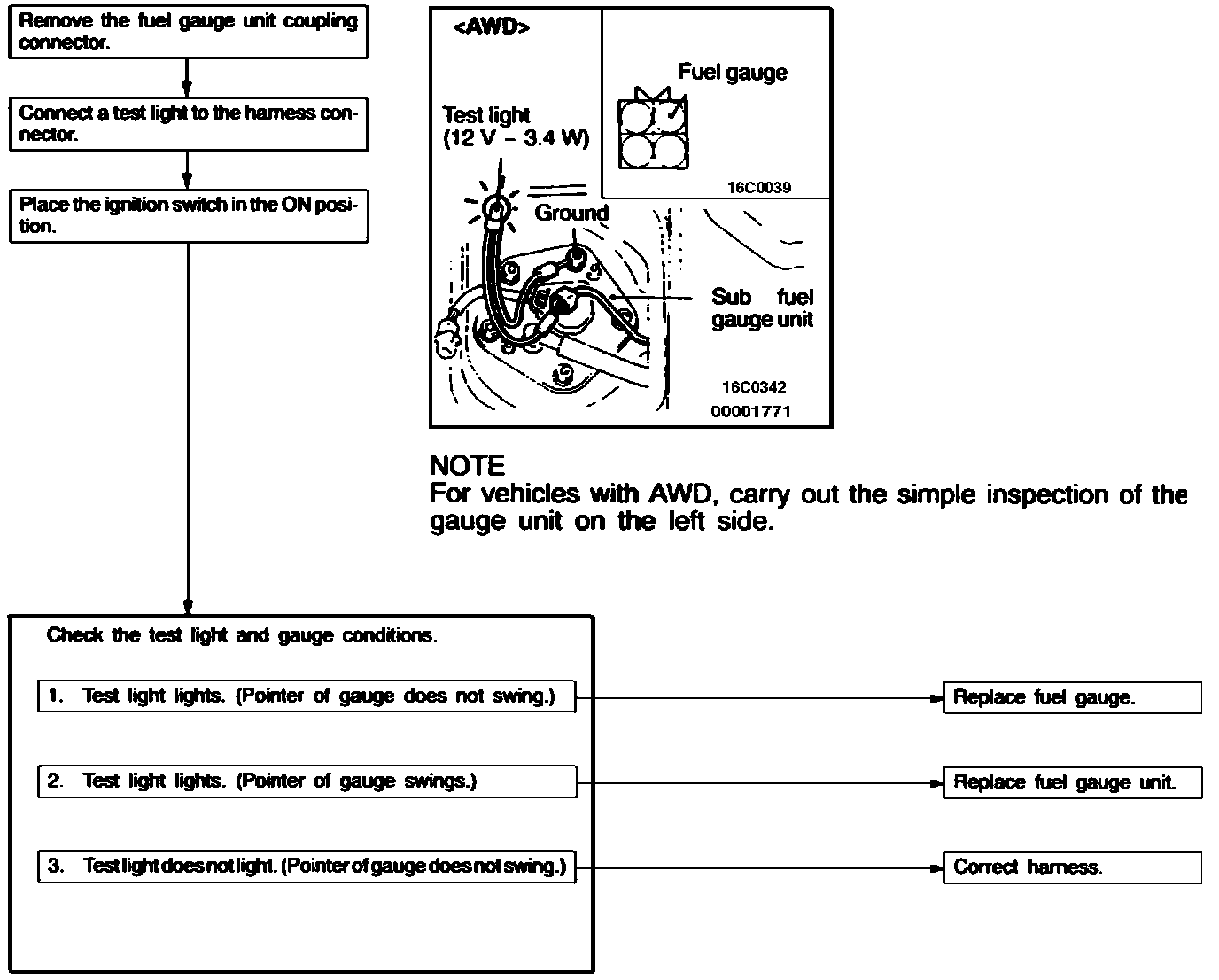

Fuel Gauge Simple Inspection
Fuel Gauge Simple Inspection
Fuel Gauge Simple Inspection:
NOTE:
Carry out the simple inspection of the sub fuel gauge unit on the left side.
