Summit Wagon AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Fuse and Fusible Link Locations
>>
Centralized Junction
>>
Sub-Fusible Link
Sub-Fusible Link

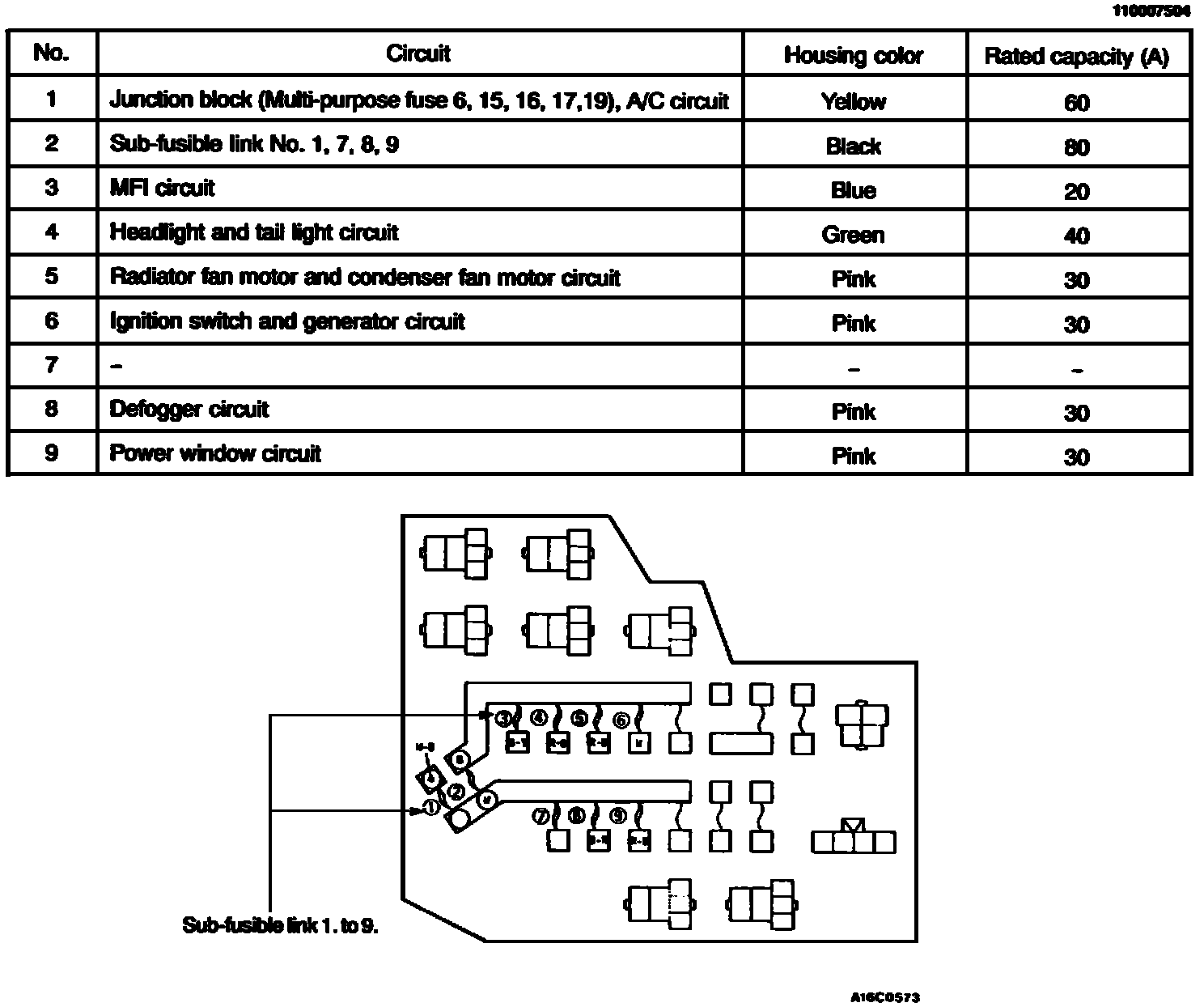

Sub Fusible Link (Relay Box In Engine Compartment):
