Removal/Installation

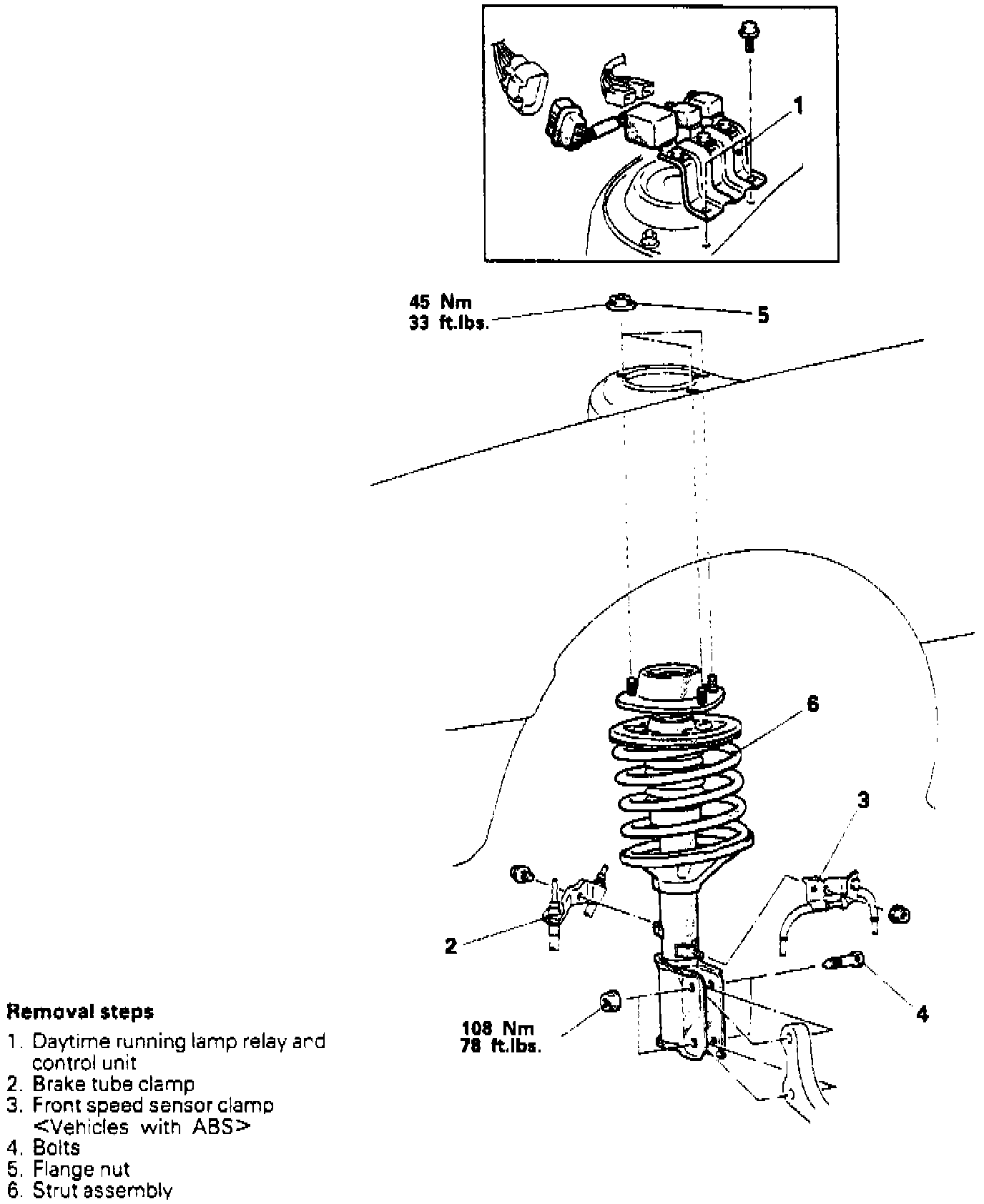

Fig. 8 Strut Replacement:

STRUT REPLACE
1. On models with speed control, remove speed control actuator from righthand strut.
2. On all models, remove strut assembly as shown. Suspend lower arm from vehicle with suitable wire.
3. Reverse procedure to install. When compressing spring, do not use air tools to tighten spring compressor tool.
