Shock Absorber Replacement

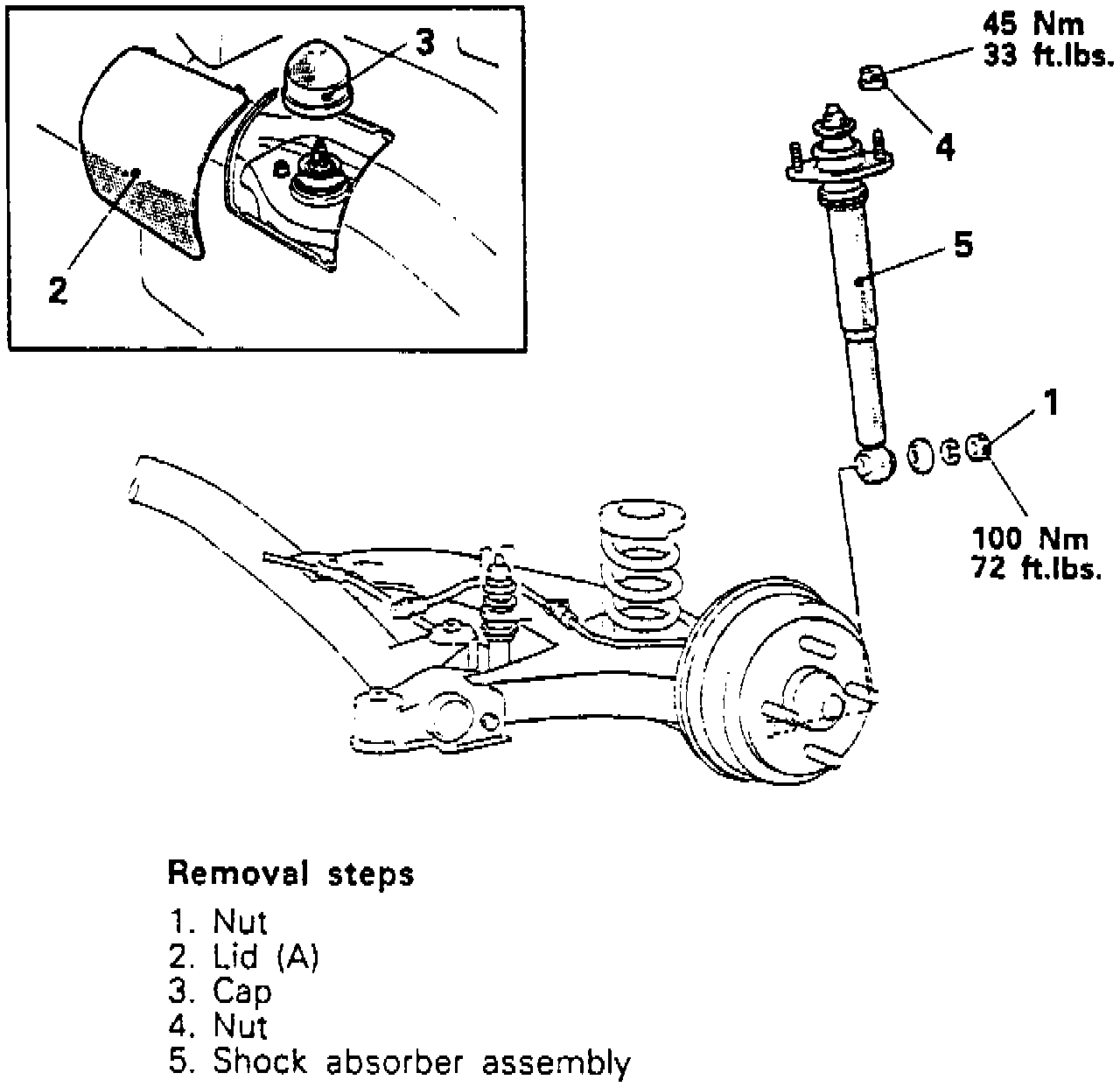

Fig. 16 Shock Absorber Removal:

SHOCK ABSORBER REPLACE


1. Raise and support vehicle, then place jack under lower arm.
2. Remove lower shock absorber mounting nut, remove lid from inside vehicle, then cap.
3. Remove upper shock absorber mounting nut, then shock assembly.
4. Reverse procedure to install.
