Home >> Eagle >> 1996 >> Summit Wagon FWD L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> 1, 2 and 3 Digit Codes >> 15

1, 2 and 3 Digit Codes: 15

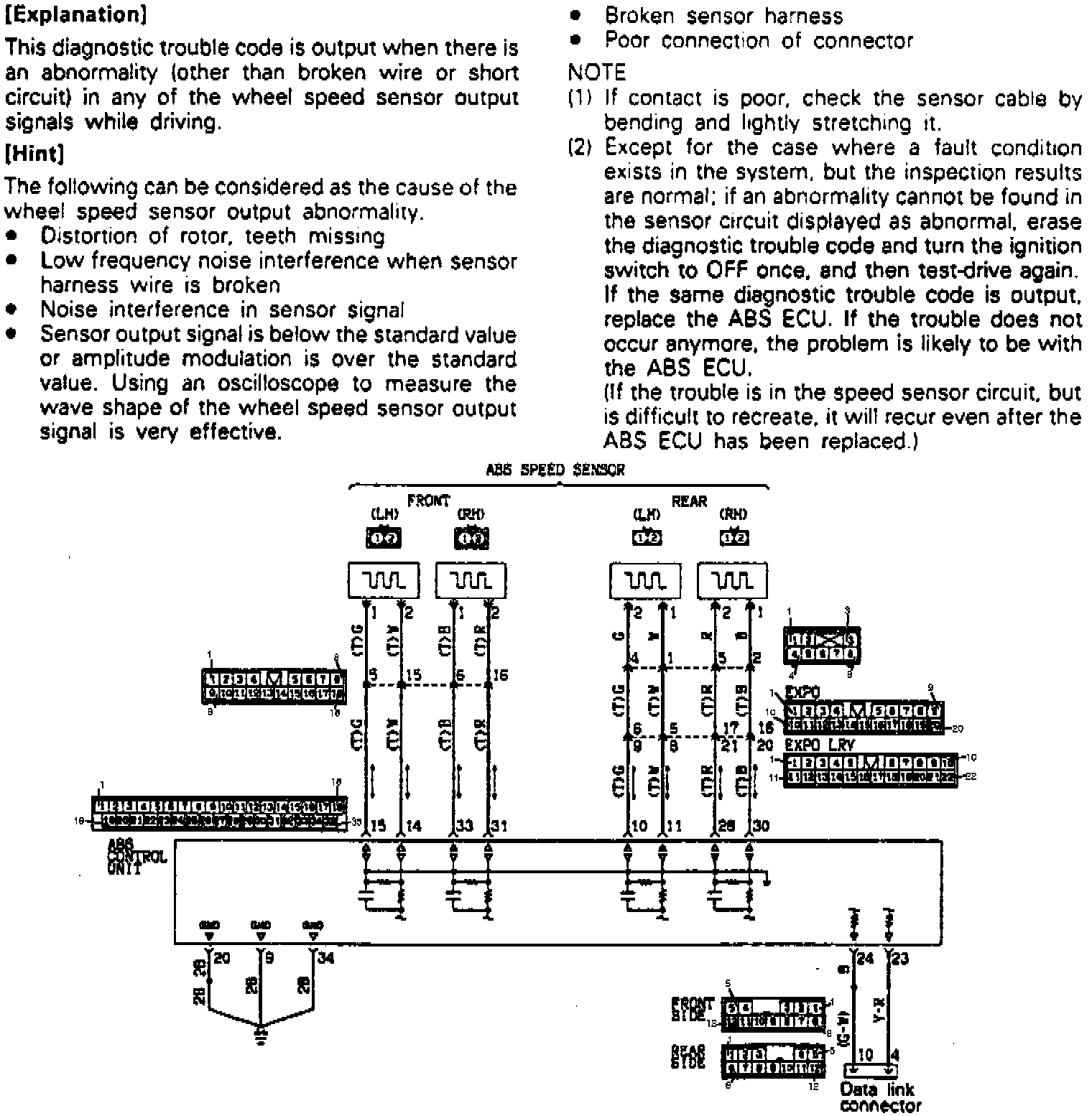

Fig 4 Code 15: ABS Chart E2, Output Abnormality Of Wheel Speed Sensor (Part 1 Of 2):

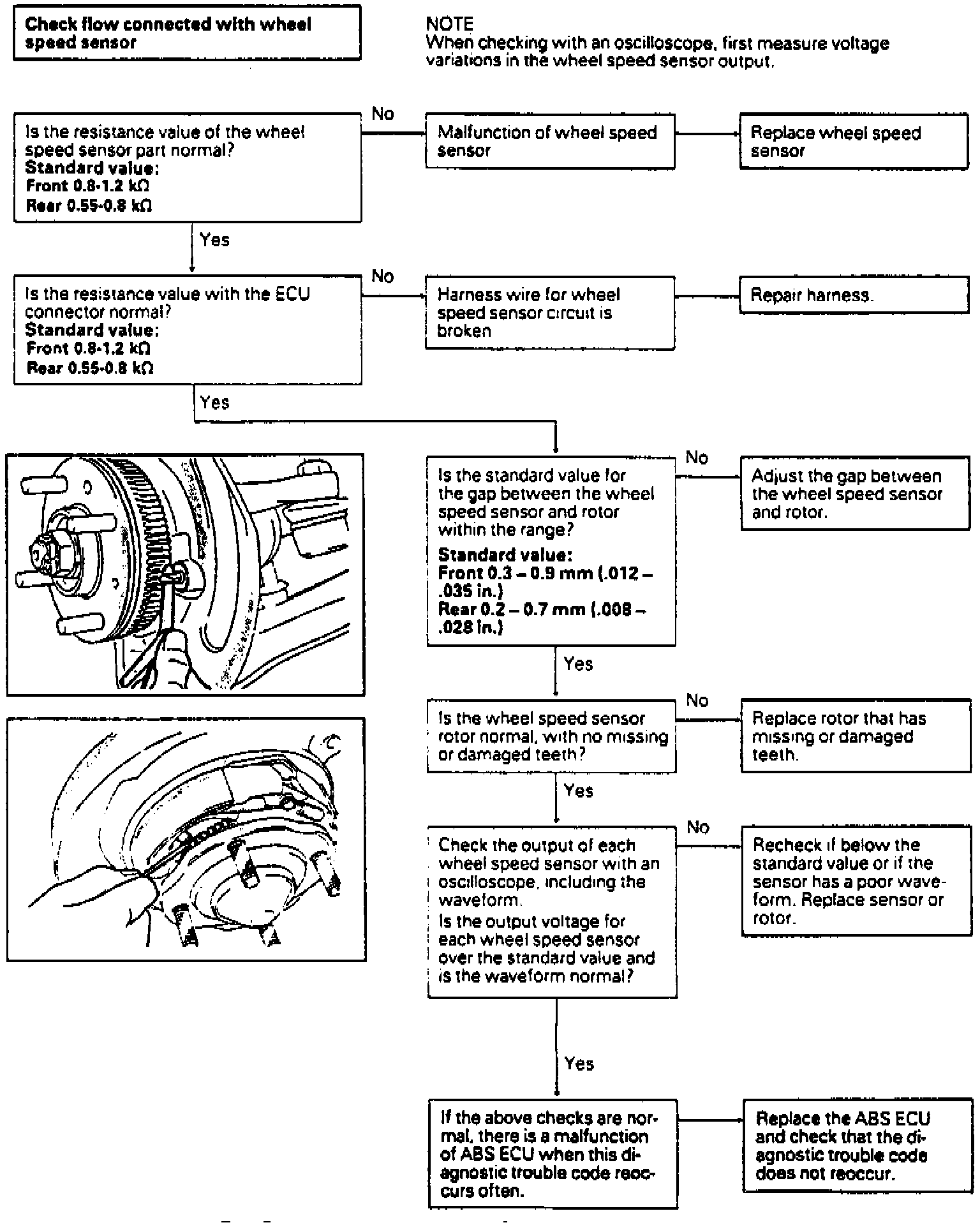

Fig 5 Code 15: ABS Chart E2, Output Abnormality Of Wheel Speed Sensor (Part 2 Of 2):
