Initial Inspection and Diagnostic Overview

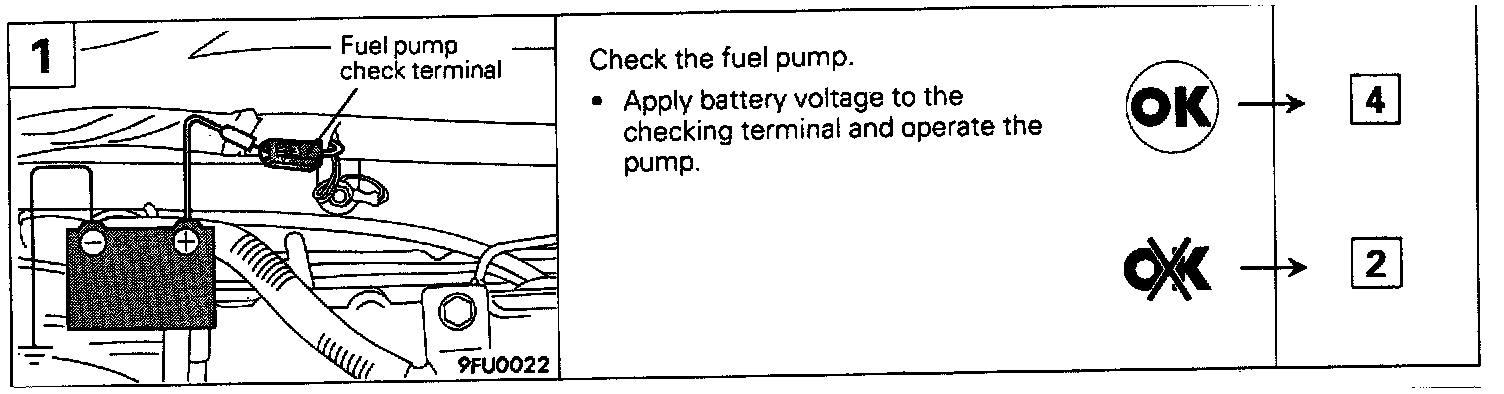

Fuel Pump:

Part 1 of 8

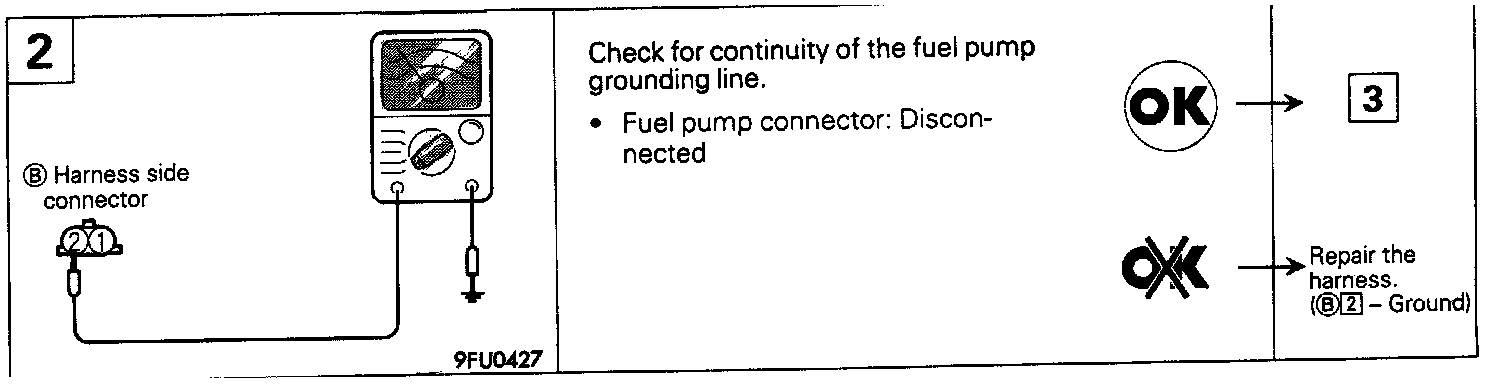

Fuel Pump:

Part 2 of 8

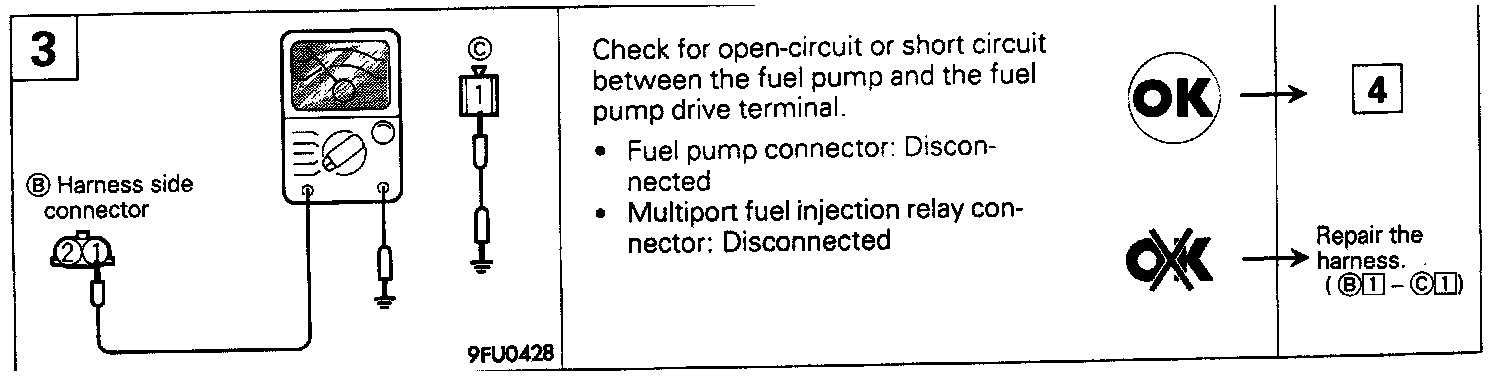

Fuel Pump:

Part 3 of 8

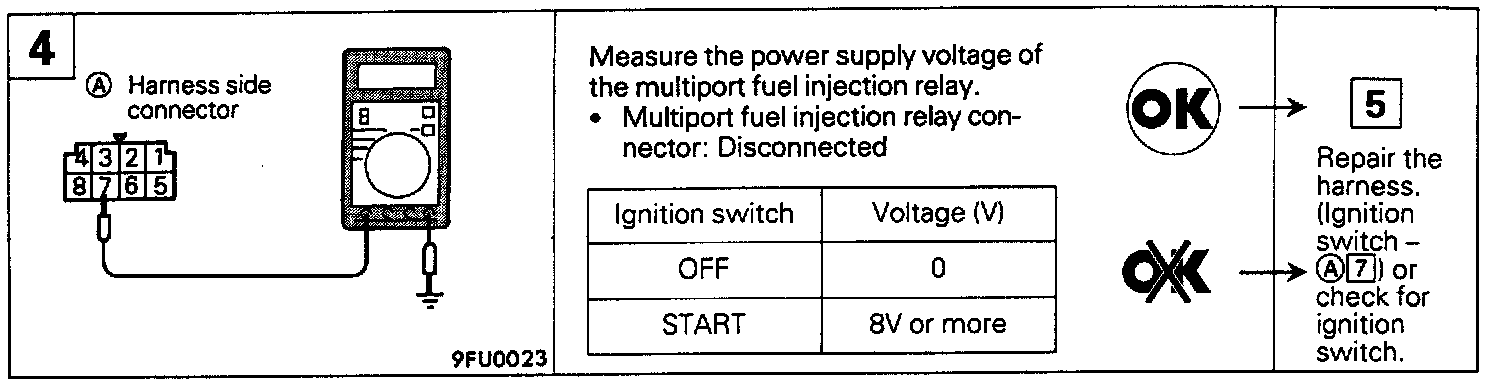

Fuel Pump:

Part 4 of 8

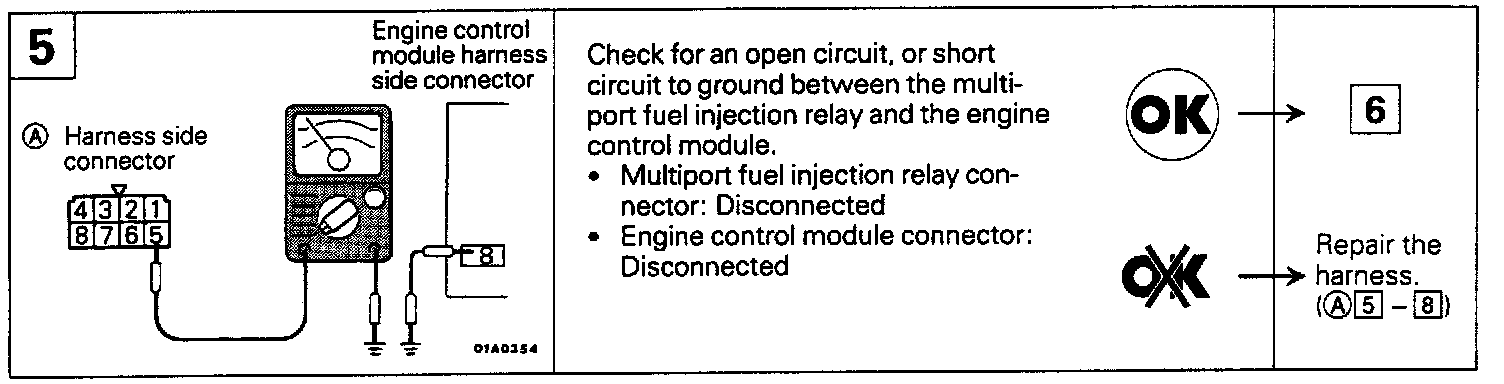

Fuel Pump:

Part 5 of 8

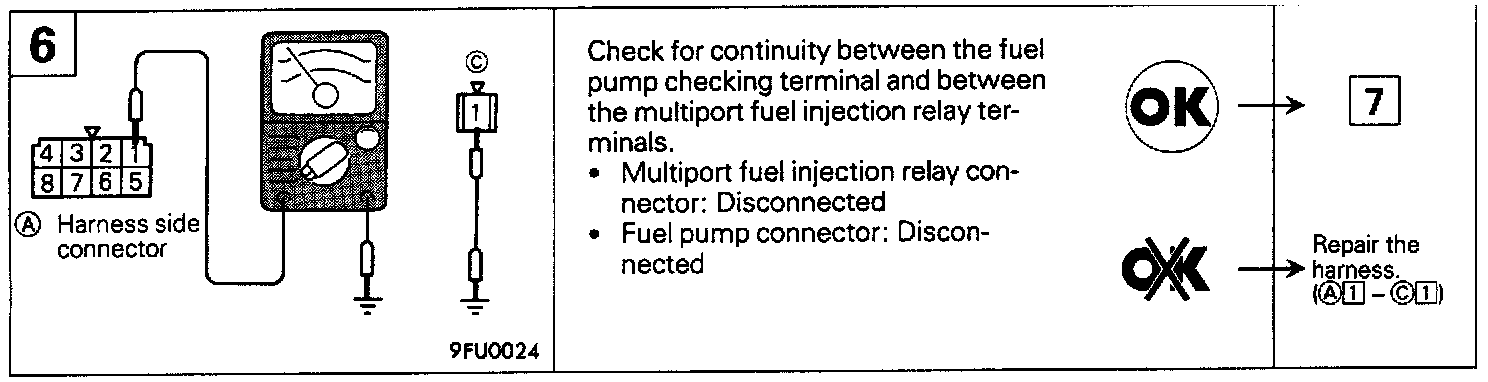

Fuel Pump:

Part 6 of 8

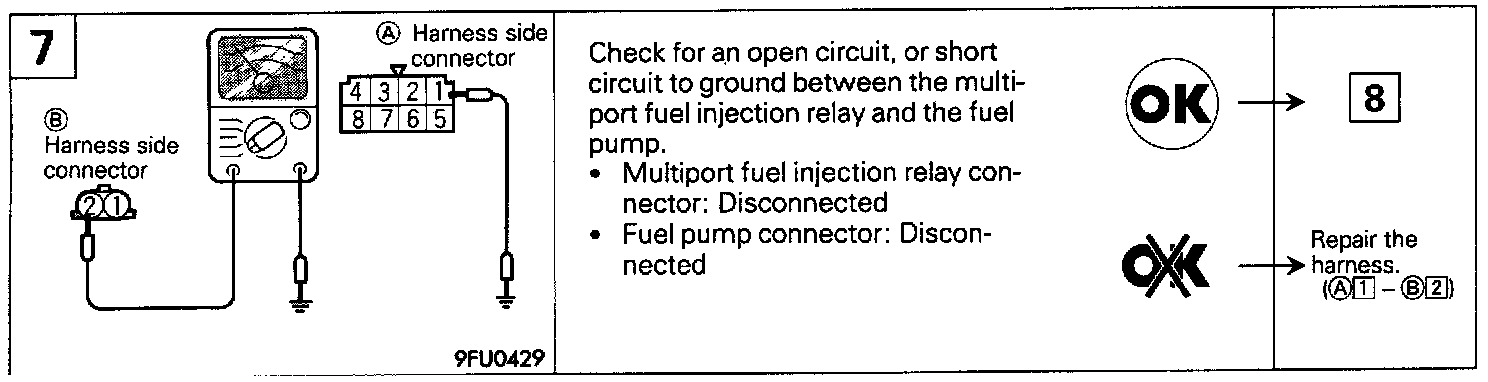

Fuel Pump:

Part 7 of 8

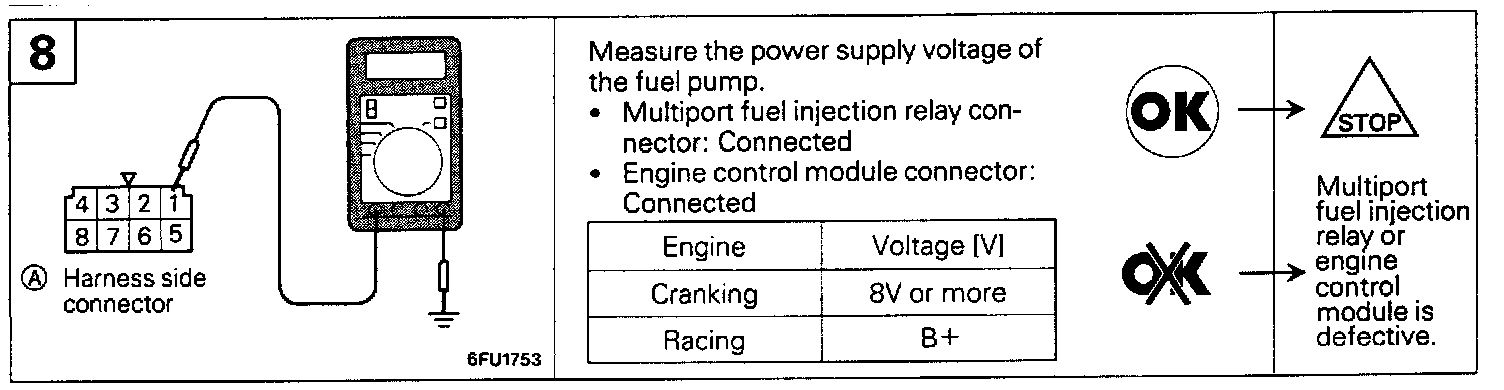

Fuel Pump:

Part 8 of 8
