Headlamp Relay: Testing and Inspection

Headlight Relay:

1. Take out the headlight relay or taillight relay from the engine compartment relay box.

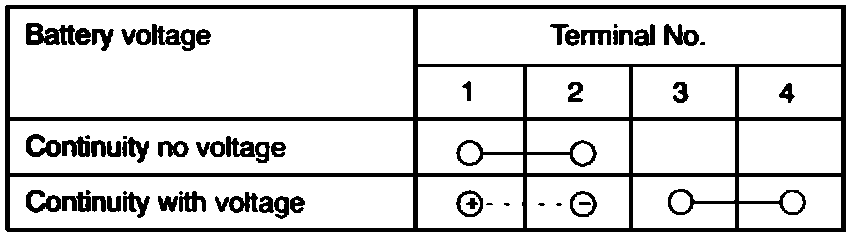

Headlight And Taillight Relay Continuity Table:

2. Check for continuity between terminals under the conditions described below.
