Seat Belt Guide Track: Service and Repair

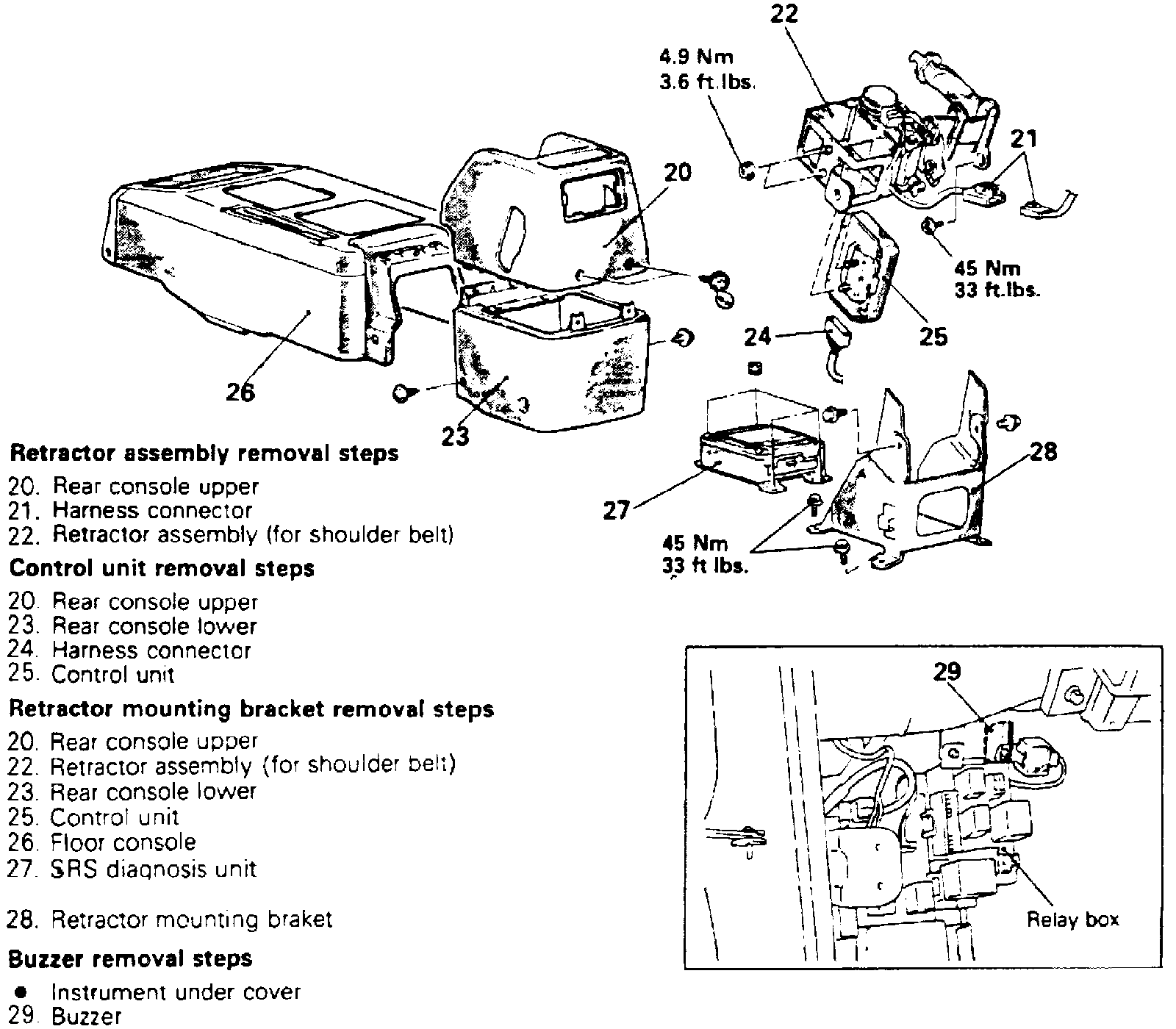

Fig. 49 Automatic Seat Belt Components (Part 1 Of 2):

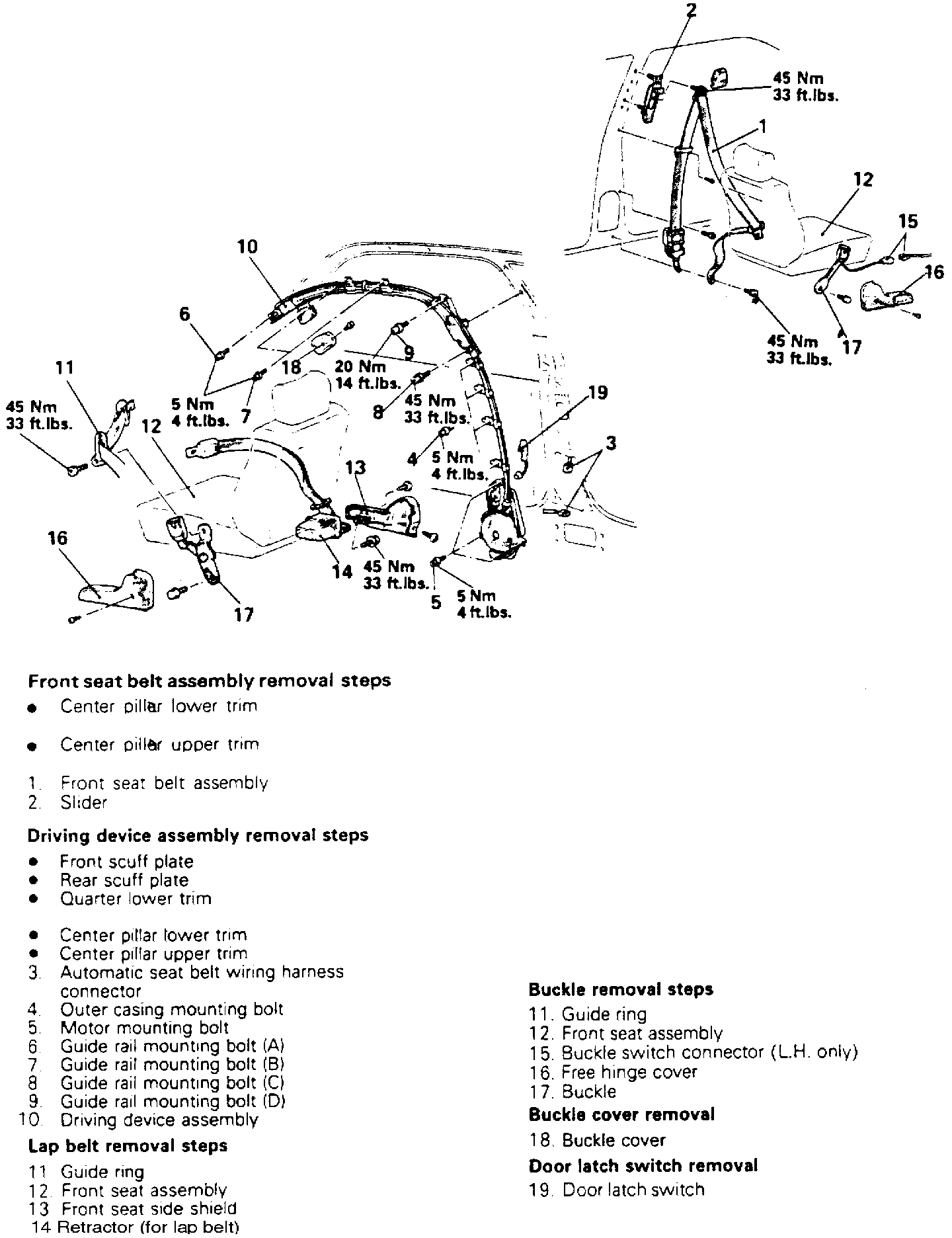

Fig. 49 Automatic Seat Belt Components (Part 2 Of 2):

Replace automatic seat belt components in numbered sequence shown.
