Axle Bearing: Service and Repair

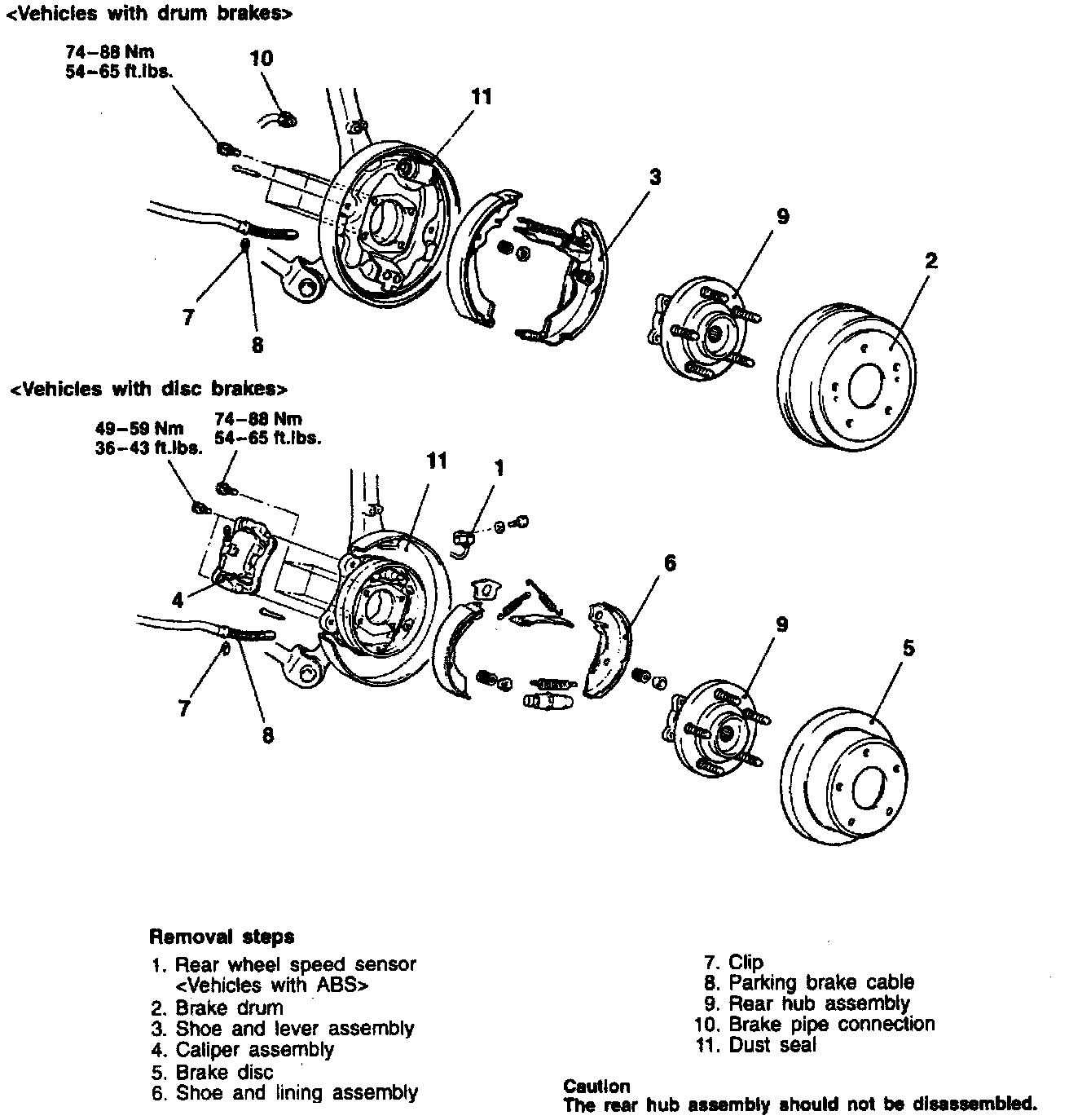

Fig. 7 Rear Axle Hub Replacement:

Remove rear axle hub in numbered sequence, noting the following:
1. Remove rear speed sensor.
2. Remove and suspend caliper assembly with a piece of wire.
CAUTION: Do not hang caliper by brake hose.
3. Reverse procedure to install.
