Diesel Data
: Automotive Repair
Home
>>
Eagle
>>
1996
>>
Talon FWD L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Scan Tool Text Codes
>>
EVAP Purge Flow Monitor Failure
EVAP Purge Flow Monitor Failure

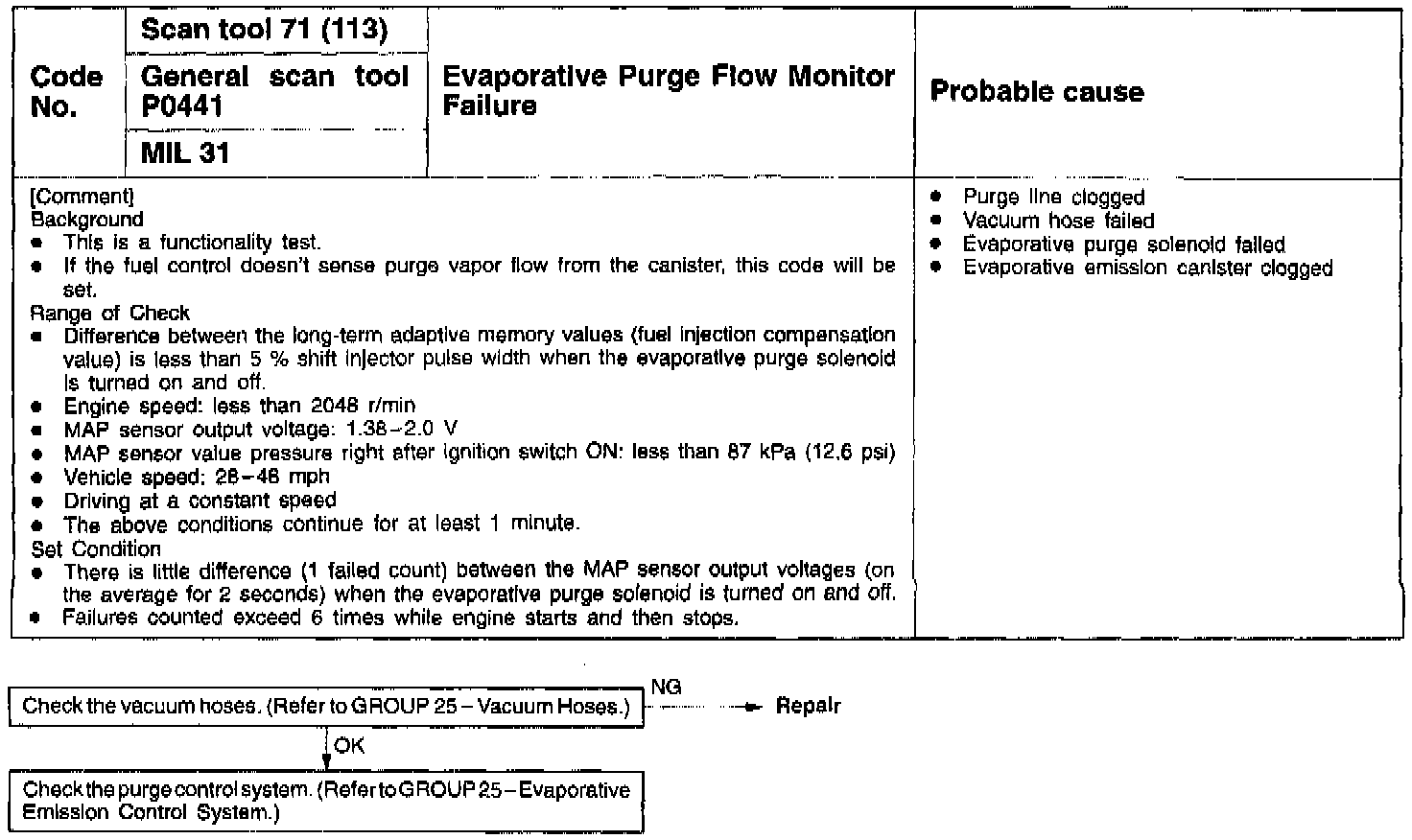

Diagnostic Chart:
