Canister Purge Solenoid: Service and Repair

Pre-removal Operation
^ Right hand splash shield

Evaporative Emissions Canister And Solenoid:

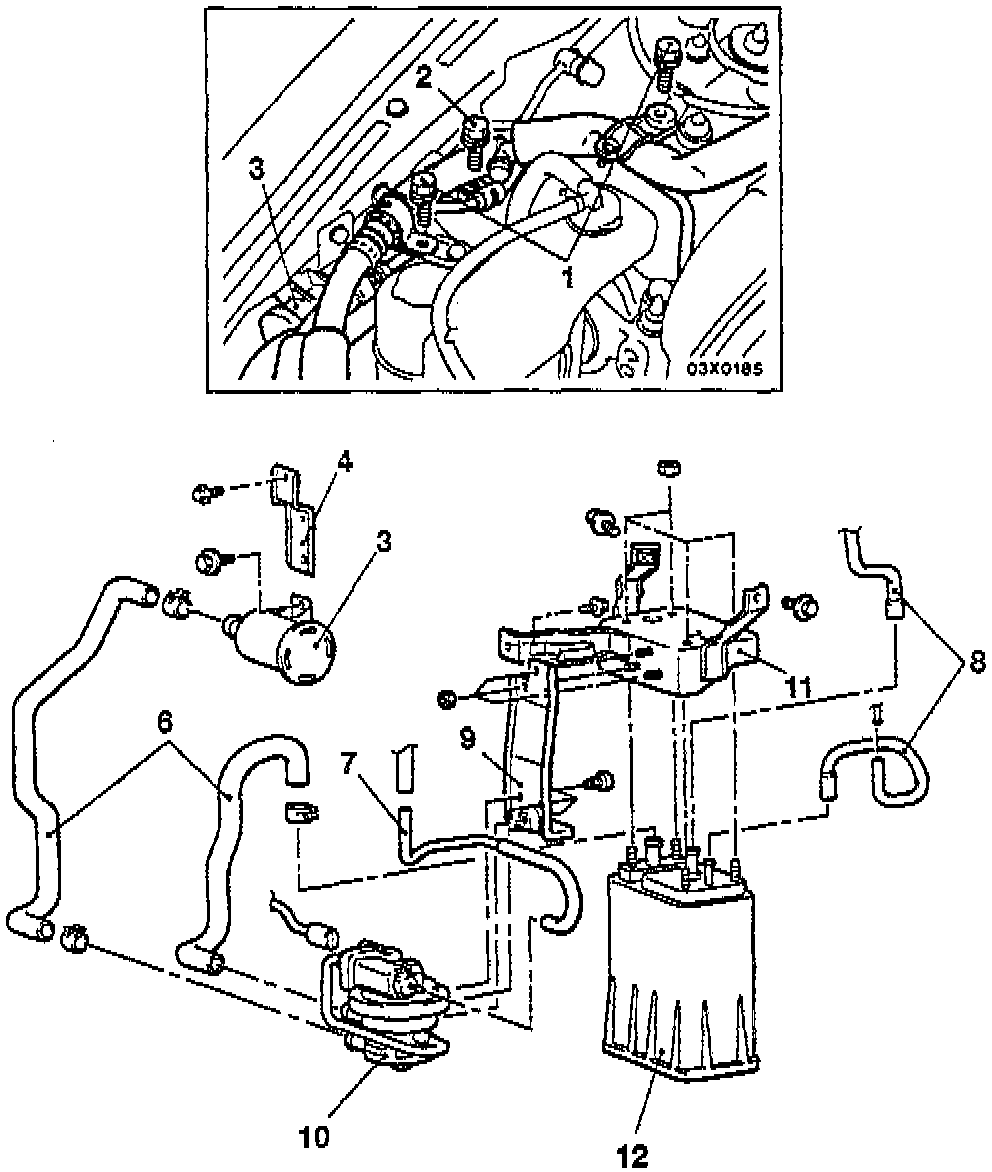

Removal steps
1. Suction hose attachment bolts
2. Pressure hose attachment bolt
3. Air filter
4. Air filter bracket
5. Evaporative emission canister and evaporative emission ventilation solenoid assembly
6. Vapor hose
7. Vapor hose
8. Vapor hose
9. Evaporative emission ventilation solenoid bracket
10. Evaporative emission ventilation solenoid
11. Evaporative emission cannister holder assembly
12. Evaporative emission cannister assembly


Post-installation Operation
^ Install right hand splash shield
