Throttle Body Removal

Pre-removal operation
^ Battery removal

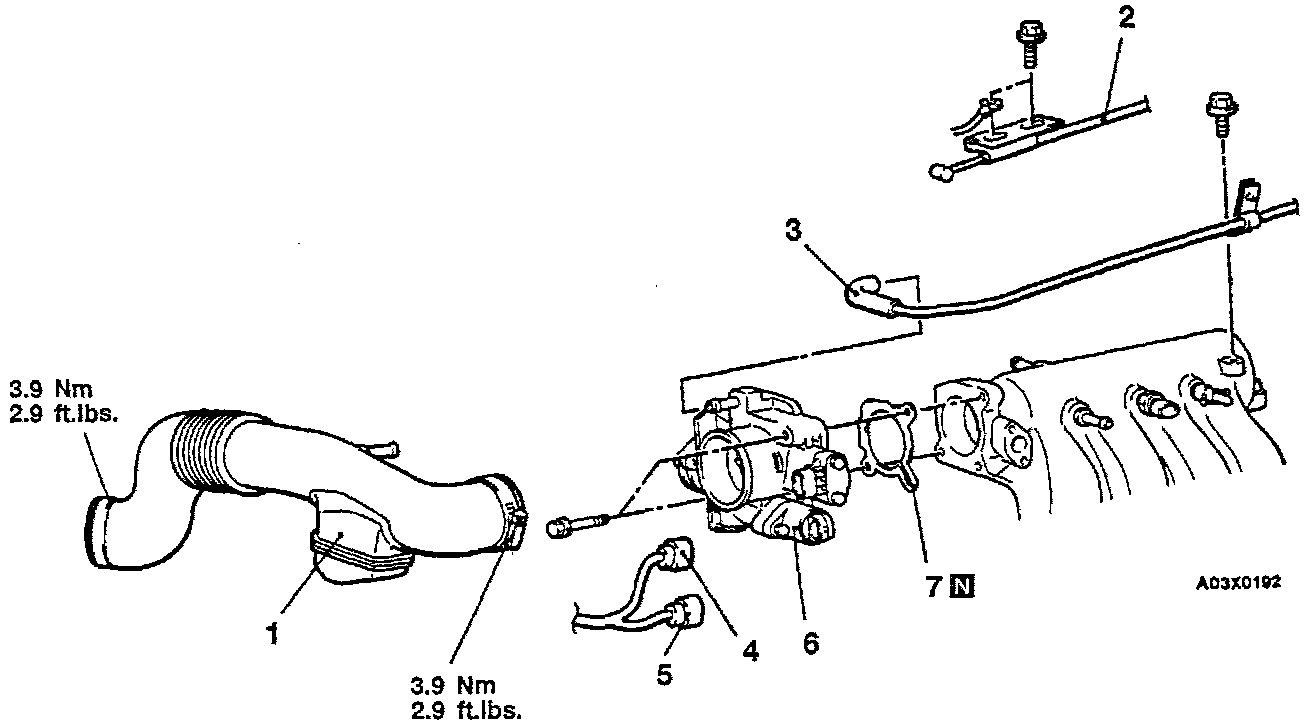

Removal steps
1. Air intake hose
2. Accelerator cable connection
3. Vacuum hose connection
4. TPS connector
5. AIS motor connector
6. Throttle body
7. Throttle body gasket

Post-Installation Operation
^ Battery Installation
^ Accelerator cable adjustment
