Troubleshooting Diagrams

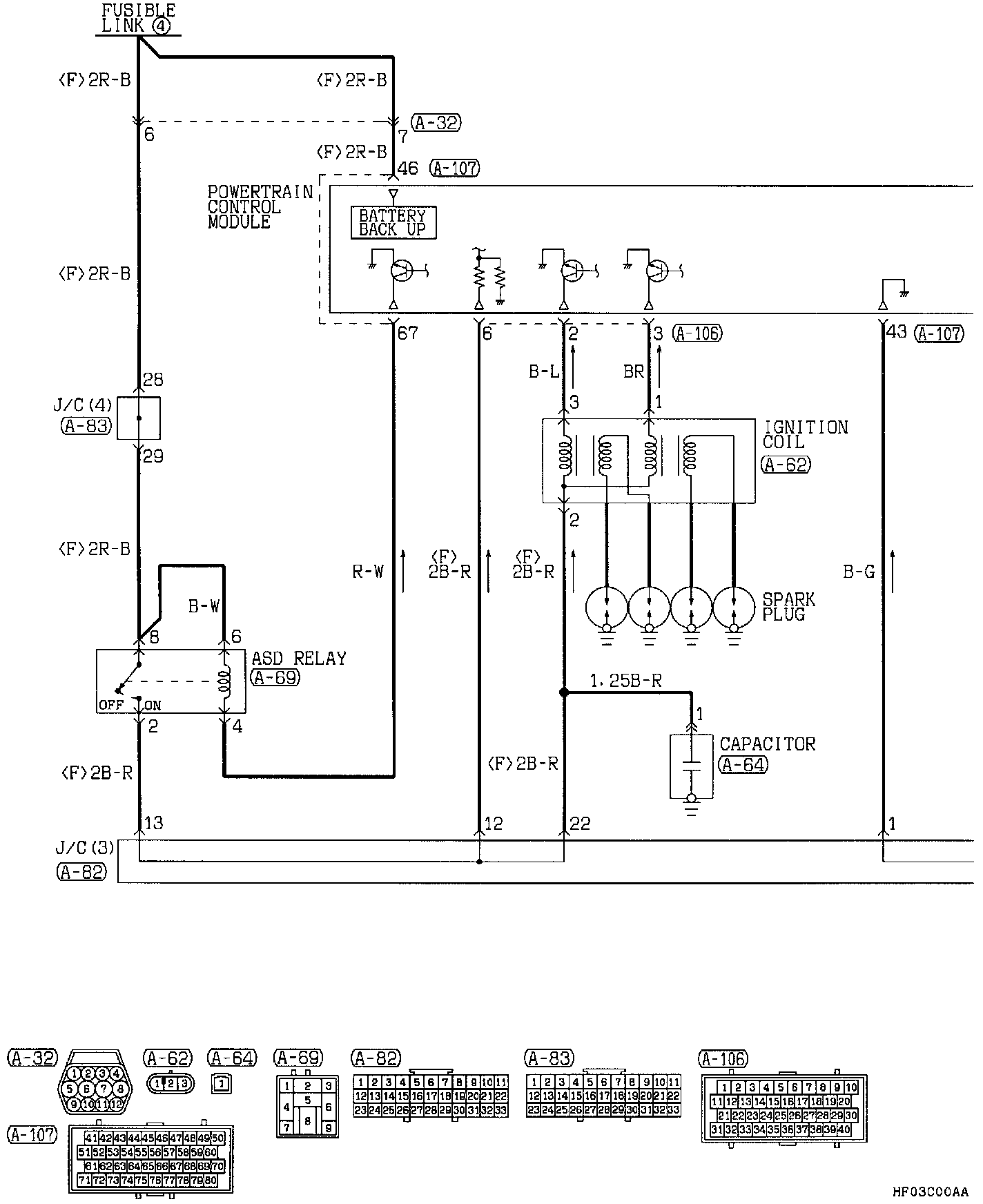

Troubleshooting Circuits (Part 1 Of 2):

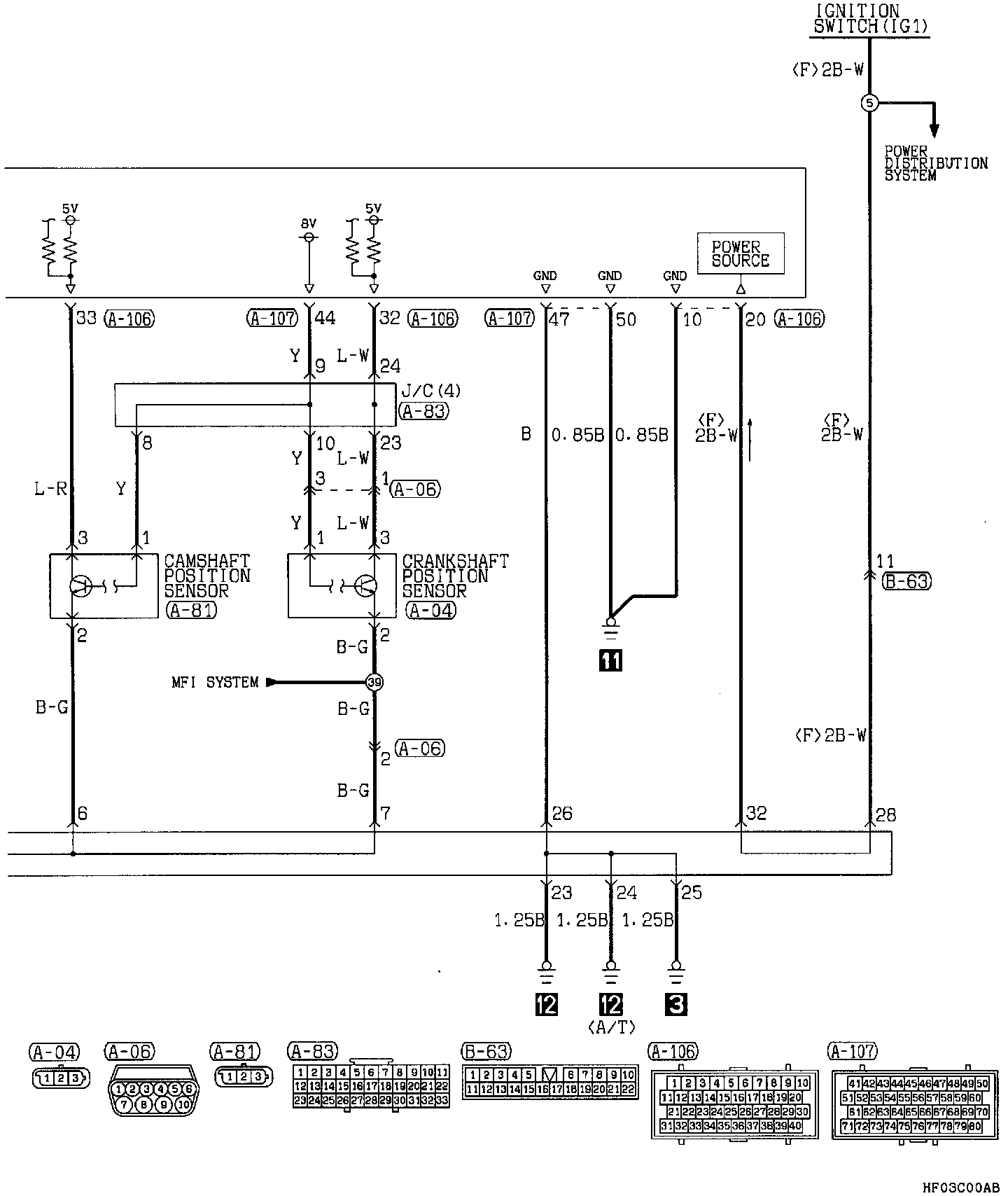

Troubleshooting Circuits (Part 2 Of 2):
