Home
>>
Ford Truck
>>
1983
>>
Bronco L6-300 4.9L VIN Y 1-bbl
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
Differential Technical Data
>>
Front Differential
>>
Ford 8.8 Inch
Ford 8.8 Inch

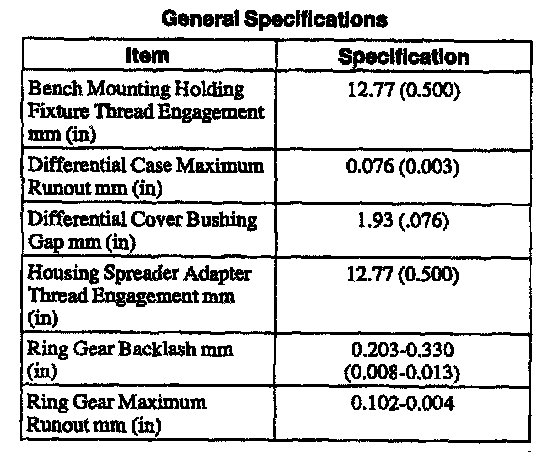

Ford 8.8 Inch, Differential Tolerances:
Ford 8.8 Inch, End Play-Bearing Thickness:

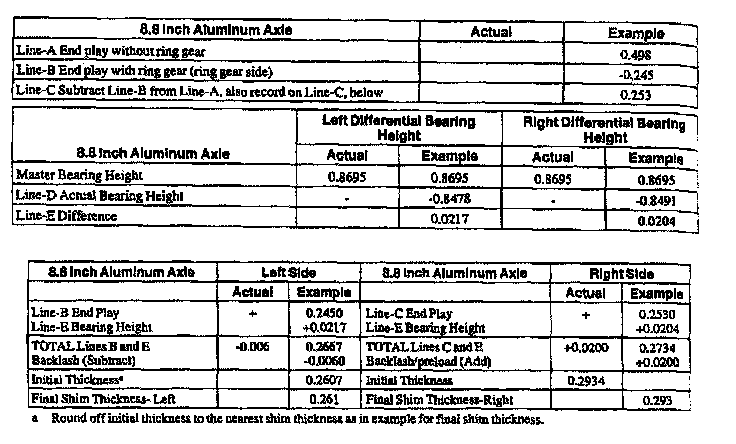

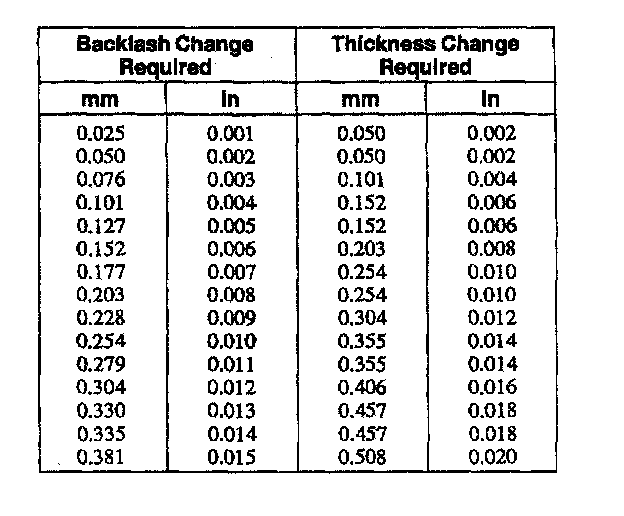

Ford 8.8 Inch, Backlash/Shim Thickness:

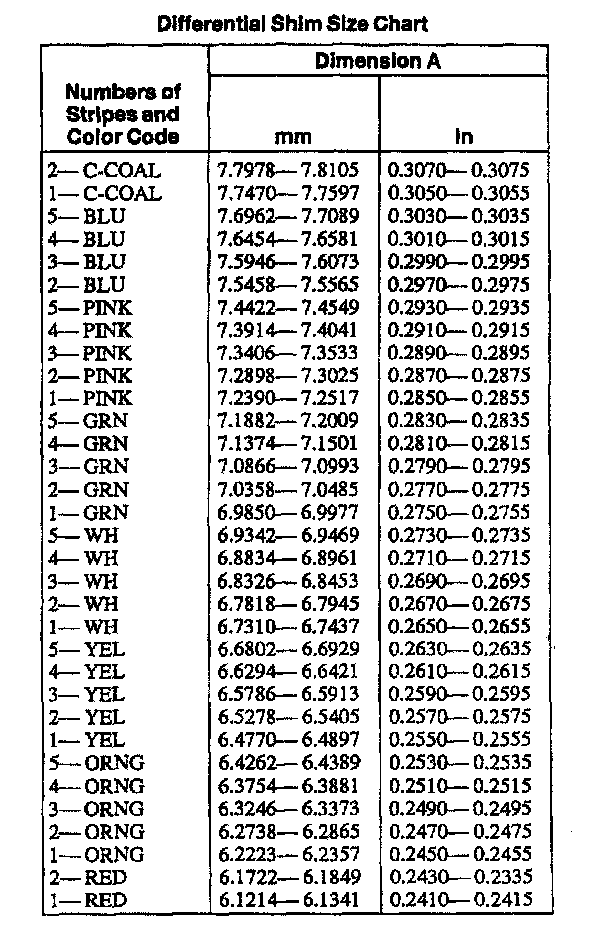

Ford 8.8 Inch, Differential Shim Chart:
