Idle Speed/Throttle Actuator - Mechanical: Locations

LH Side Of Engine.:

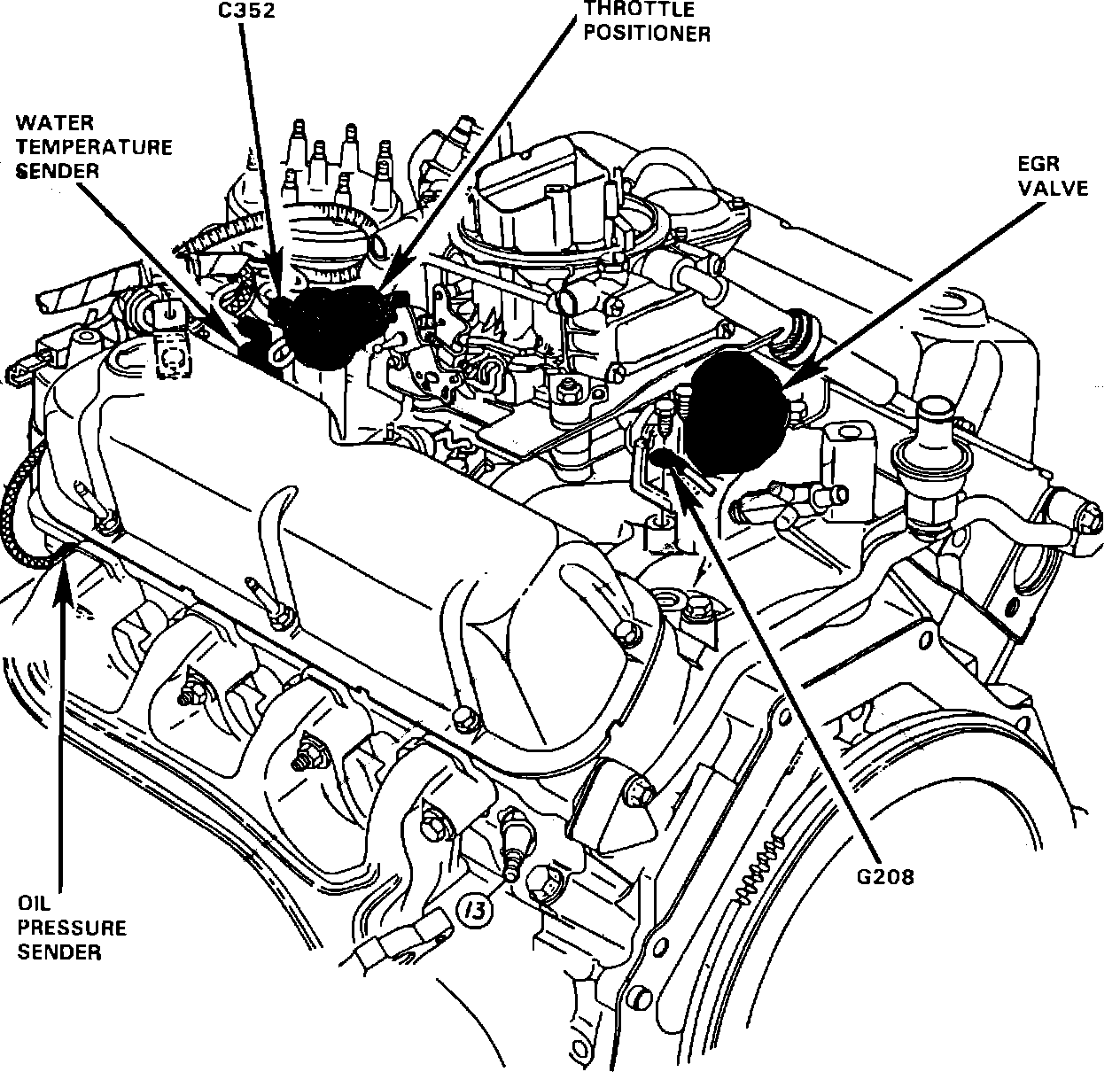

RH Side Of Engine.:




LH Side Of Carburetor

Applicable to: 1985 V8-351/5.8L Engine w/4 Barrel Carb. Except Calif.
