Fig. 28 Calib. Codes 3-54W-R0, 3-54Y-R0 & 3-54Z-R0
Fig. 28 Calib. Codes 3-54W-R0, 3-54Y-R0 & 3-54Z-R0

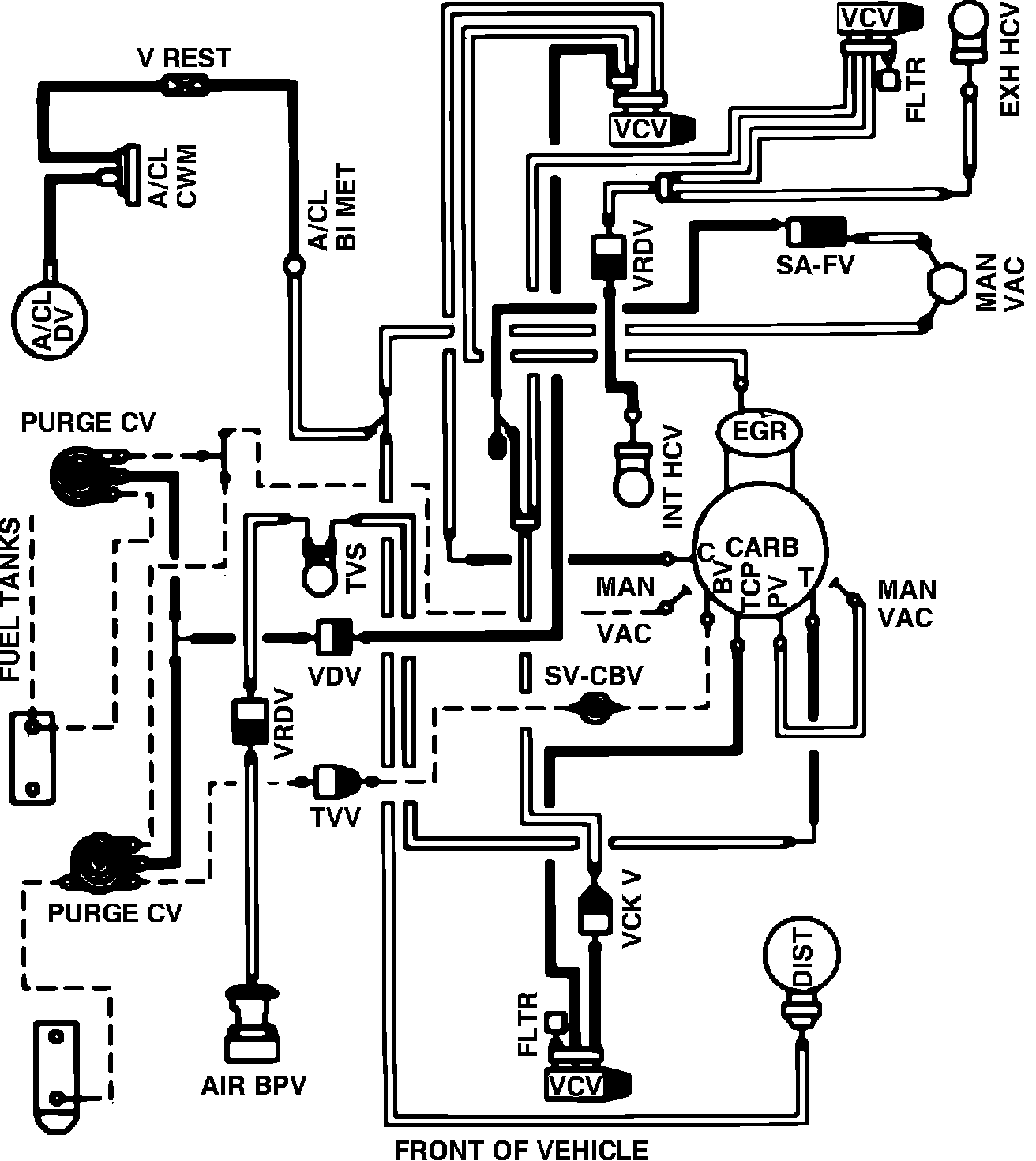

Fig. 28 Vacuum hose routing. 1983 V8-302 calib. codes 3-54W-R0, 3-54Y-R0 & 3-54Z-R0:
