Instrument Panel, Gauges and Warning Indicators
>>
Malfunction Indicator Lamp
Malfunction Indicator Lamp

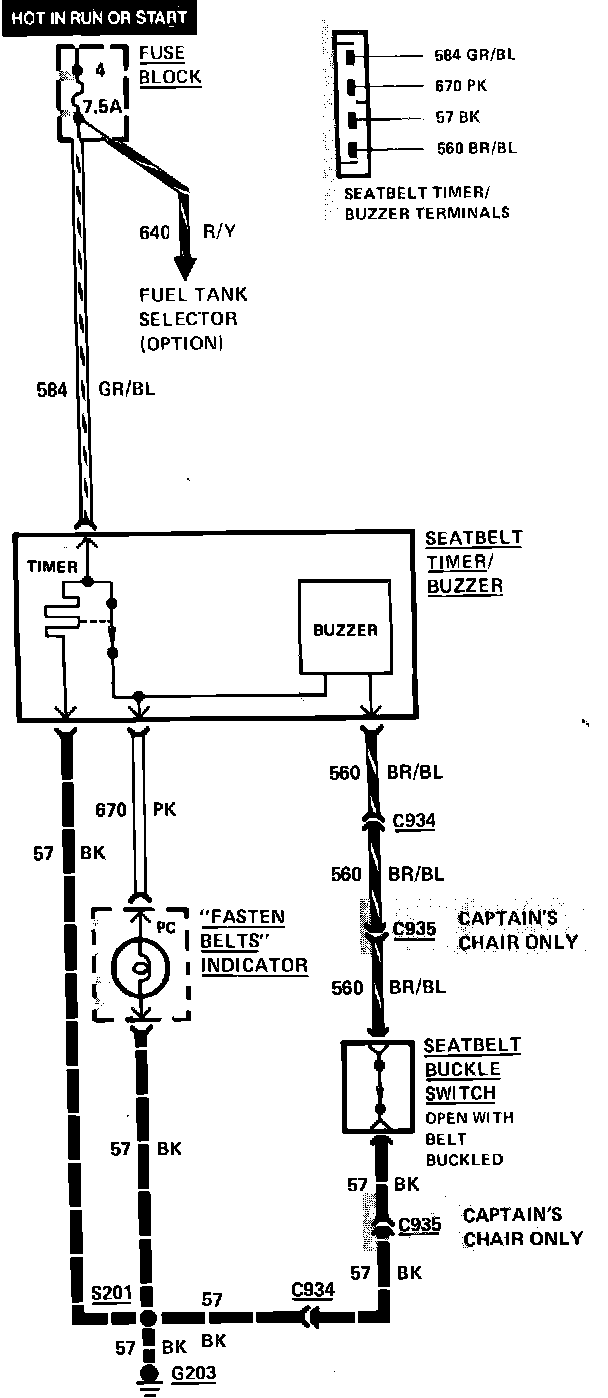

Fig. 120 Seat belt warning wiring circuit. 1983-84 Econoline:
