System Diagram

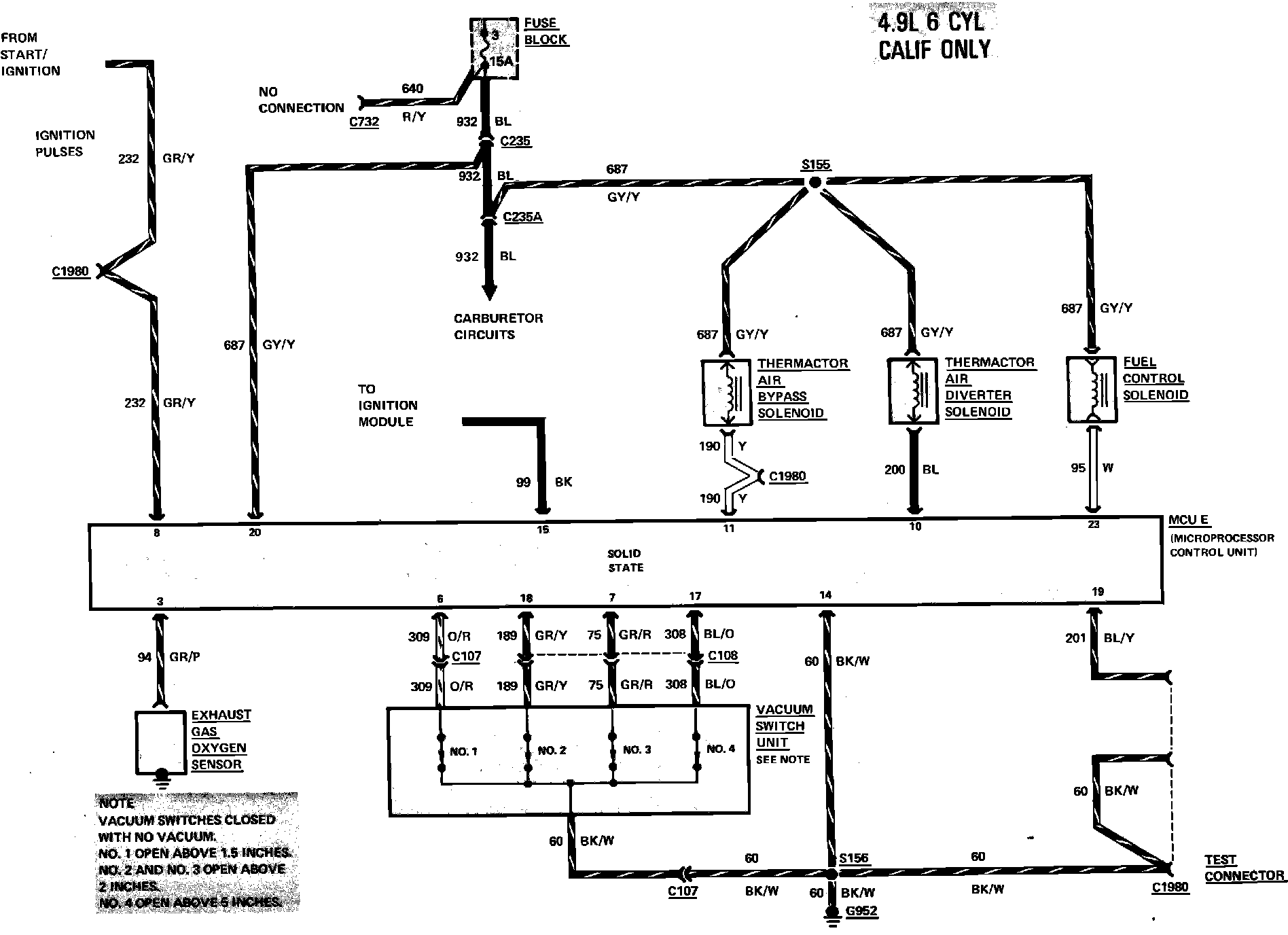

Fig. 61 Feedback carburetor wiring circuit. 1983 Econoline with 6 cylinder engine & Calif. emissions:
