Engine Mount: Service and Repair

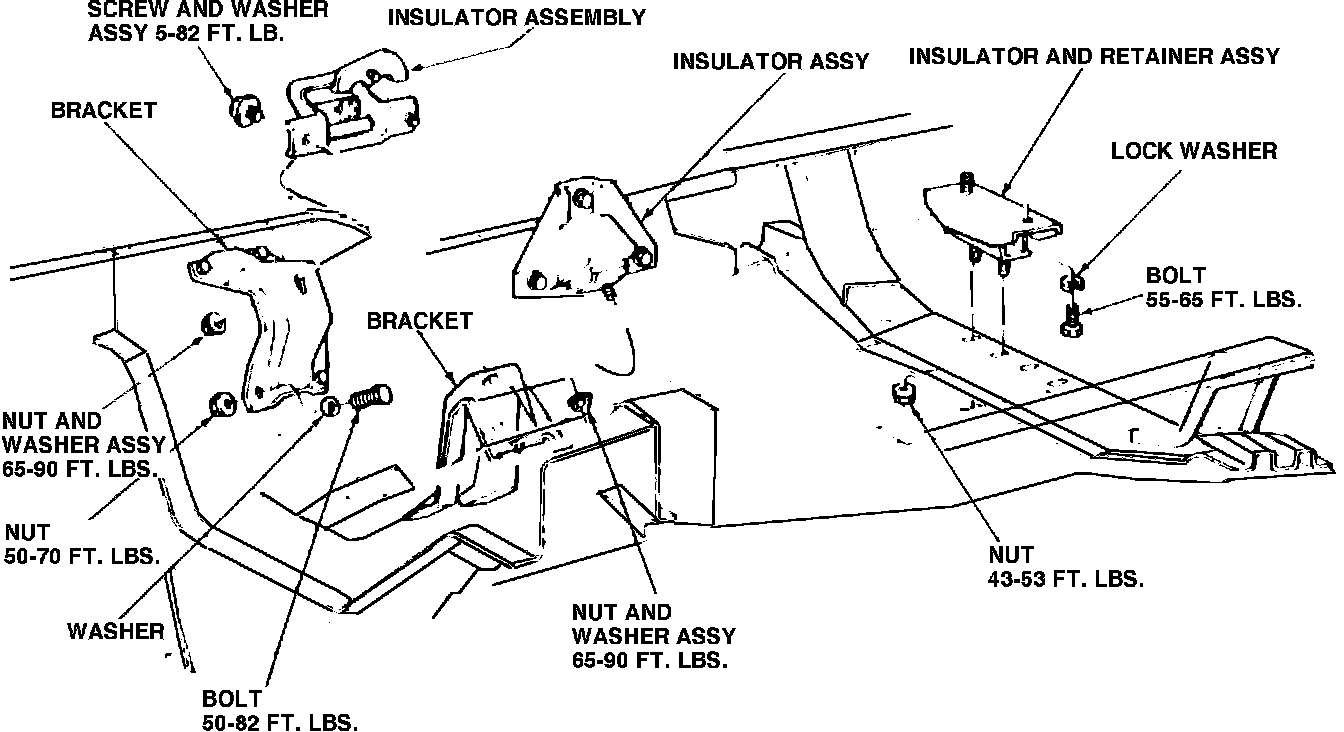

Fig. 2 Engine mounts. 1980 E-100---350 w/6-300 engine:

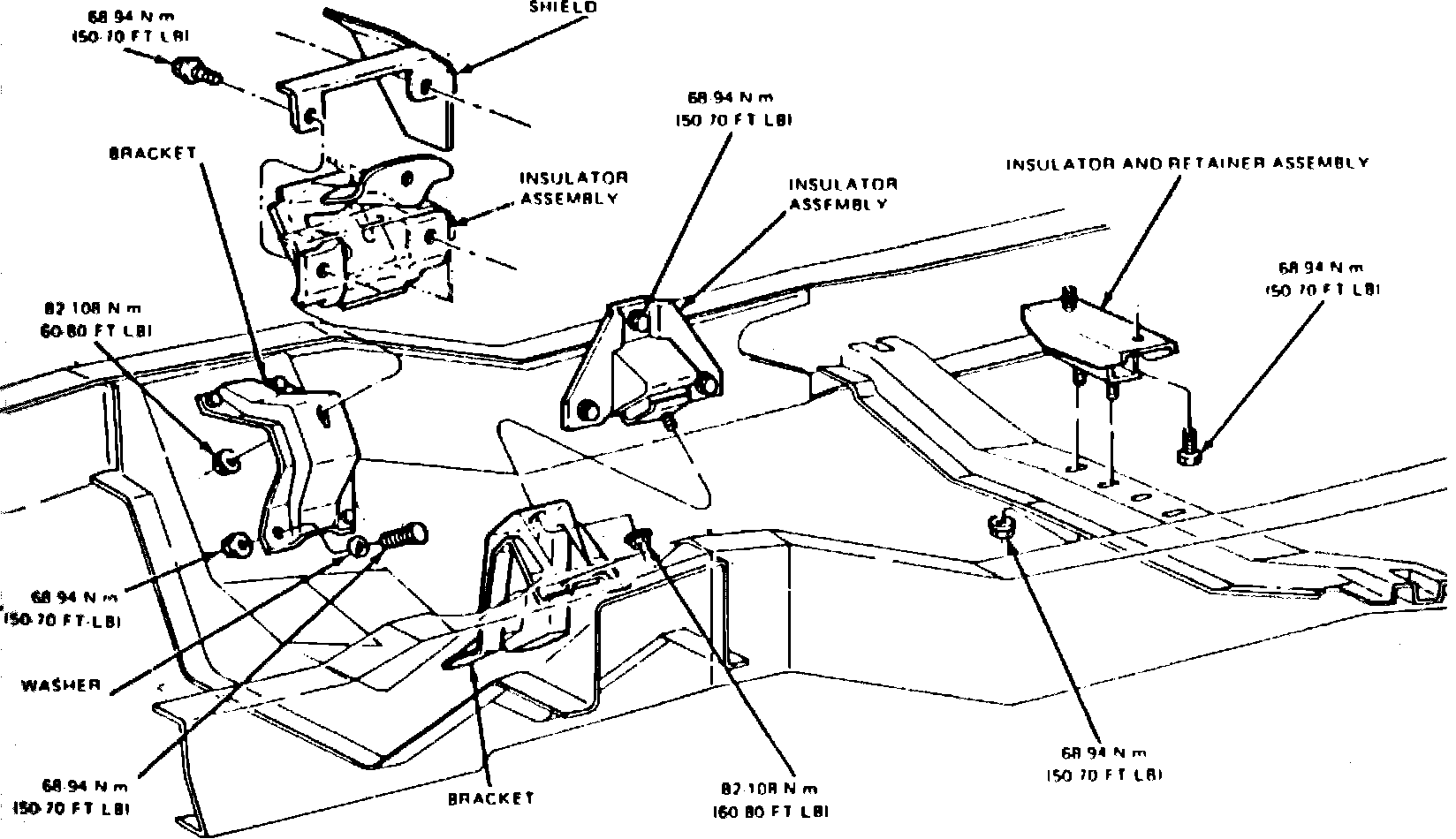

Fig. 3 Engine mounts. 1981---87 E-100---350 w/6-300 engine:

6-300
E-100-350
1. Raise and support vehicle.
2. Remove front insulator-to-support bracket attaching nuts and washers from both insulators, Figs. 2 and 3.
3. Raise engine slightly using a block of wood placed under oil pan and a suitable jack.
4. Remove support bracket attaching bolts and the brackets, if necessary.
5. Remove insulator attaching bolts and the insulator.
6. Reverse procedure to install.
