Electrical Diagrams

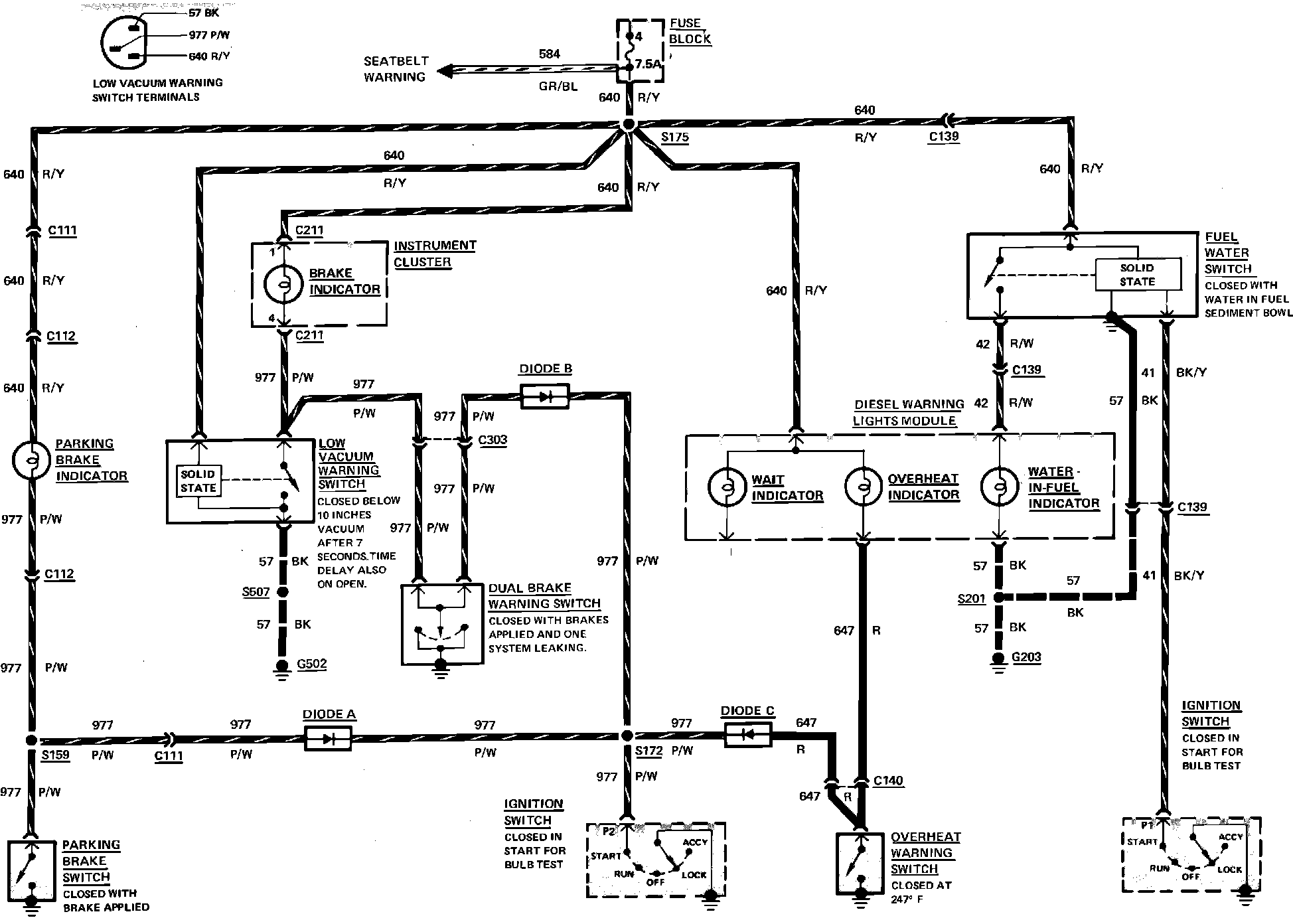

Fig. 95 Instrument panel warning indicator wiring circuit. 1983 Econoline with diesel engine:
