Ford Truck
>>
1983
>>
F 100 2WD Pickup V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Fig. 9 Calib. Code 3-55D-R0
Fig. 9 Calib. Code 3-55D-R0

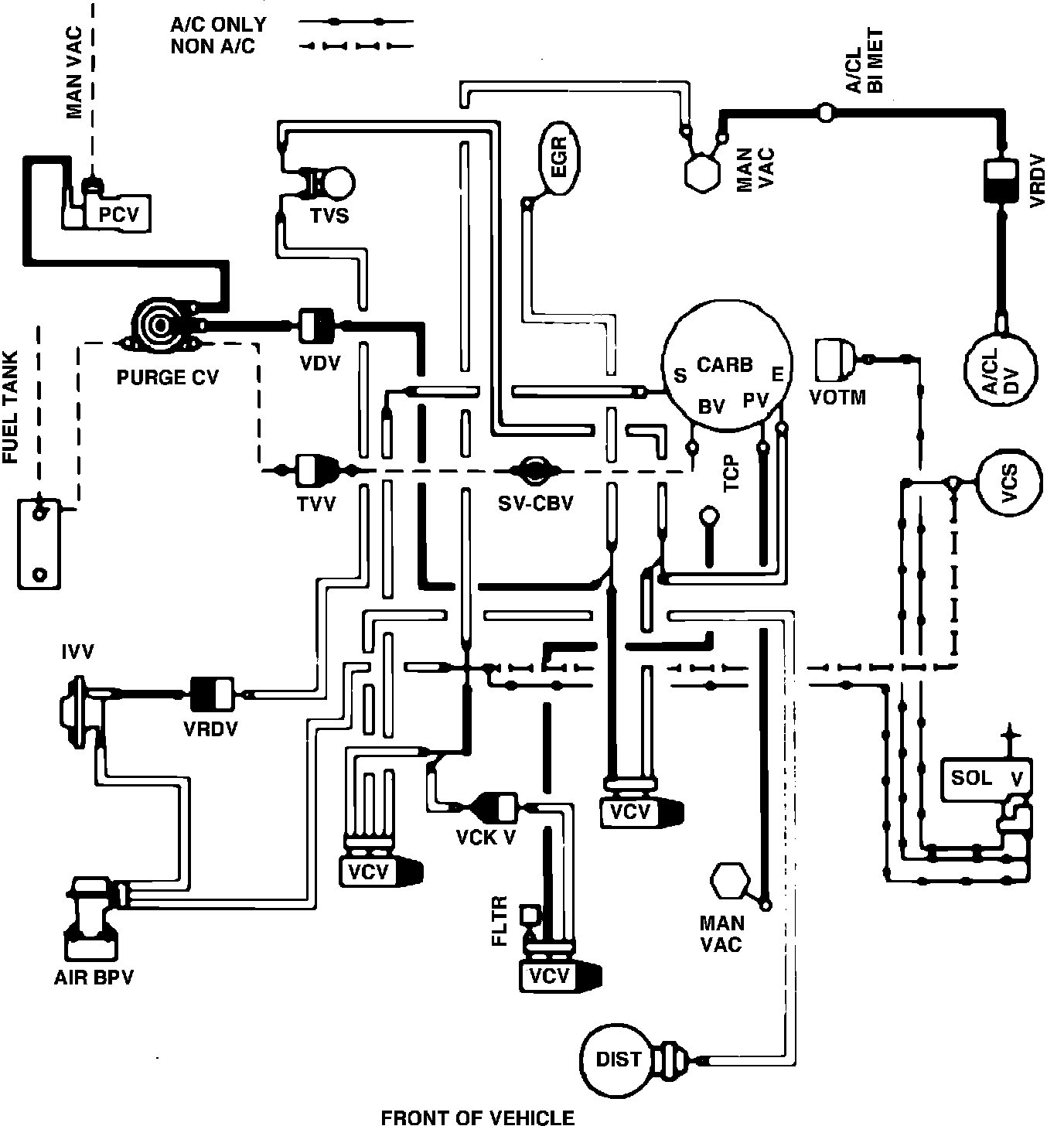

Fig. 9 Vacuum hose routing. 1983 V6-232 calib. code 3-55D-R0:
