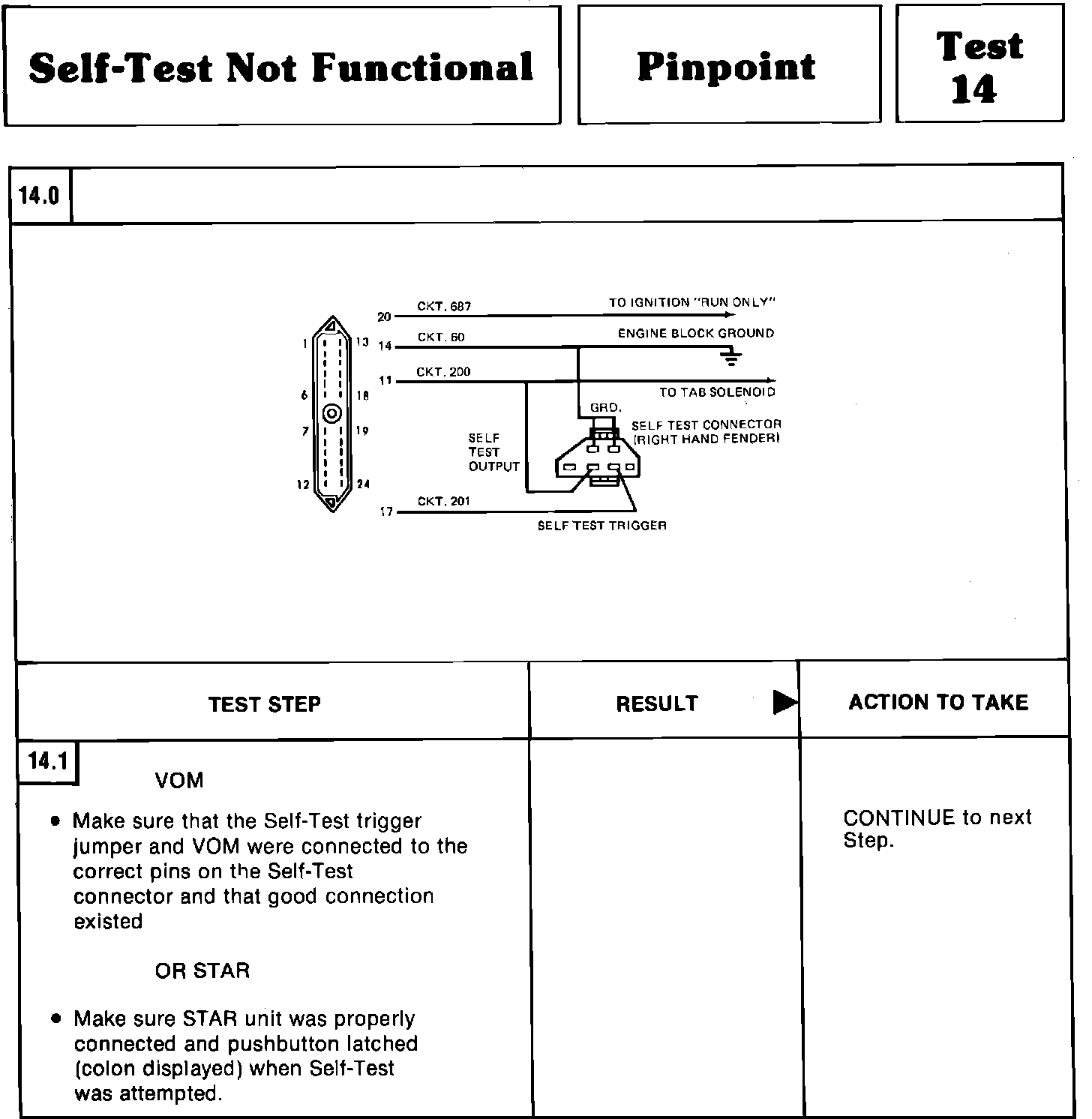

14.0 Thru 14.4 - Self-Test Not Functional
>>
14.0 (Wiring Diagram) Thru 14.1
14.0 (Wiring Diagram) Thru 14.1
