System Diagram

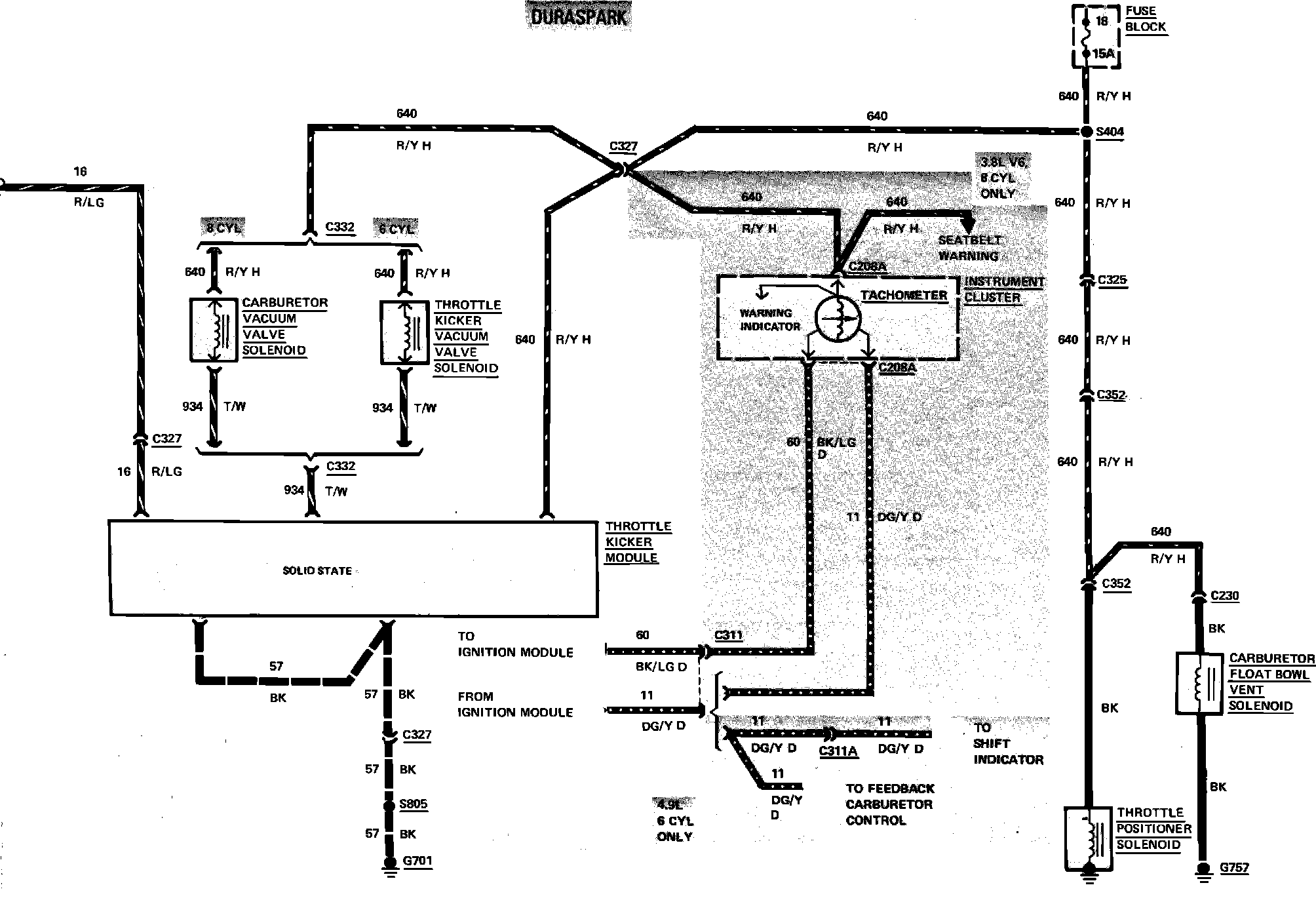

Fig. 83 Ignition & starting W/O EEC:



Fig. 83 Ignition & starting W/O EEC:



Fig.84 Ignition & starting (Part 1 of 2). 1983 Bronco & F100-350 EEC:



Fig.84 Ignition & starting (Part 2 of 2). 1983 Bronco & F100-350 EEC:
