Idle Speed Vacuum Solenoid Valve: Locations

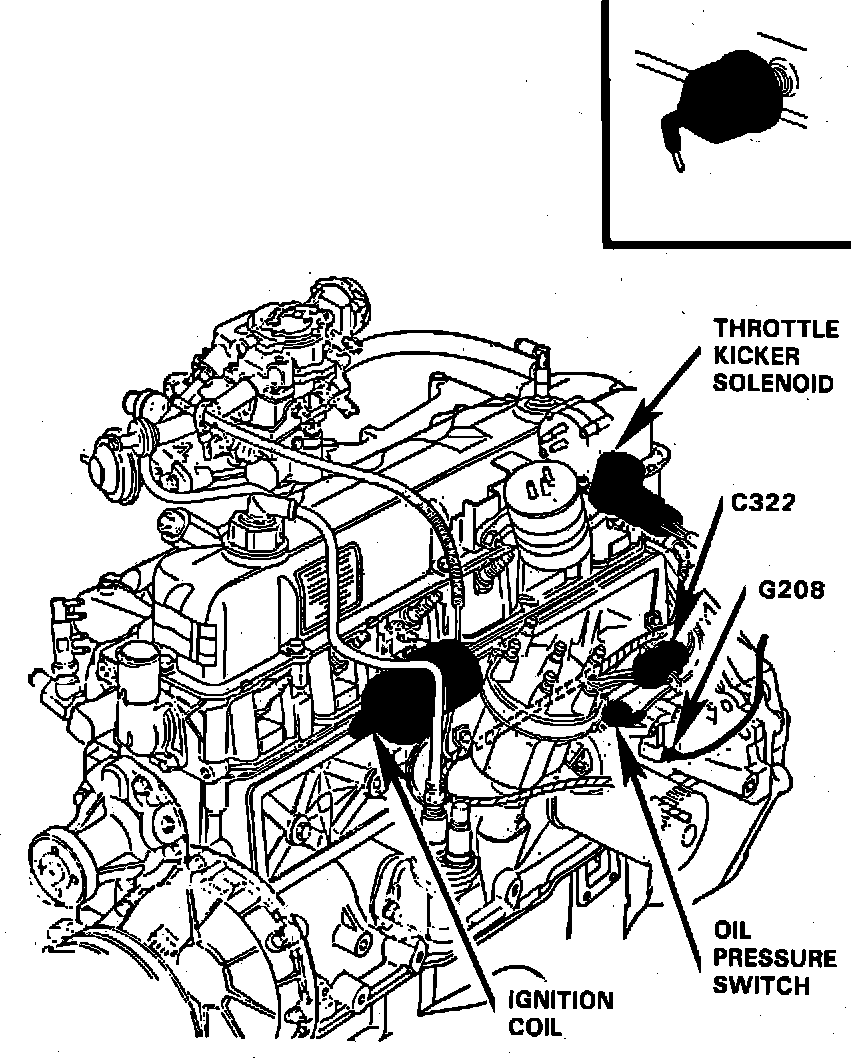

LH Rear Of Engine.:
Rear LH Side Of Valve Cover
Applicable to: 6-300/4.9L Engine

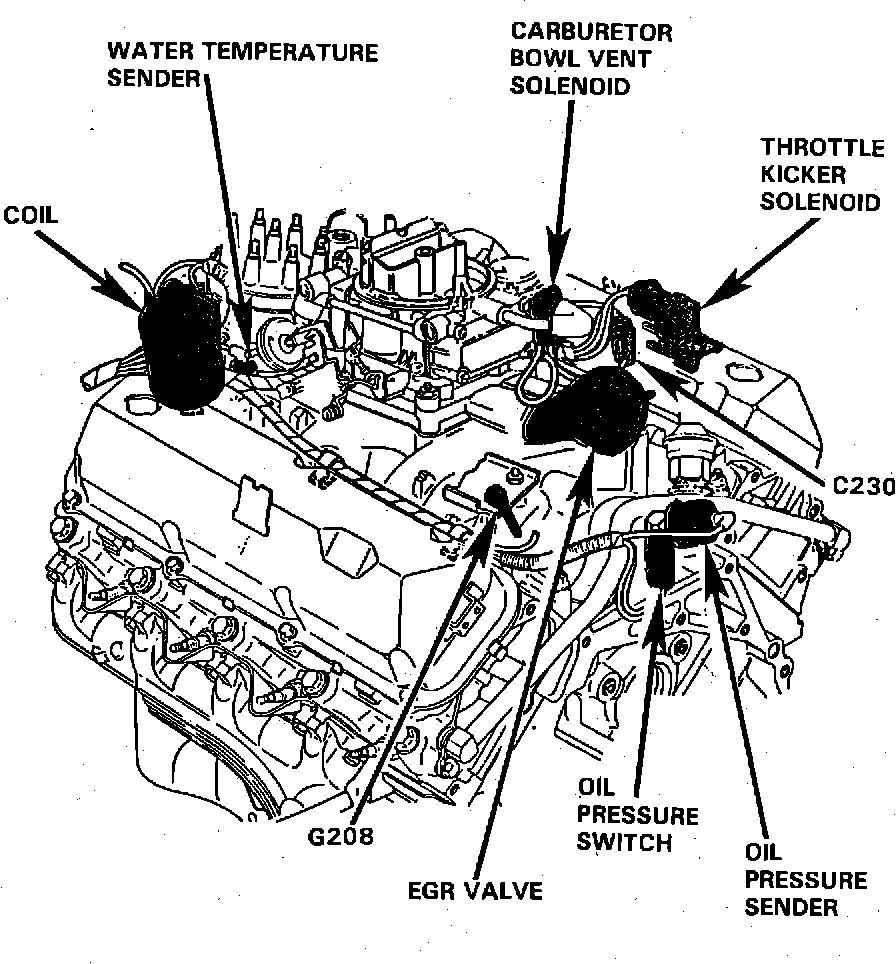

LH Side Of Engine.:
Rear LH Side Of Valve Cover
Applicable to: 1981 V8-302/5.0L & V8-352/5.8L Engines w/EEC

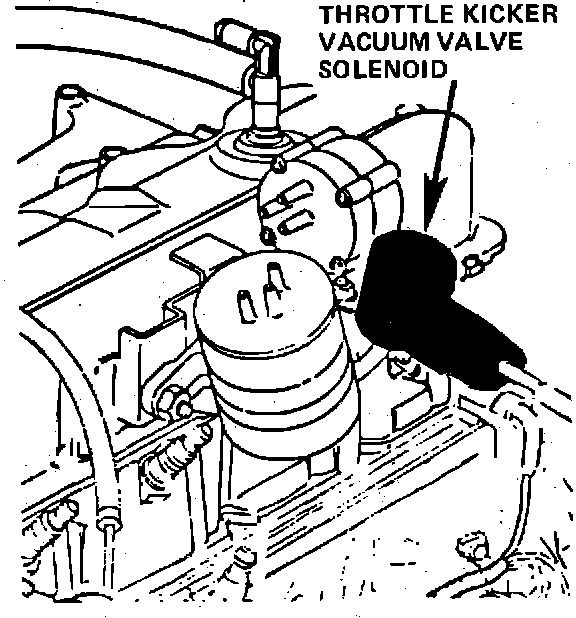

LH Side Of Engine.:
Rear LH Side Of Valve Cover
Applicable to: 1984-85 6-300/4.9L Engine (Over 8500 Lbs. GVW)
LH Side Of Engine.:
Rear LH Side Of Valve Cover
Applicable to: 1982-83 V8-302/5.0L & V8-351/5.8L Engines w/EEC

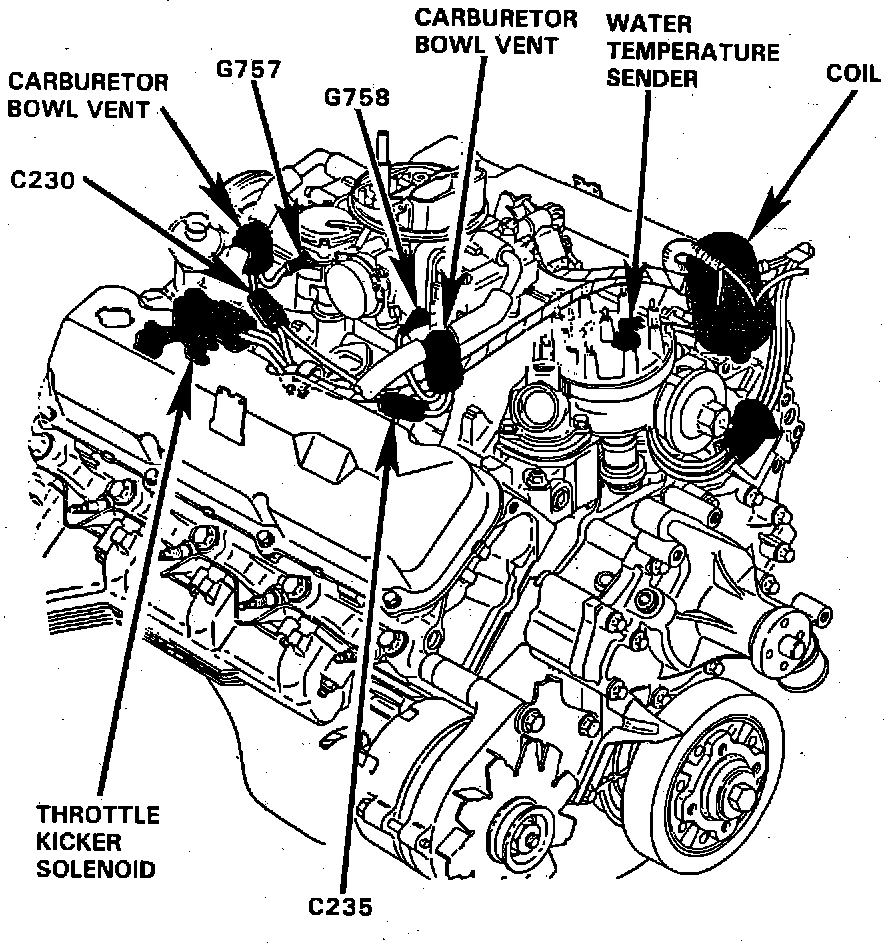

LH Side Of Engine.:
Rear LH Side Of Valve Cover
Applicable to: 1984-85 V8-460/7.5L Engine

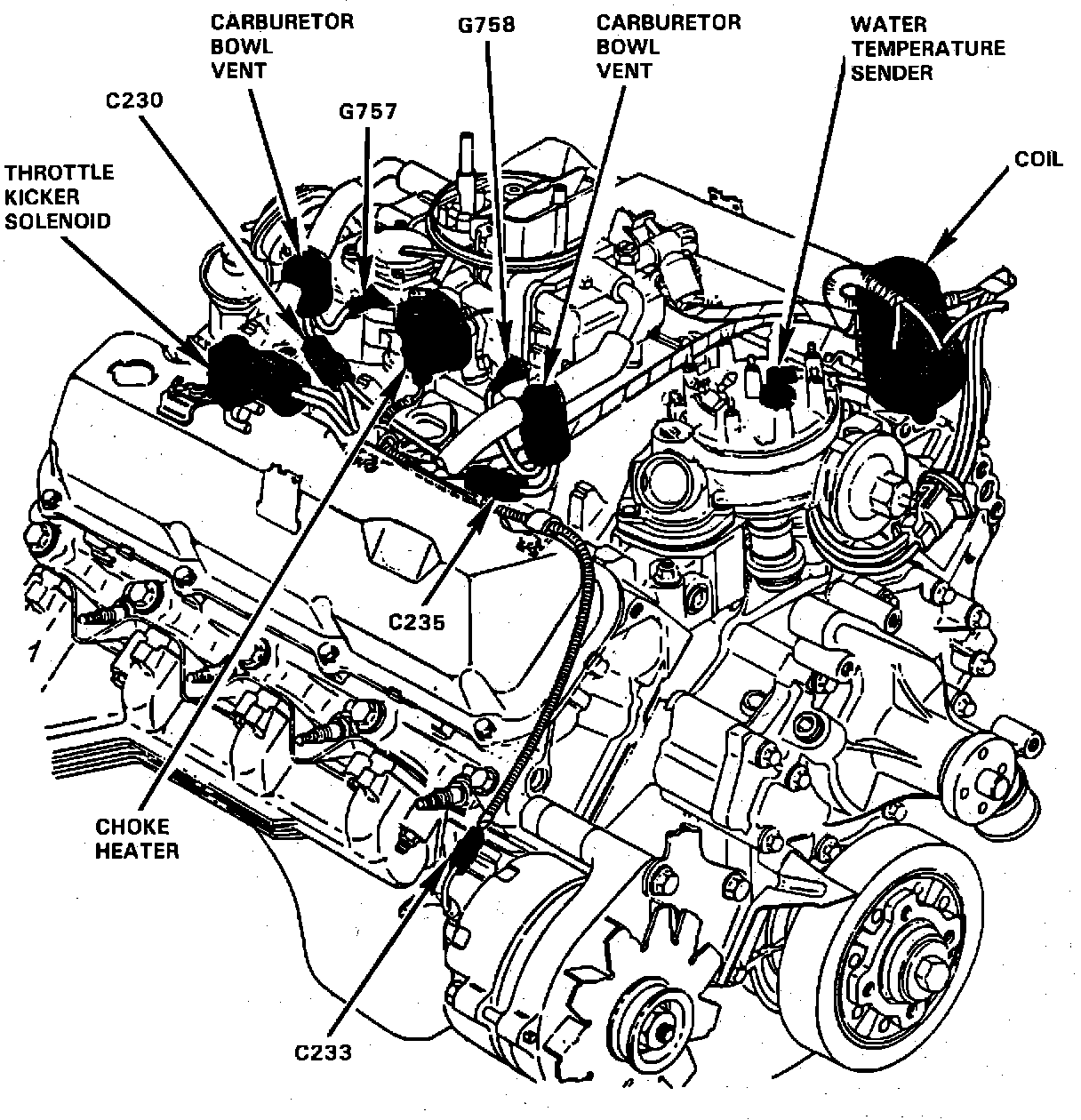

RH Side Of Engine.:
Rear LH Side Of Valve Cover
Applicable to: 1984-85 V8-460/7.5L Engine w/Auto. Trans.
RH Side Of Engine. 5.0 5.8:
LH Side Of Engine. 5.0 5.8:
Rear LH Side Of Valve Cover
Applicable to: 1984-85 V8-351/5.8L & Carbureted V8-302/5.0L Engines w/EEC-IV (Under 8500 Lbs. GVW)
RH Side Of Engine.:
Rear LH Side Of Valve Cover
Applicable to: 1985 V8-460/7.5L Engine w/Manual Trans.
