Clutch Slave Cylinder - Attachment Precautions

83ford6 Article No. 83-23-16

CLUTCH HYDRAULIC - SLAVE CYLINDER ATTACHMENT - (6.9L DIESEL/7.5L)


LIGHT TRUCKS 1983 F-250 HD/F-350

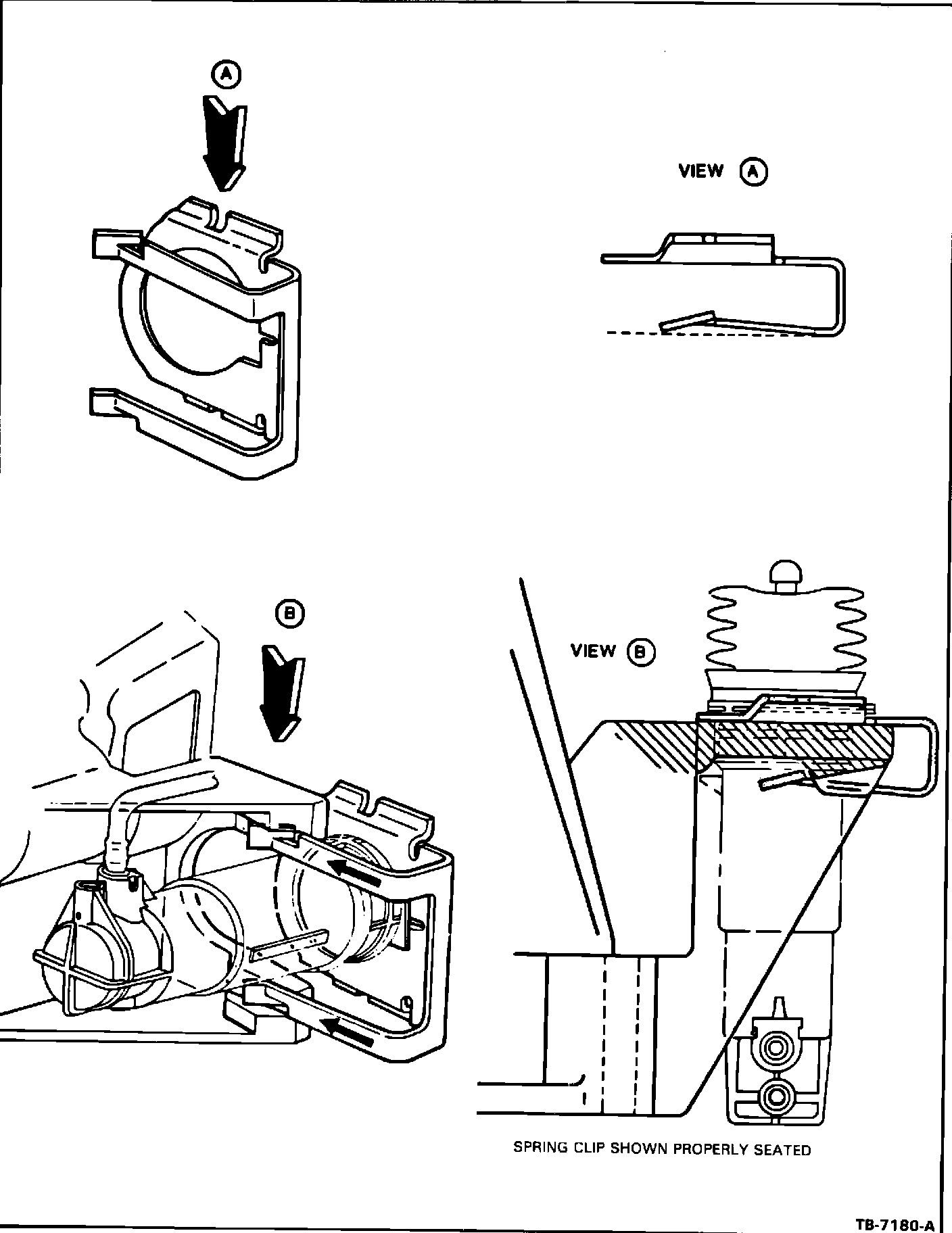

Figure 10:




When servicing the slave cylinder, care must be taken during reinstallation to make sure both tabs on the spring clip (Figure 10) are properly seated into place on the flywheel housing. Incorrectly seated clips could work loose from the housing and cause the slave cylinder to become disengaged, resulting in an inoperative clutch system and potential damage to the slave cylinder internal components.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
