Engine Controls

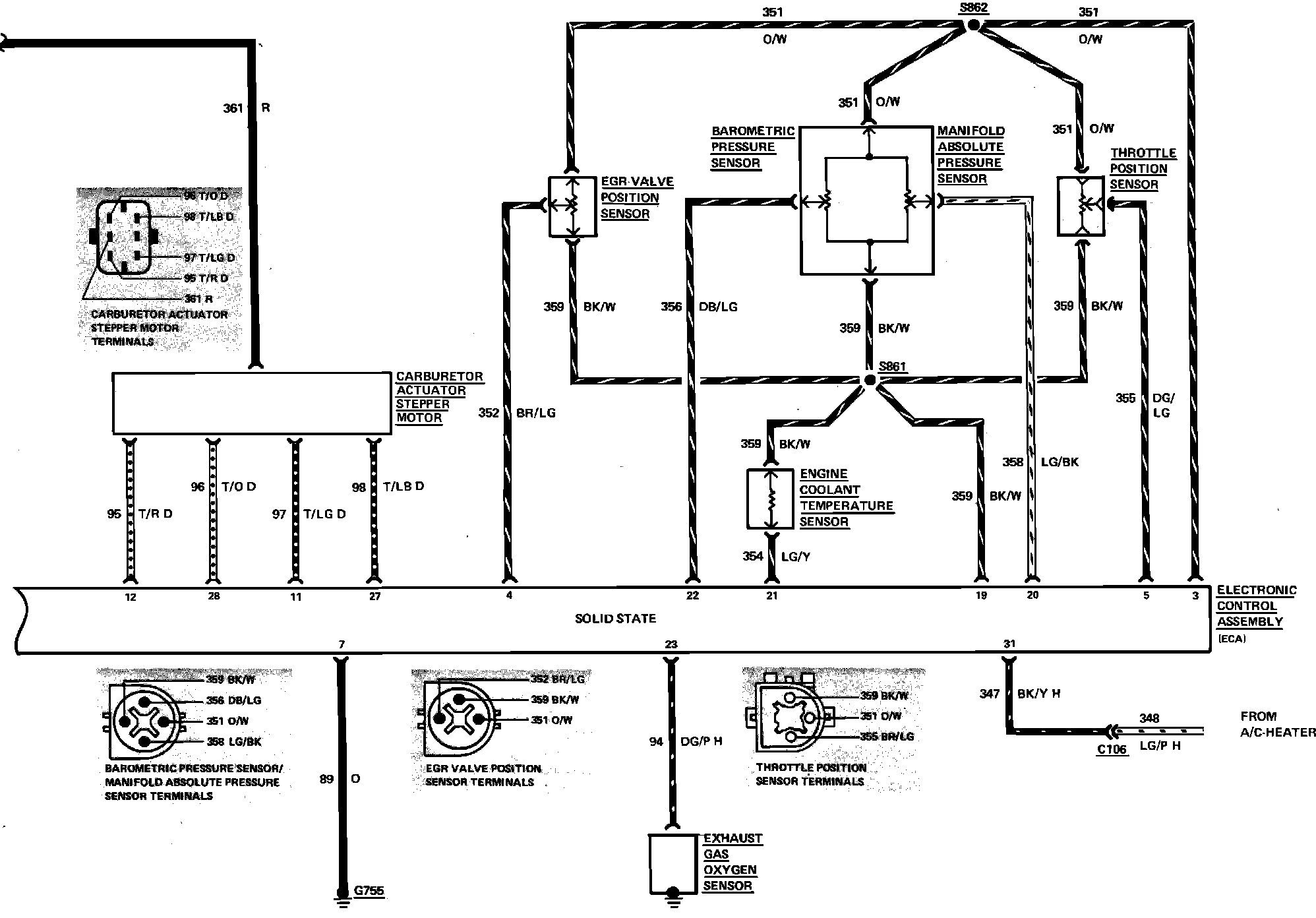

Fig. 52 Electronic engine control wiring circuit (Part 1 of 2). 1983 Bronco & F100-350 with V8-351 engine:

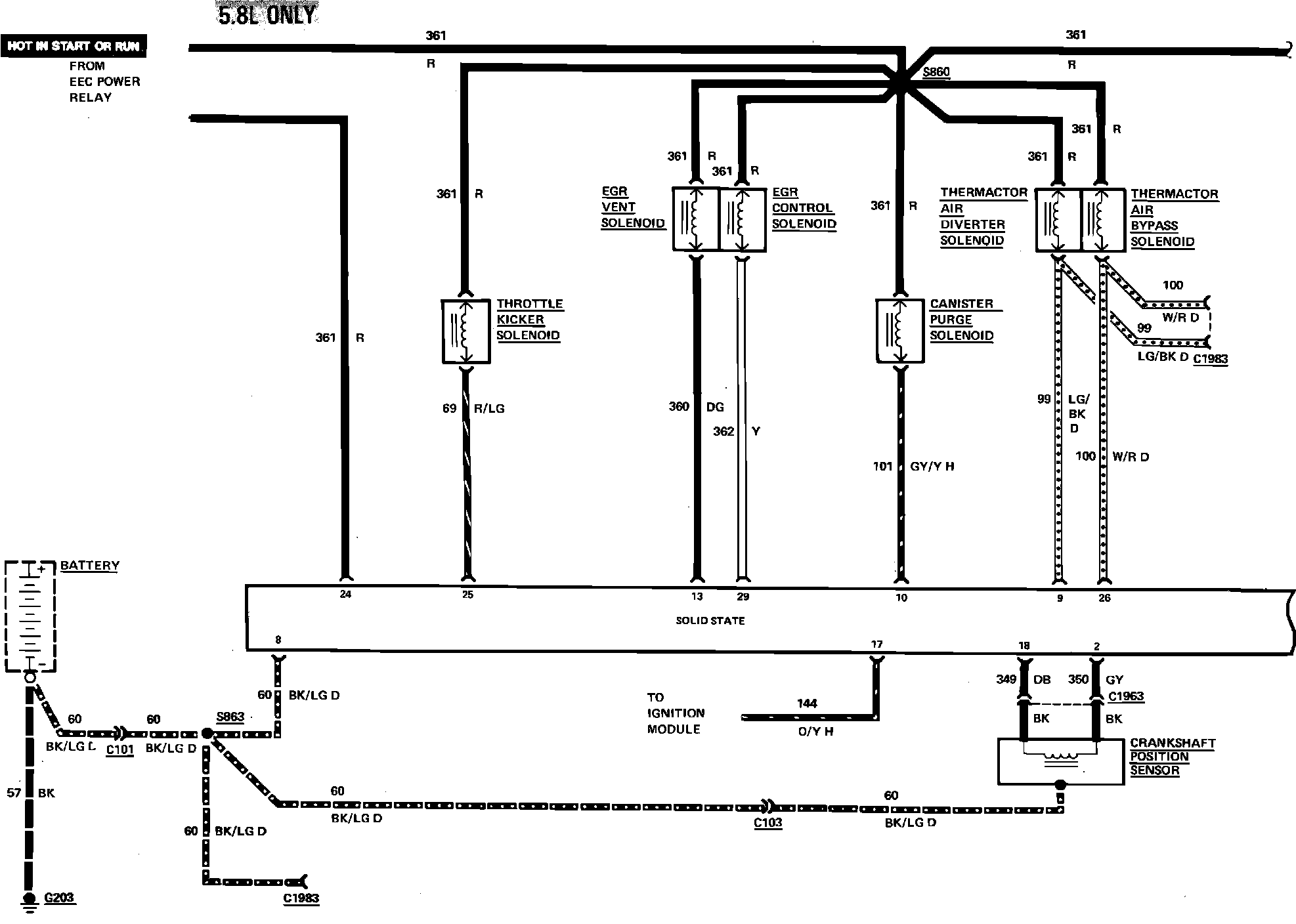

Fig. 52 Electronic engine control wiring circuit (Part 2 of 2). 1983 Bronco & F100-350 with V8-351 engine:
