Choke Heater
>>
With Alternator Warning Indicator
With Alternator Warning Indicator

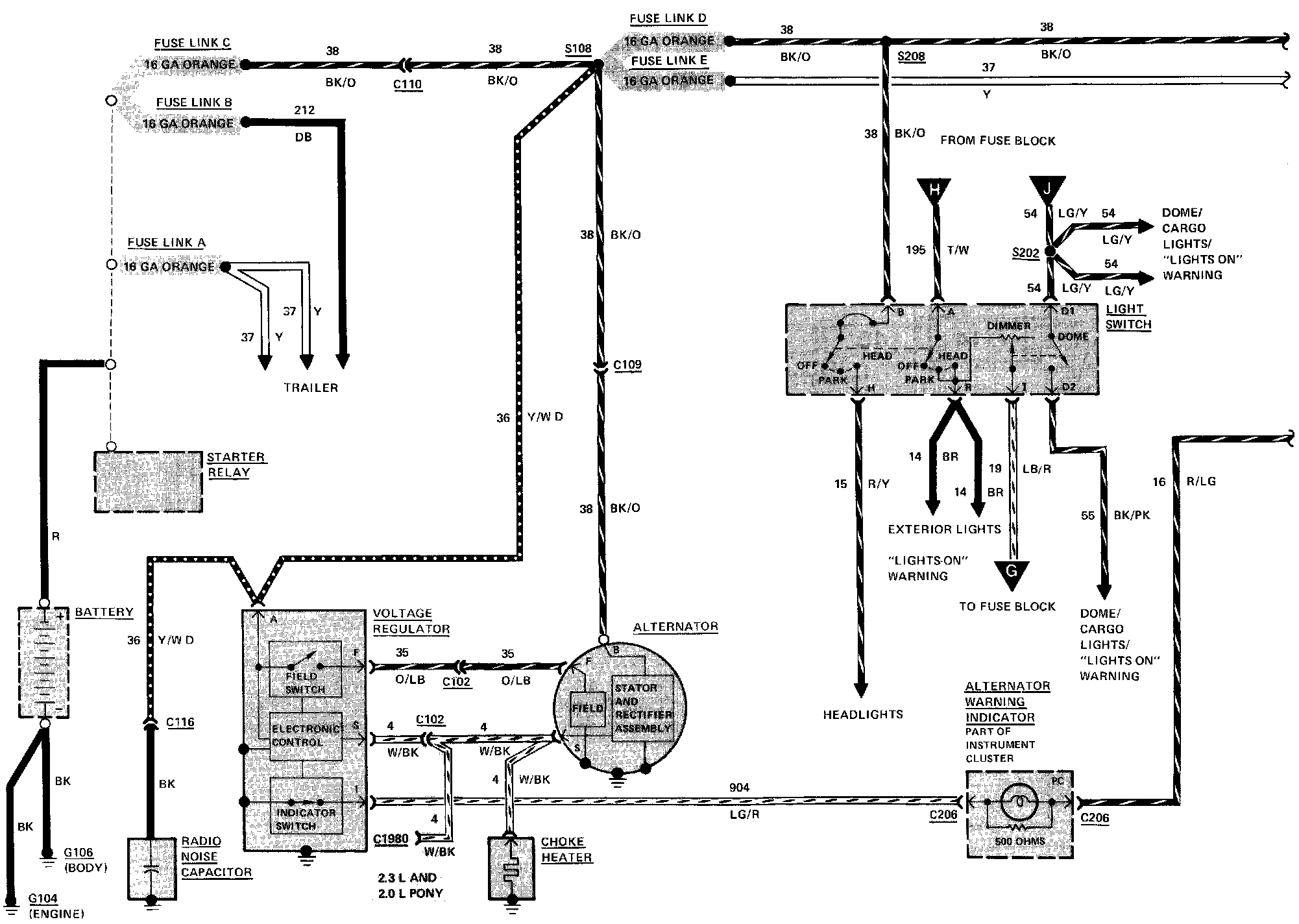

With Alternator Warning Indicator:

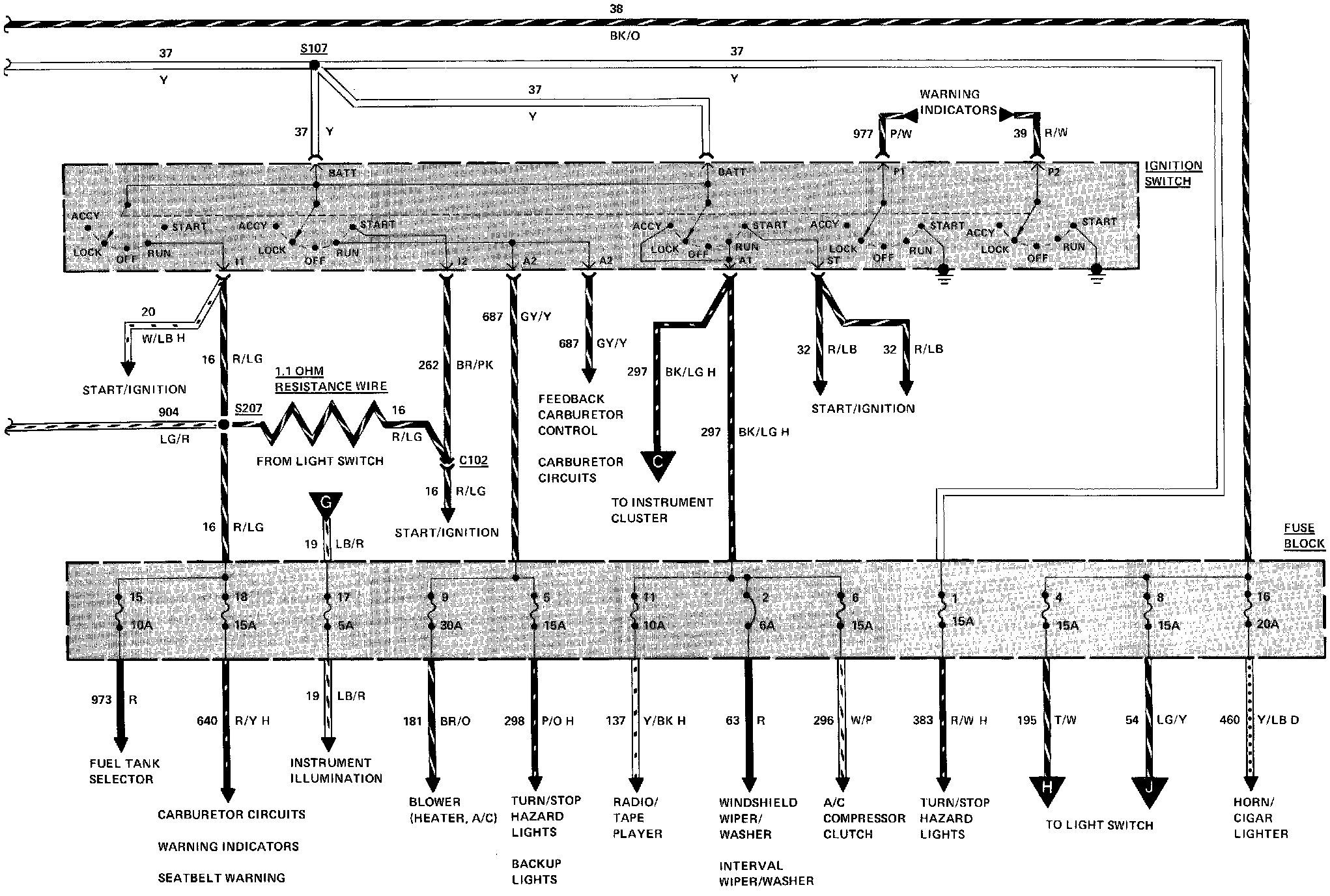

With Alternator Warning Indicator:

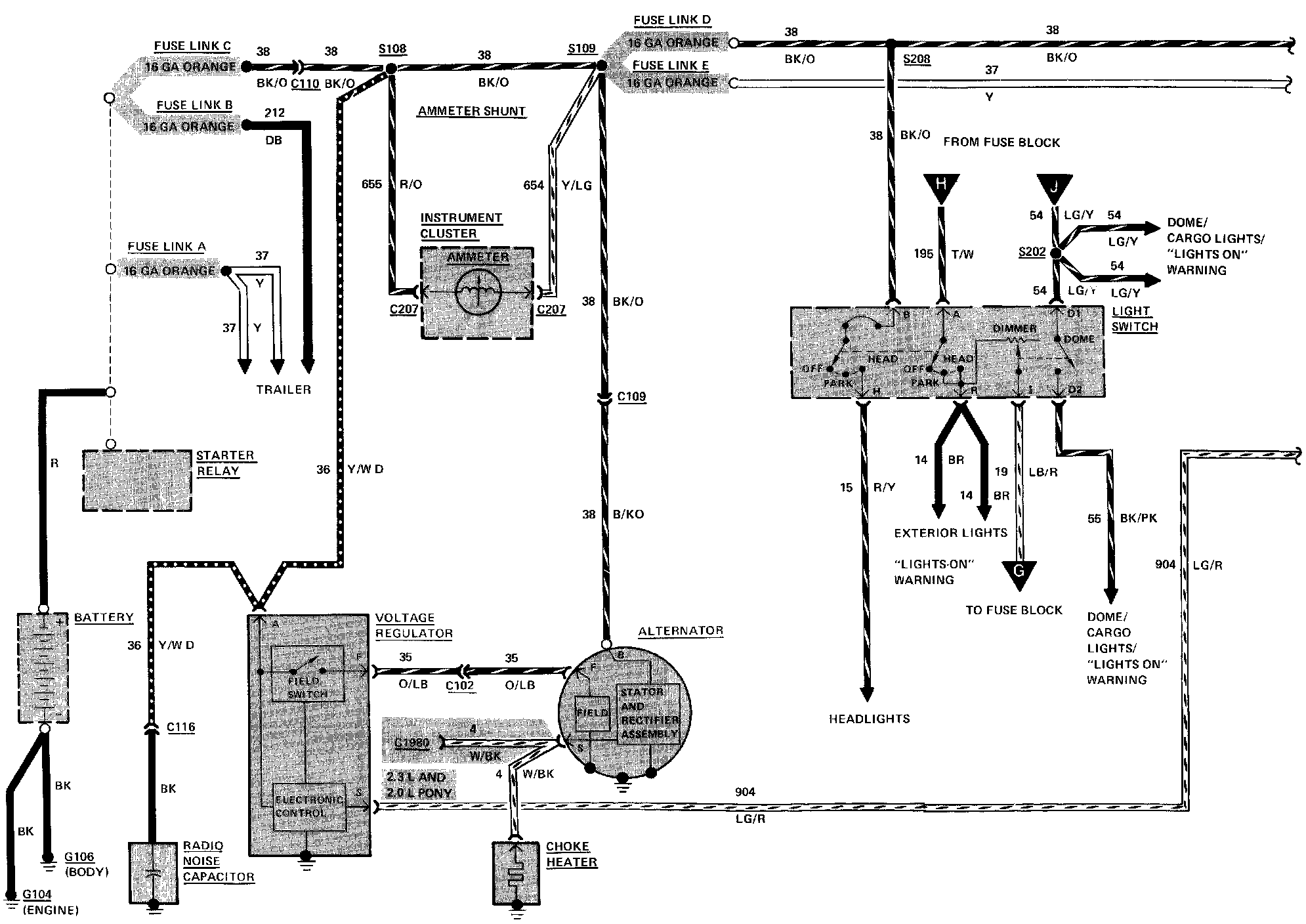

With Ammeter:

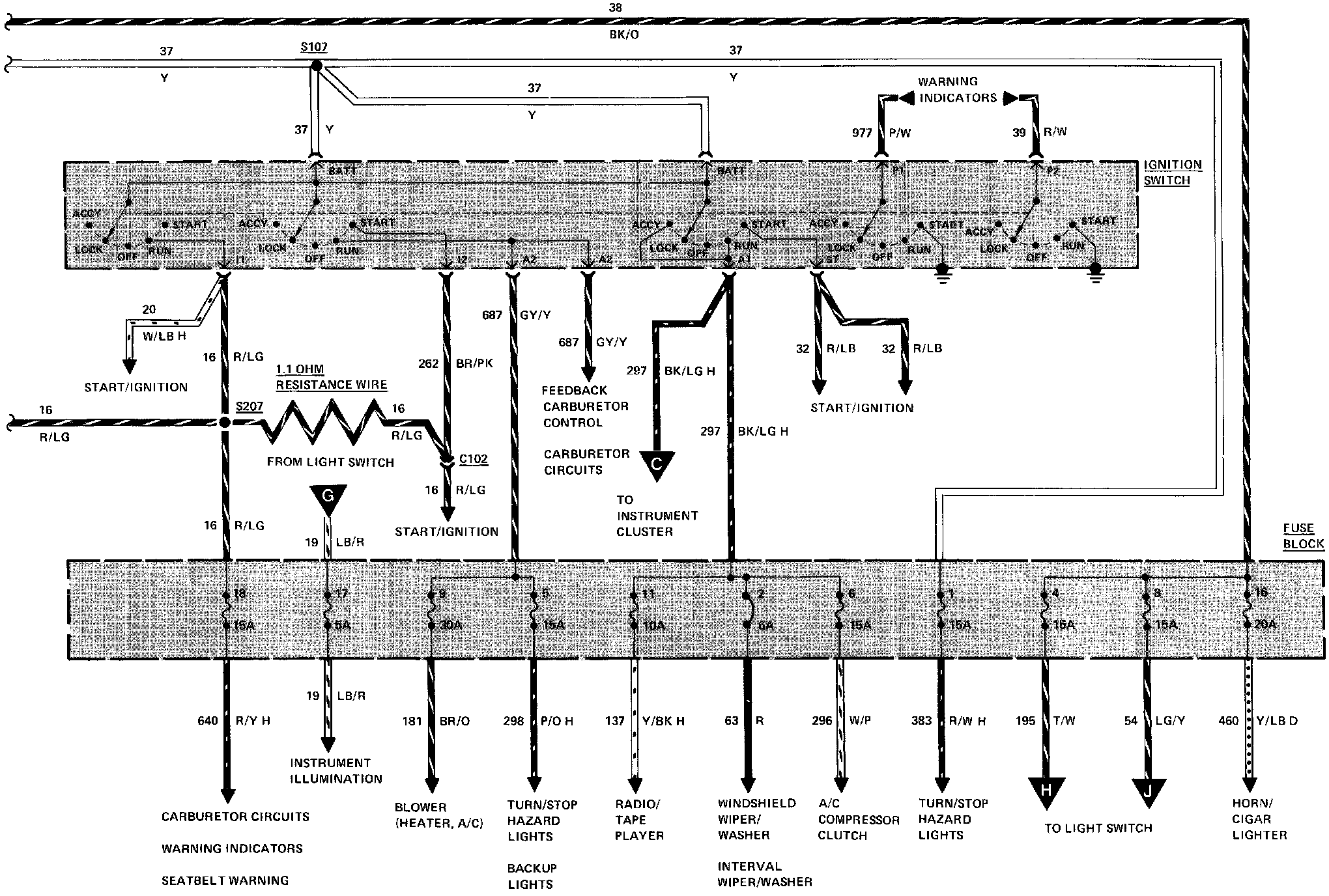

With Ammeter:
