Front Crankshaft Seal: Service and Repair

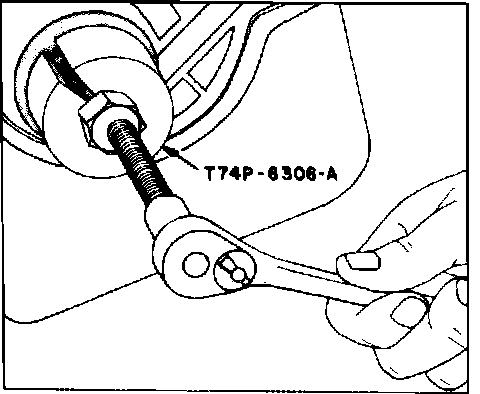

Fig. 6 Crankshaft sprocket removal:

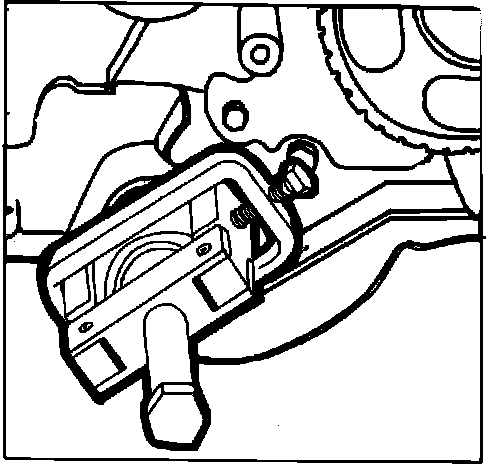

Fig. 7 Crankshaft front oil seal removal:

CRANKSHAFT OIL SEAL
1. Remove crankshaft sprocket with tool T74P-6306-A, Fig. 6.
2. Remove crankshaft oil seal with tool A7082-1A, Fig. 7.
3. Install a new crankshaft oil seal with tool T74P-6150-A.
4. Install crankshaft sprocket with tool T74P-6306-A.

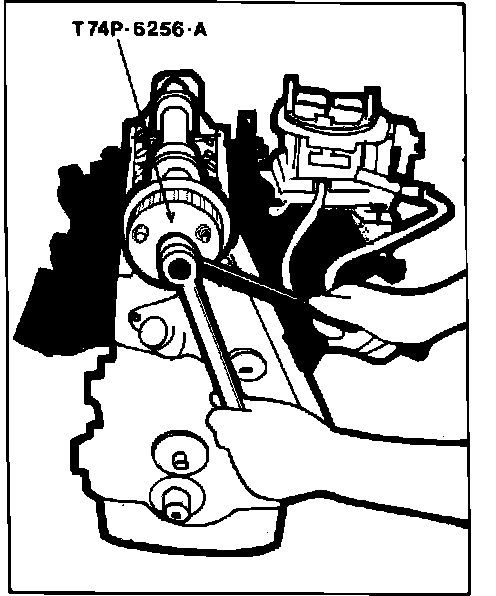

Fig. 8 Camshaft or auxiliary shaft sprocket removal:

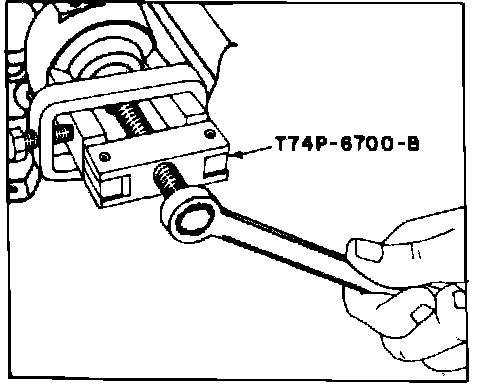

Fig. 9 Camshaft or auxiliary shaft seal removal:

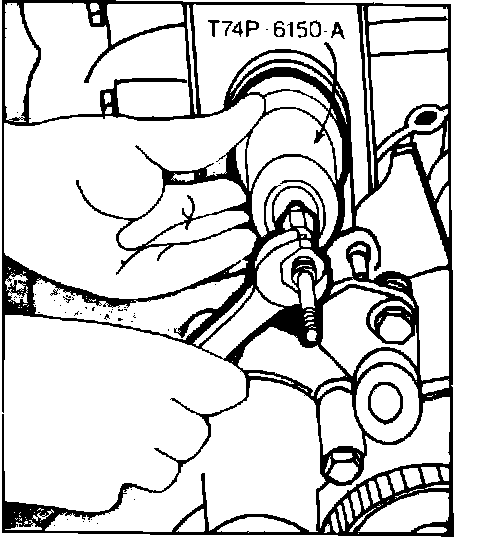

Fig. 10 Camshaft seal installation:

CAMSHAFT & AUXILIARY SHAFT OIL SEALS
1. Remove camshaft or auxiliary shaft sprocket with tool T74P-6256-A, Fig. 8.
2. Remove camshaft or auxiliary shaft seal with tool T74P-6700-B, Fig. 9.
3. Install a new oil seal with tool T74P-6150-A, Fig. 10.
4. Install camshaft or auxiliary shaft sprocket with tool T74P-6256-A with center arbor removed.
