Fig. 7 Calib. Codes 3-49S-R1 & 3-50X-R10
Fig. 7 Calib. Codes 3-49S-R1 & 3-50X-R10

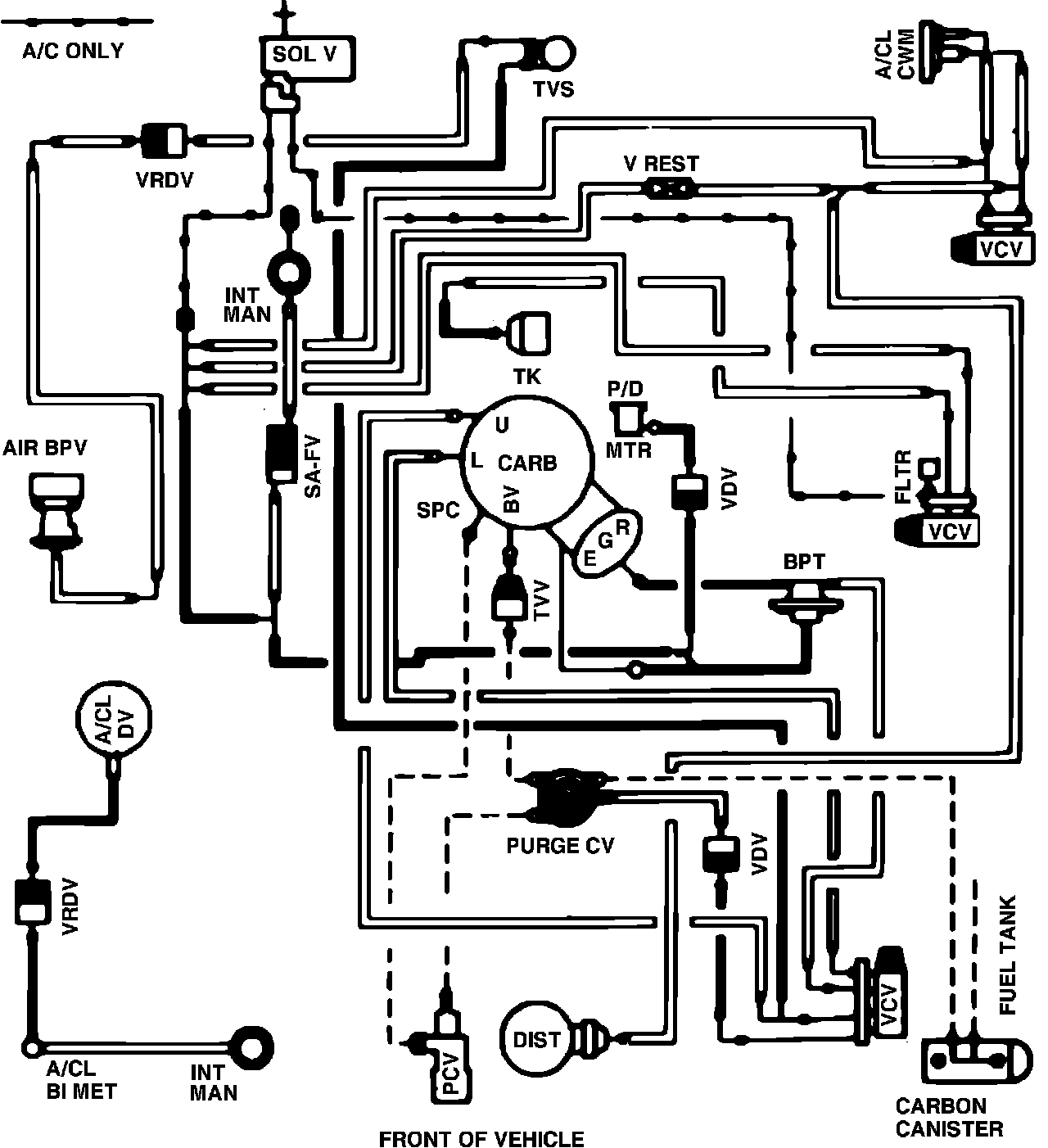

Fig. 7 Vacuum hose routing. 1983 4-140 calib. codes 3-49S-R1 & 3-50X-R10:
