Diesel Data
: Automotive Repair
Home
>>
Ford Truck
>>
1983
>>
Ranger 2WD L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Locations
>>
MCU System
MCU System

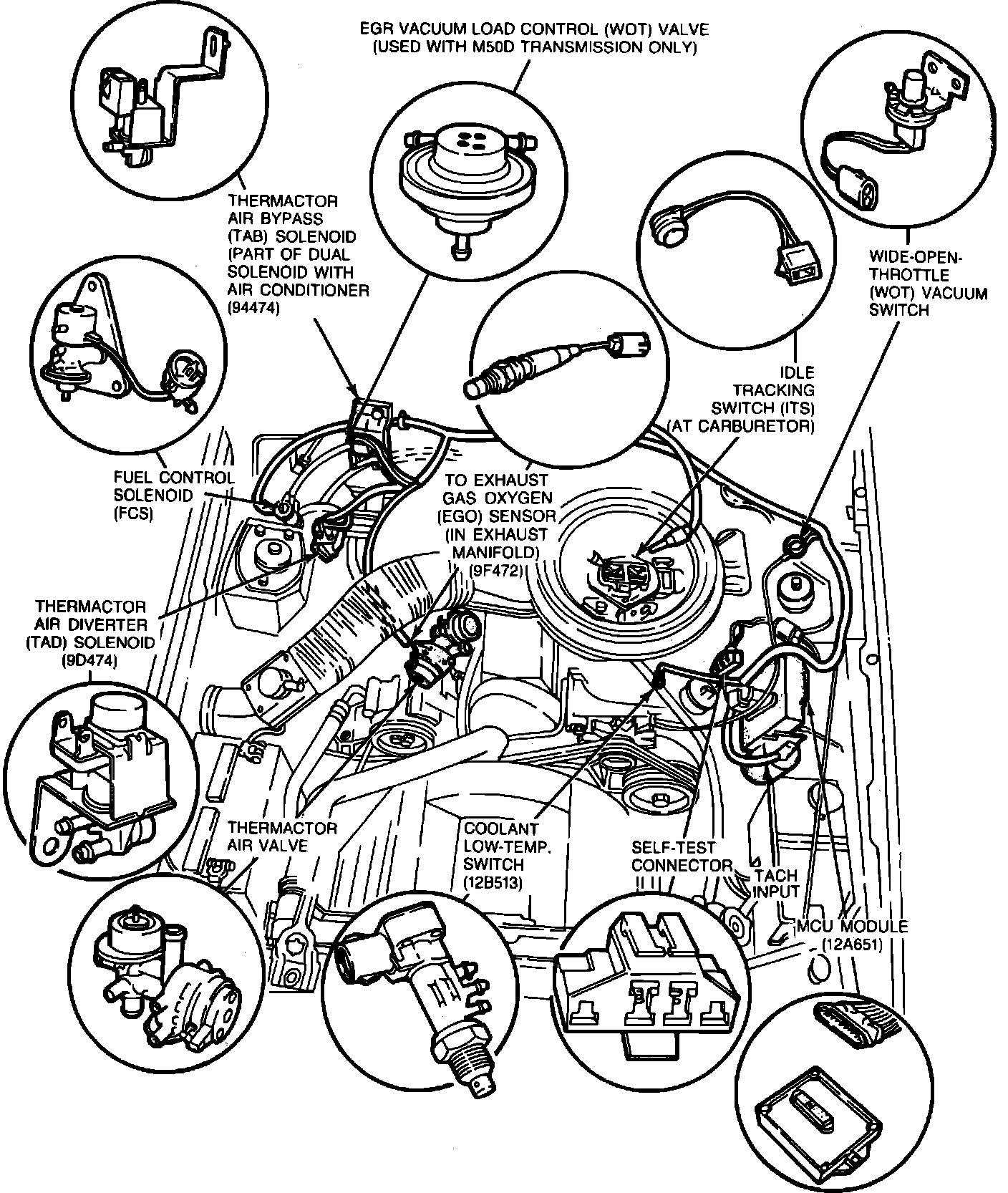

Fig. 29 MCU System. 1983 - 84 4-122 & 140:
