Installation

Installing Anti-Rattle Clip:

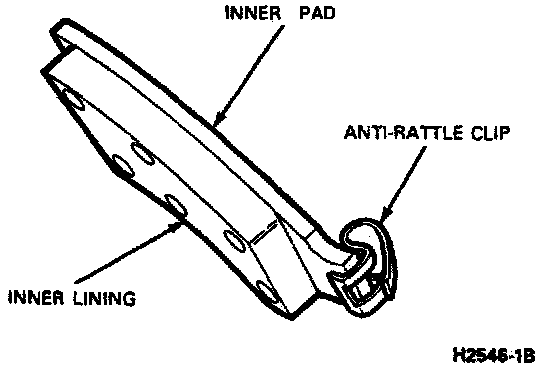

1. Place a new anti-rattle clip on the lower end of the inner pad. Be sure the tabs on the clip are positioned properly and the clip is fully seated.

Installing Inner Shoe And Anti-Rattle Clip:

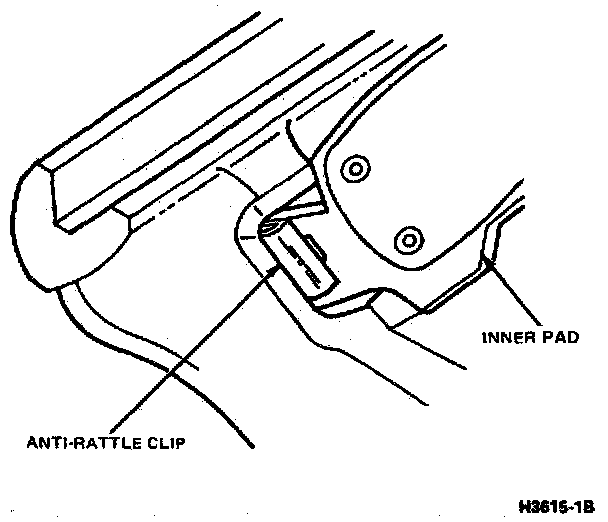

2. Position the inner pad and anti-rattle clip in the pad abutment with the anti-rattle clip tab against the pad abutment and the loop-type spring away from the rotor. Compress the anti-rattle clip and slide the upper end of the pad in position.

Outer Pad Installation:

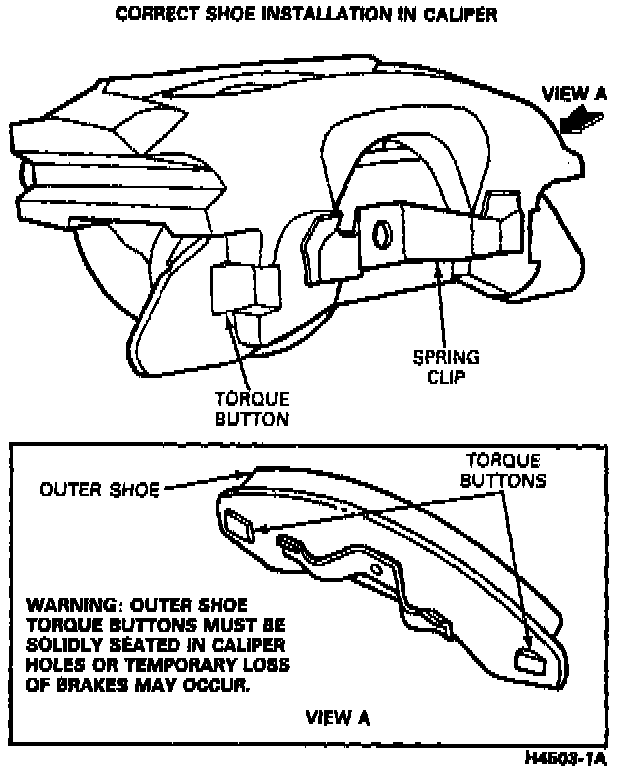

3. Install the outer pad, making sure the torque buttons on the pad are seated solidly in the matching holes in the caliper.
4. Install the caliper on the spindle, making sure the mounting surfaces are free of dirt and lubricate the caliper grooves with disc brake caliper grease. See Caliper/Service and Repair Service and Repair
5. Install wheel and tire assembly.
6. Lower the vehicle, check the brake fluid level and fill as necessary. Check brakes for proper operation.

WARNING: Before moving vehicle, pump brake pedal several times to be sure it is firm. Do not move vehicle until a firm pedal is obtained.
