W/Manual Transmission
W/Manual Transmission

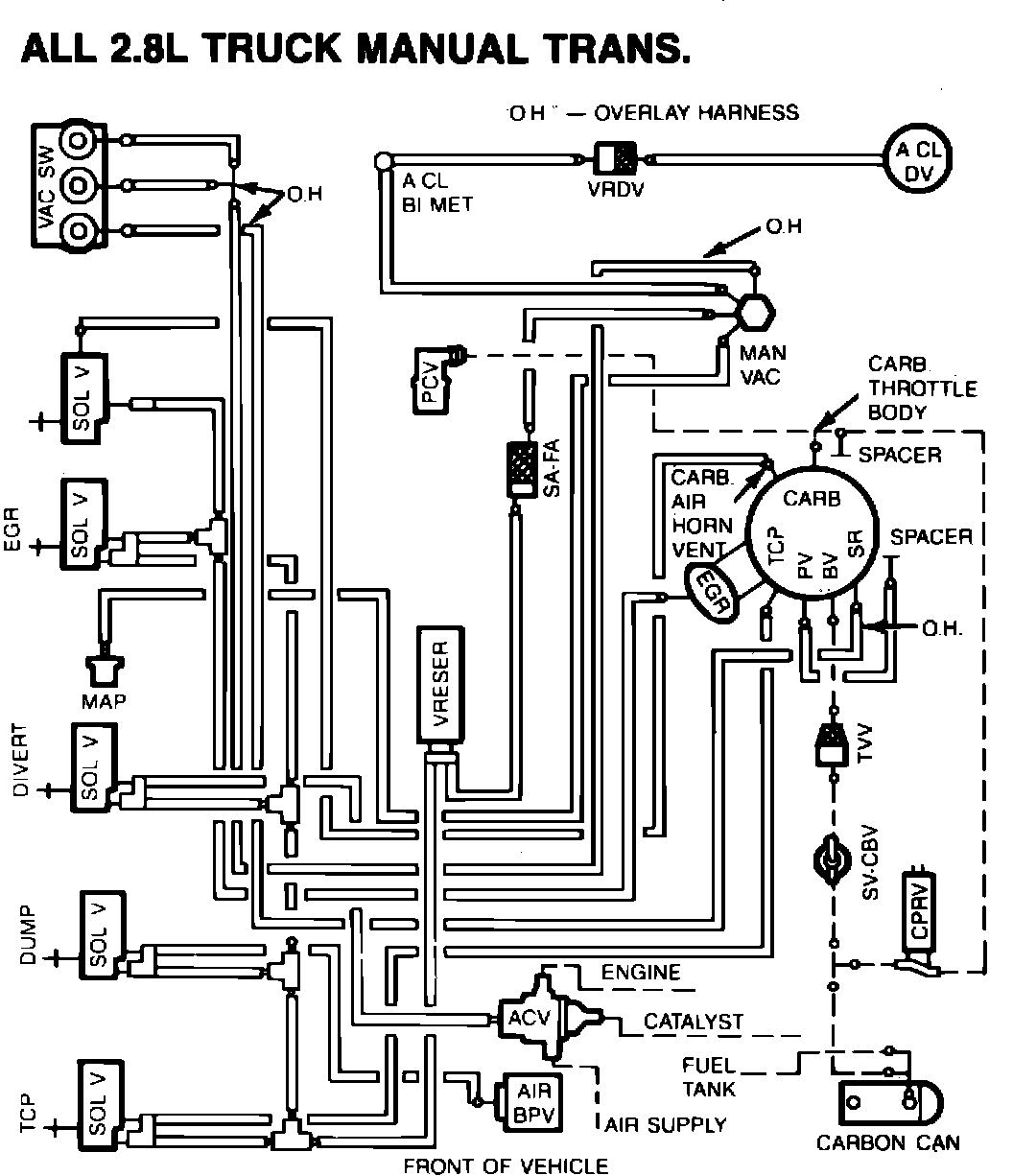

Fig. 36A Vacuum Schematic. 1983 V6-171 w/ manual transmission:
