Diesel Data
: Automotive Repair
Home
>>
Ford Truck
>>
1983
>>
Ranger 2WD V6-171 2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
H - EGR Valve Position
>>

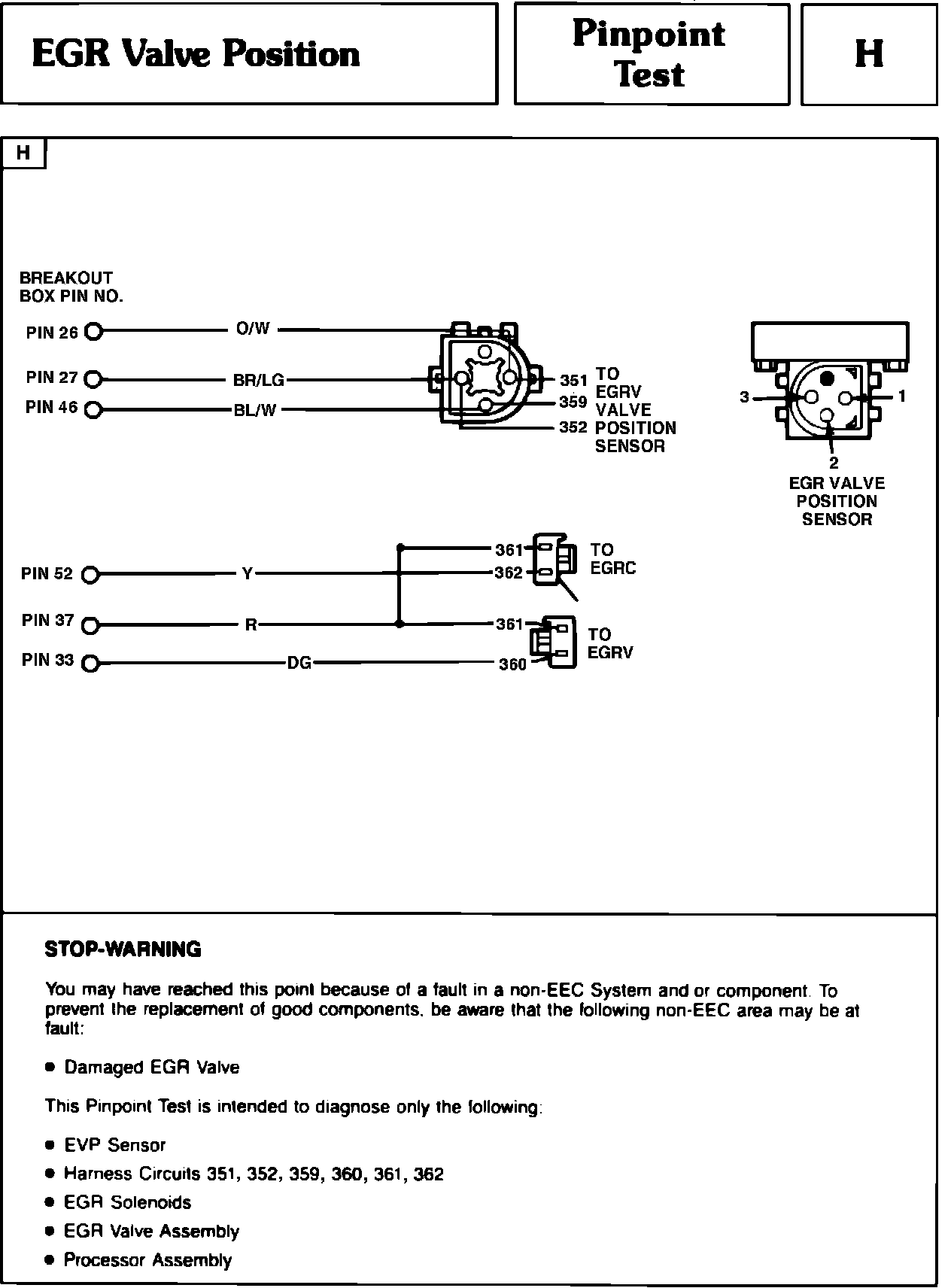

Testing Notes and Wiring Diagram
Testing Notes and Wiring Diagram
