Ranger 2WD V6-171 2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Block Diagrams
>>
With Automatic Transmission
With Automatic Transmission

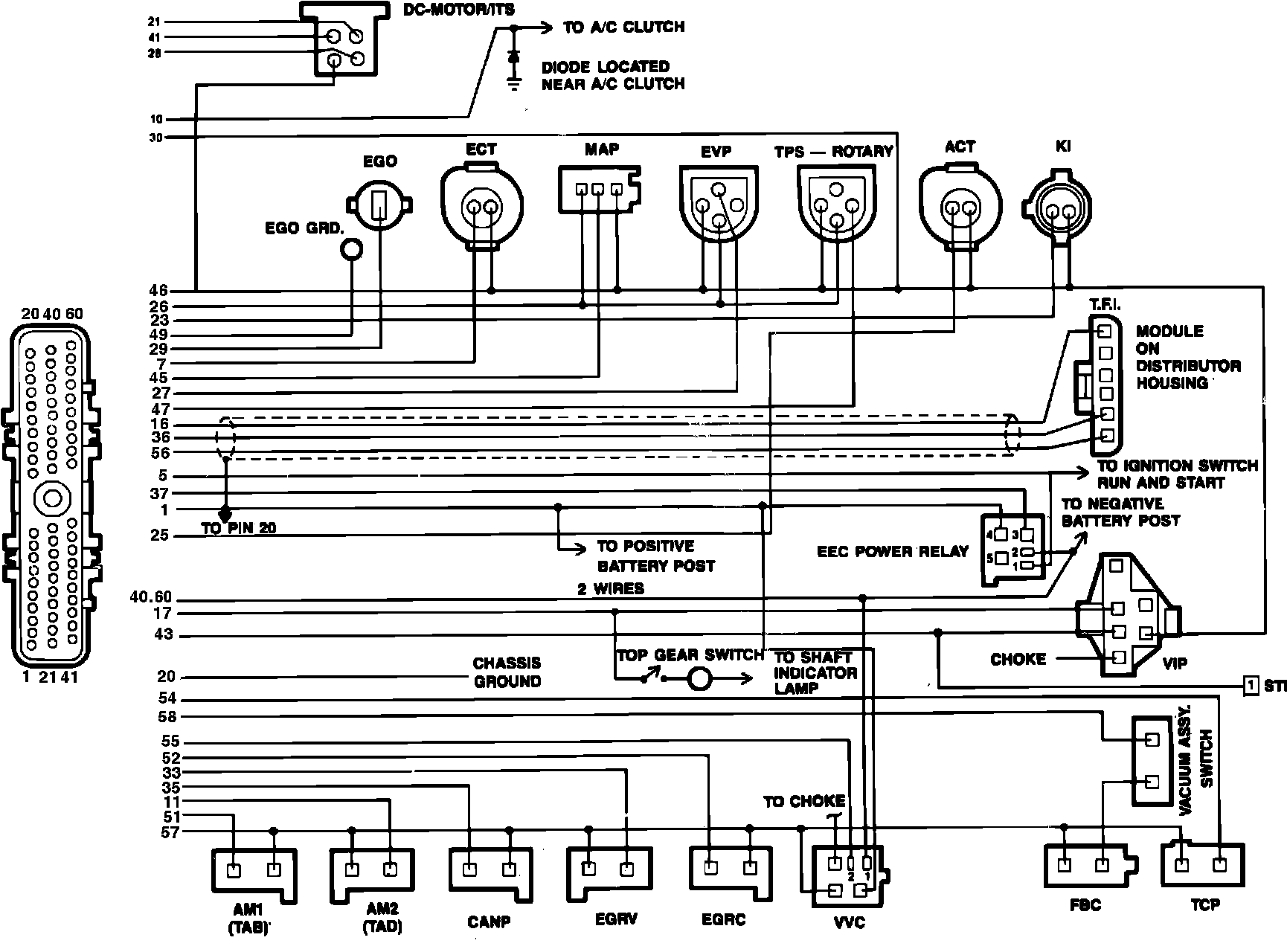

Fig. 38 EEC-IV wiring schematic. 1983 V6-171 w/ auto. trans.:
