Diesel Data: Automotive Repair
Home >> Ford Truck >> 1983 >> Ranger 2WD V6-171 2.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Component Tests and General Diagnostics >> Primary Circuit Tests >> Test 3, Wiring Harness

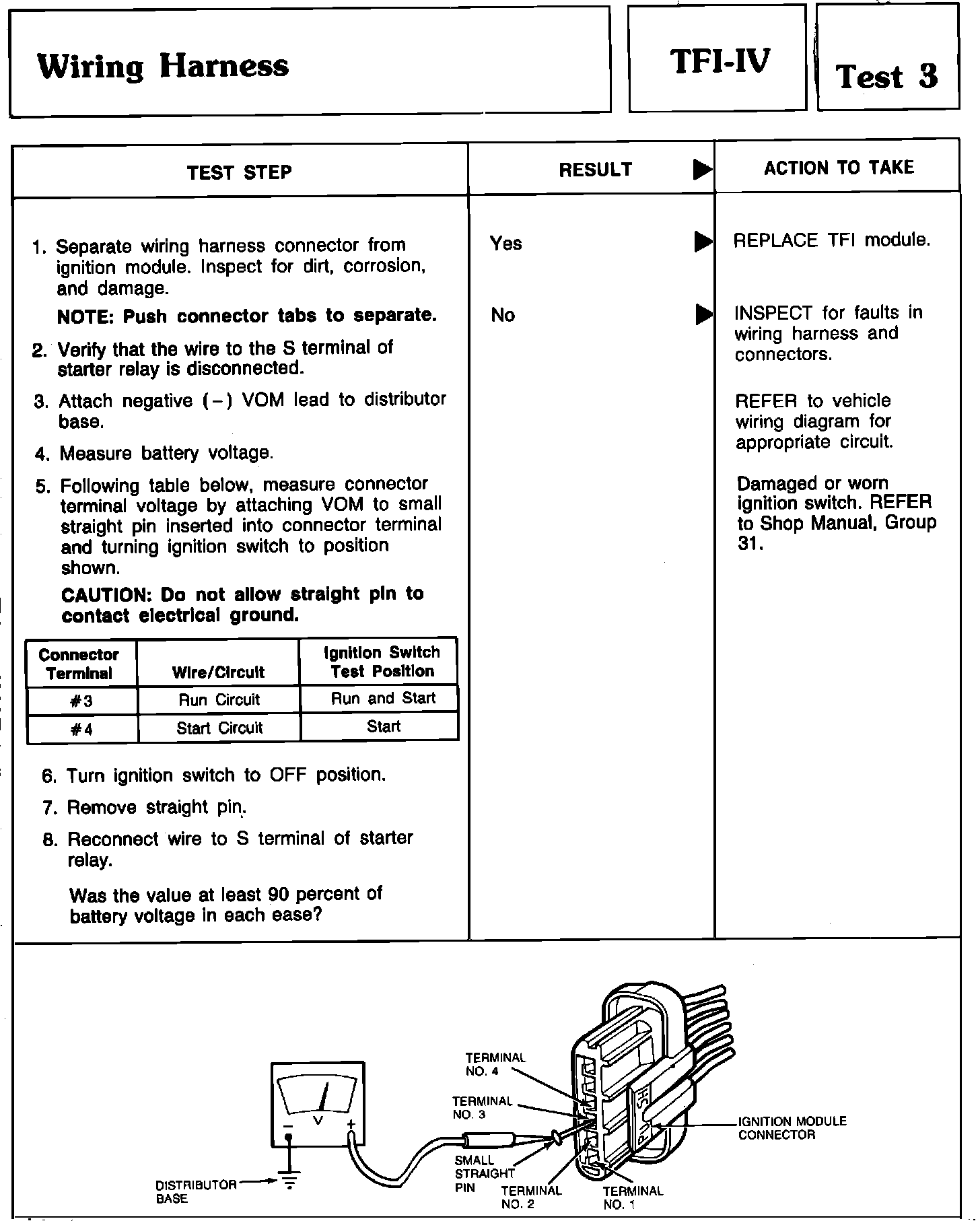

Test 3, Wiring Harness





*** UPDATED BY TSB #87-21-10
