Vacuum and Vapor Hose Diagrams
>>

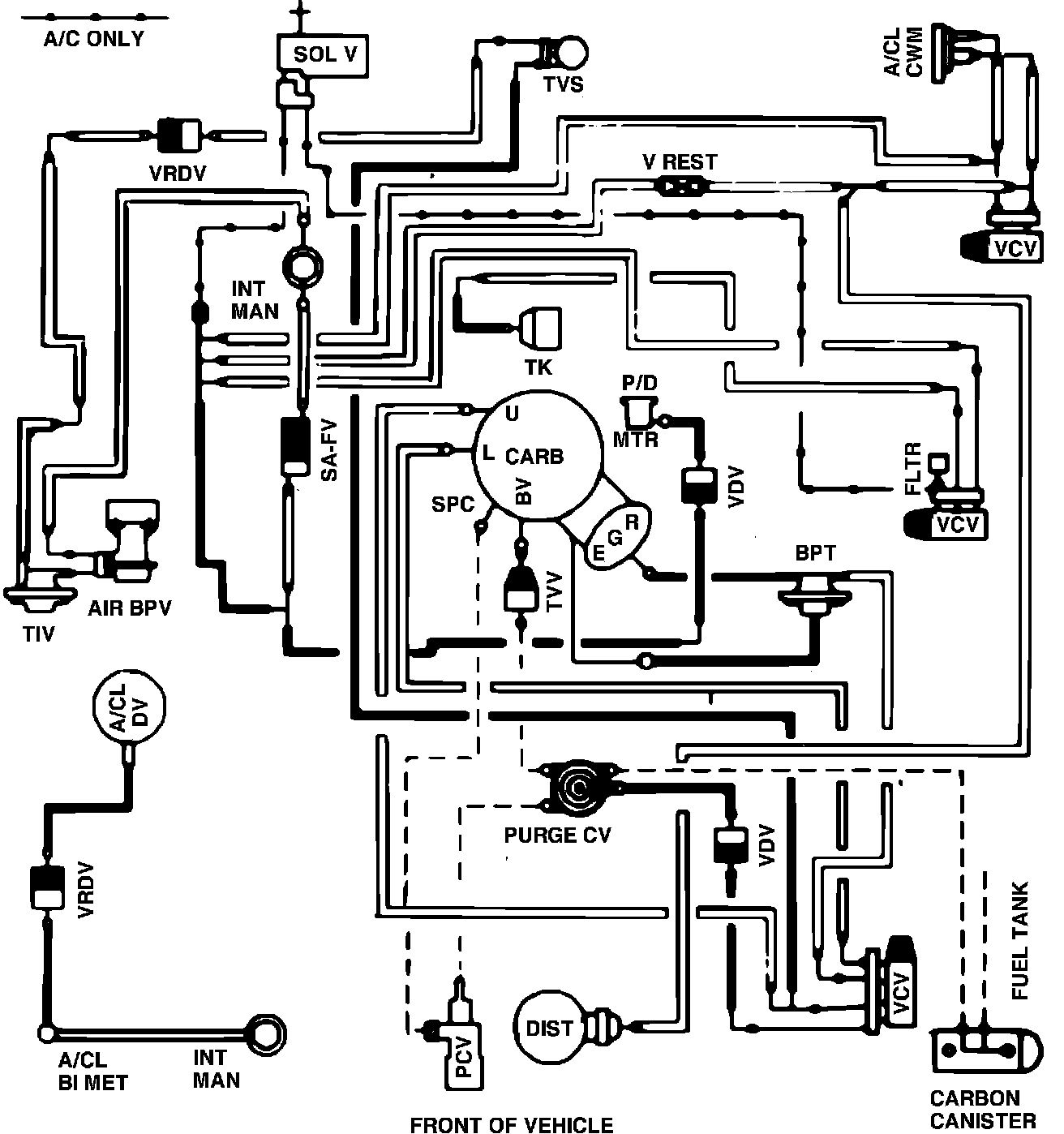

Fig. 1 Calib. Code 3-41D-R1
Fig. 1 Calib. Code 3-41D-R1
Fig. 1 Vacuum hose routing. 1983 4-122 calib. code 3-41D-R1:
