Fig. 4 Calib. Codes 3-41D-R11 & R12
Fig. 4 Calib. Codes 3-41D-R11 & R12

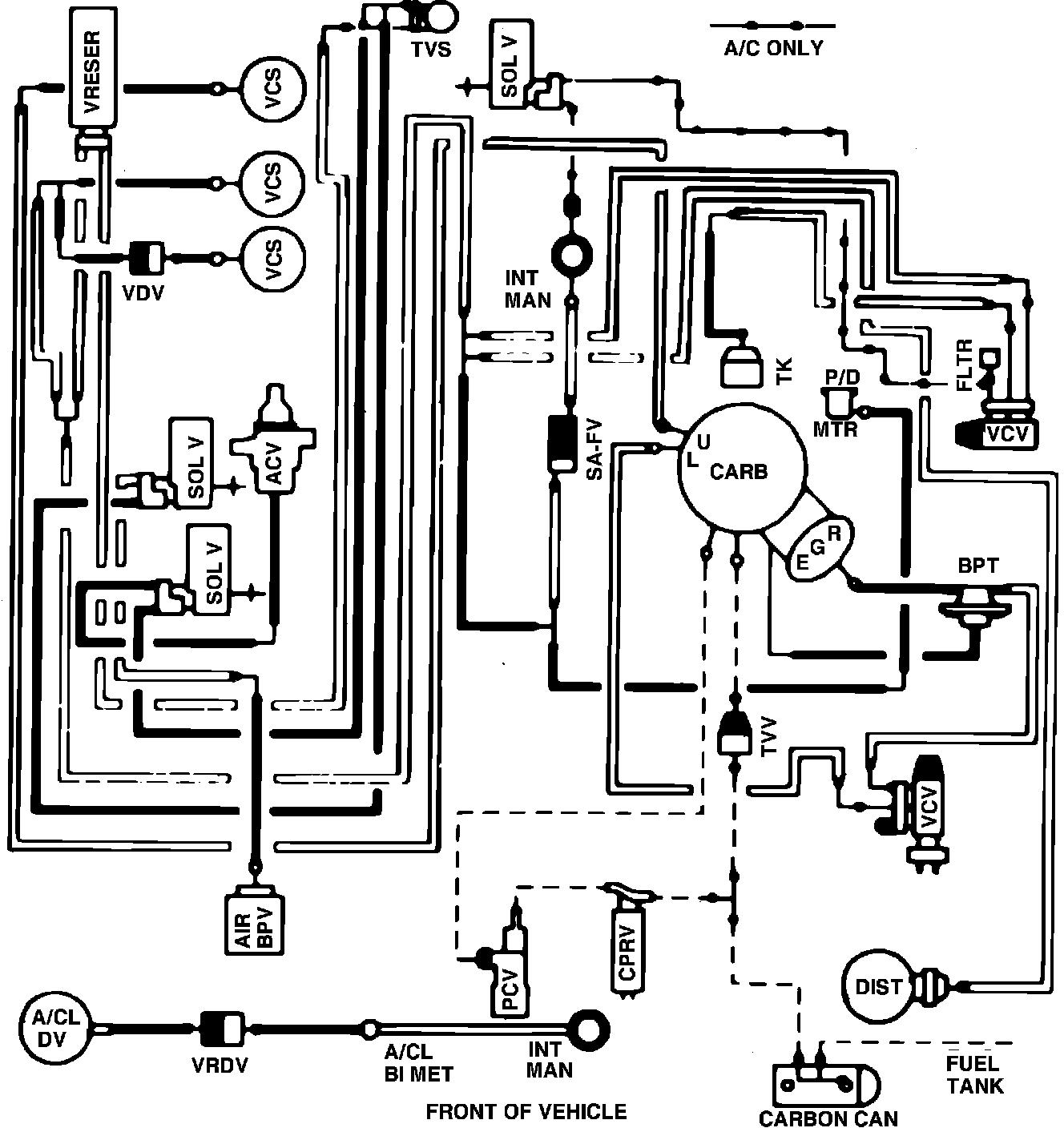

Fig. 4 Vacuum hose routing. 1983 4-122 calib. codes 3-41D-R11 & R12:
