Ford Truck
>>
1983
>>
Ranger 4WD L4-122 2.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Locations
>>
Engine Compartment Reference Diagrams
>>

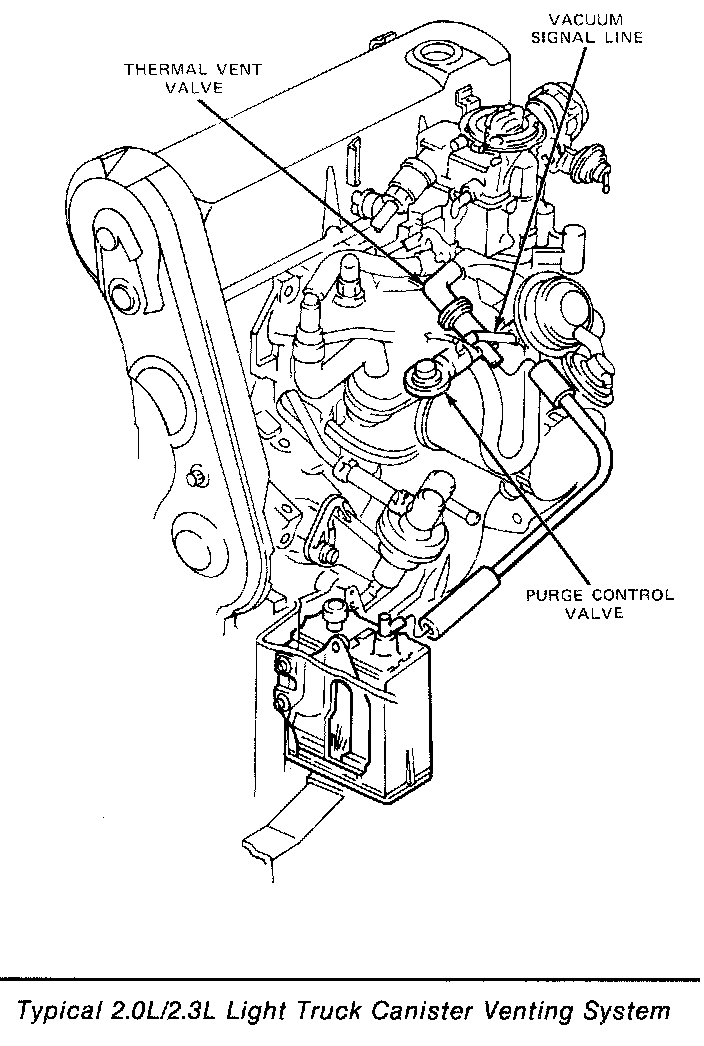

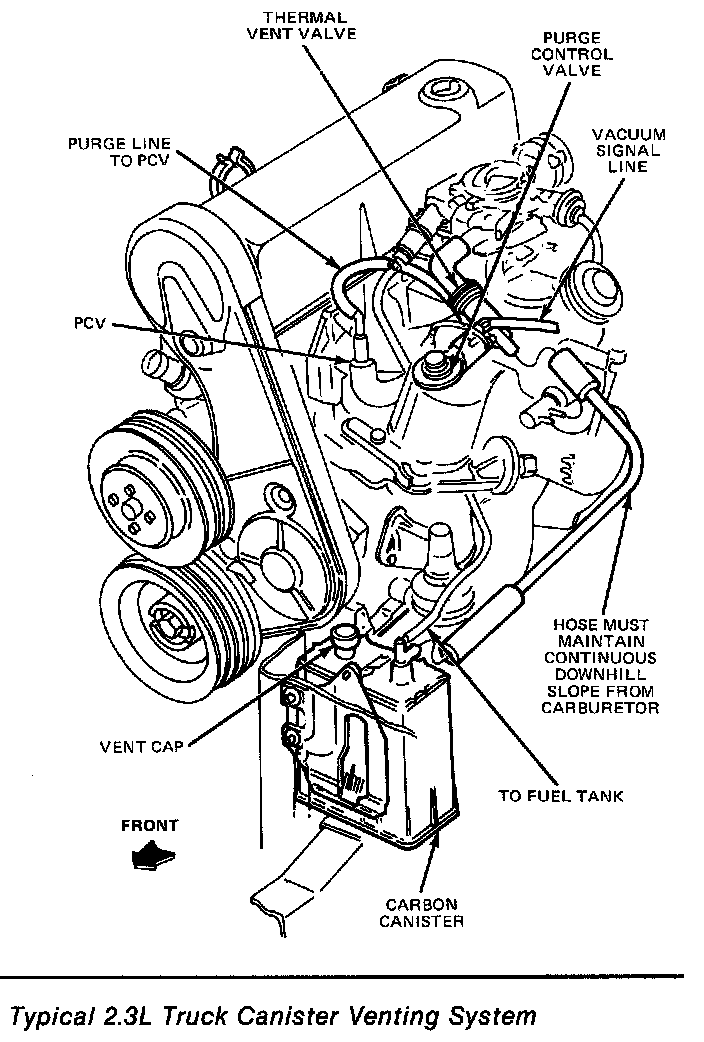

Evaporative Control System Components
Evaporative Control System Components
1982
1983
L-4 2.0/2.3 L
